In silico investigation of possible caffeine interactions with common inflammation-related targets


Lincon Fernandes de Lima Neto1, Ana Carolina Carnio Barruffini1, Douglas Vieira Thomaz2, Fábio Bahls Machado2, Isaac Yves Lopes de Macedo2

  Author Affiliations


Abstract

Caffeine (CA) is a methylxanthine alkaloid widely used in anti-inflammatory drug associations due to its vasoconstricting properties. Although CA is acknowledged to interact with a plethora of macromolecules in human organism, there was to the best of our knowledge, no survey regarding its possible interactions with common inflammation-related targets. Henceforth, this work was concerned in the investigation of CA possible interactions with cyclooxygenases-1 and -2 (COX-1 and COX-2), as well as prostaglandin H2 synthase-1 and leukotriene A4 hydrolase through in silico approaches. CA molecule was studied as a ligand whereas the ligand-macromolecules docking models were created through AutoDock Vina tools. Results showcased that, although the thermodynamic features of the best scoring models did not render enough information to affirm stable interaction between CA and the analyzed macromolecules, more studies are needed to shed light on the possible role of methylxanthines towards inflammation targets.

Keywords:

Methylxanthine, molecular modeling, inflammation, chemoinformatics, therapeutics.



Citation: de Lima Neto LF, Barruffini ACC, Thomaz DV, Machado FB, Macedo IYL. In silico investigation of possible Caffeine interactions with common Inflammation-related targets. J Appl Biol Biotech. 2019;7(05):31–34.


Copyright: Author(s). This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License, which permits non-commercial re-use, distribution, and reproduction in any medium, provided the original work is properly cited.

References

Esmaili Z, Heydari A, Effect of acute caffeine administration on PTZ-induced seizure threshold in mice: Involvement of adenosine receptors and NO-cGMP signaling pathway, Epilepsy Research, 2019;149:1-8. https://doi.org/10.1016/j.eplepsyres.2018.10.013

Grant SS, Magruder KP, FriedmanBH, Controlling for caffeine in cardiovascular research: A critical review, International Journal of Psychophysiology, 2018;133:193-201.

https://doi.org/10.1016/j.ijpsycho.2018.07.001

Tej GNVC, Nayak PK, Mechanistic considerations in chemotherapeutic activity of caffeine, Biomedicine & Pharmacotherapy, 2018;105:312-319.

https://doi.org/10.1016/j.biopha.2018.05.144

Tsunoda K, Sato A, Kurata R, Mizuyama R, Shimegi S,Caffeine improves contrast sensitivity of freely moving rats, Physiology & Behavior, 2019;199:111-117. https://doi.org/10.1016/j.physbeh.2018.11.014

Iris M, Tsou PS, Sawalha AH,Caffeine inhibits STAT1 signaling and downregulates inflammatory pathways involved in autoimmunity, Clinical Immunology, 2018;192:68-77.
https://doi.org/10.1016/j.clim.2018.04.008

Laskar AA, Alam MF, Ahmad M, Younus H,Kinetic and biophysical investigation of the inhibitory effect of caffeine on human salivary aldehyde dehydrogenase: Implications in oral health and chemotherapy, Journal of Molecular Structure, 2018;1157:61-68.
https://doi.org/10.1016/j.molstruc.2017.12.050

Padbury JF,Caffeine, inflammation, and BPD, The Journal of Pediatrics, 2011;158(1):A1.
https://doi.org/10.1016/j.jpeds.2010.11.042

Reef TA, Ghanem E,Caffeine: Well-known as psychotropic substance, but little as immunomodulator, Immunobiology, 2018;223(12):818-825.
https://doi.org/10.1016/j.imbio.2018.08.011

Sayin K, Üngörd\ü A,Investigation of anticancer properties of caffeinated complexes via computational chemistry methods, Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 2018;193:147-155. https://doi.org/10.1016/j.saa.2017.12.013

Wang W, Zhang W, Duan Y, Jiang Y, Zhang L, Zhao B, Tu P, Investigation of the binding sites and orientation of caffeine on human serum albumin by surface-enhanced Raman scattering and molecular docking, Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 2013;115:57-63. https://doi.org/10.1016/j.saa.2013.05.036

Amaro RE, Baudry J, Chodera J, Demir O, McCammon JA, Miao Y, Smith JC,Ensemble Docking in Drug Discovery, Biophysical Journal, 2018;114(10):2271-2278.
https://doi.org/10.1016/j.bpj.2018.02.038

García-NietoJ, L\ópez-Camacho E, García-Godoy MJ, Nebro AJ, Aldana-Montes JF,Multi-objective ligand-protein docking with particle swarm optimizers, Swarm and Evolutionary Computation, 2019;44:439-452. https://doi.org/10.1016/j.swevo.2018.05.007

Gupta M, Sharma R, Kumar A,Docking techniques in pharmacology: How much promising?, Computational Biology and Chemistry, 2018;76:210-217.
https://doi.org/10.1016/j.compbiolchem.2018.06.005

Salomon-Ferrer R, Case DA, Walker RC, An overview of the Amber biomolecular simulation package, WIRES Computational Molecular Science, 2013;3:198-210.
https://doi.org/10.1002/wcms.1121

Case DA, Cheatham TE, Darden IT, Gohlke H, Luo R, Merz KM, Onufriev JRA, Simmerling C, Wang B, Woods R, The Amber biomolecular simulation programs, Journal of Computational Chemistry, 2005;26:1668-1688. https://doi.org/10.1002/jcc.20290

Jiang X,Tsona NT,Tang S,Du L,Hydrogen bond docking preference in furans: OH⋯\p vs. OH⋯O, Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 2018;191:155-164.
https://doi.org/10.1016/j.saa.2017.10.006

Khorasani R,Fleming PE,On calculating HR bond enthalpies using computational data, Computational and Theoretical Chemistry, 2016;1096:89-93.
https://doi.org/10.1016/j.comptc.2016.09.033

Kumar SP,PLHINT: A knowledge-driven computational approach based on the intermolecular H bond interactions at the protein-ligand interface from docking solutions, Journal of Molecular Graphics and Modelling, 2018;79:194-212. https://doi.org/10.1016/j.jmgm.2017.12.002

Lynch DE,Reeves CR,Statistical analysis of the effect of a single OH hydrogen-bonding interaction on carbonyl bond lengths, Journal of Molecular Structure, 2019;1180:158-162.
https://doi.org/10.1016/j.molstruc.2018.11.100

Zhao H,Tang S,Du L,Hydrogen bond docking site competition in methyl esters, Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 2017;181:122-130.
https://doi.org/10.1016/j.saa.2017.03.038

Cosconati S, Forli S, Perryman AL, Harris R, Goodsell DS, Olson AJ, Virtual Screening with AutoDock: Theory and Practice. Expert Opinion Drug Discovery, 2010;5(6):597-607.
https://doi.org/10.1517/17460441.2010.484460

Meng X, Zhang H, Mezei M, Cui M, Molecular Docking: A powerful approach for structure-based drug discovery, Current Computer Aided Drug Design,2011;7(2): 146-157.
https://doi.org/10.2174/157340911795677602

Morris GM, Lim-Wilby M, Molecular Docking, Methods Molecular Biology, 2008;443:365-382.
https://doi.org/10.1007/978-1-59745-177-2_19

Wu MY, Dai DQ, Yan H,PRL-Dock: protein-ligand docking based on hydrogen bond matching and probabilistic relaxation labeling, Proteins,2012;80(9):2137-53.
https://doi.org/10.1002/prot.24104

/
/
/
/
/
/
/
/
/
/
/
/
/
/

1. INTRODUCTION

Caffeine (CA) is a methylxanthine alkaloid whose stimulating activities find numerous uses in human therapeutics. This compound is usually associated with non-steroidal anti-inflammatory drugs due to its vasoconstricting properties, which are promoted through CA antagonistic features over diverse cellular receptors. Nonetheless, the methylxanthine moiety (Fig. 1A and B) present in CA allows its binding with adenosine receptors (A1, A2A, A2B, and A3) due to structural similarities with the physiological ligand. However, this molecule is known to also bind antagonistically with inositol triphosphate, glycine, ryanodine, and other receptors, which outlines the variety of targets prone to bound with CA [14].

Although literature reports concerning CA binding to the aforementioned receptors are numerous, there is a significant lack of reports regarding CA binding studies with inflammatory-response targets, which evidences the importance of further investigating this molecule in order to elucidate its therapeutic potential [510].

Considering studies regarding ligand-receptor binding kinetics and thermodynamics, in silico approaches offer a cheap and valuable alternative for preliminary screenings concerning chemical compounds bioactivity, moreover, these methods are also heavily used for drug discovery. In this context, molecules such as CA might be freely studied under computational strategies without the need of in vivo or in vitro assays in the first investigational steps. Nonetheless, semi-empirical approaches, such as molecular mechanics, are valuable in silico tools, which further increase their appeal in docking analysis. Under this light, the assessment of a small molecule proneness to interact with selected receptors is easily feasible by docking studies and has low computational cost [1113].

Considering the importance of better understanding ligand-receptor features and its implications on the therapeutic applicability of small molecules, this report is aimed to explore CA interaction kinetics and thermodynamics toward the most common targets related to inflammatory response in humans. Henceforth, in silico methods based on semi-empirical approaches were used to investigate CA interaction to cyclooxygenase (COX) isoforms (COX-1 and COX-2), as well as prostaglandin H2 synthase-1 and leukotriene A4 hydrolase.


2. EXPERIMENTAL

2.1. In Silico Methods

CA (1,3,7-trimethylpurine-2,6-dione) structure was minimized through the software Chimera version 1.13 coupled to Molecular Modeling Toolkit and AMBER toolkit 4.0 prior docking studies. The same software was used to edit protein units retrieved from Protein DataBank (PDB). Moreover, the software Python Molecular Viewer version 1.5.6 was used to evaluate torsion-prone regions in CA molecule, and the docking models were conducted using AutoDock Vina and AutoDock Tools version 1.5.6. The docking model herein employed is based on a flexible ligand and a rigid receptor, therefore configuring itself in a semi-flexible model [14,15].

2.1. COXs Structures

Human COX-1 (PDB entry: 3N8X), COX-2 (PDB entry: 5F19), prostaglandin H2 synthase-1 (PDB entry: 1CQE), and leukotriene A4 hydrolase (PDB entry: 3FTS) were used in this study.


3. RESULTS AND DISCUSSION

3.1. CA and COX-1 Interaction

In order to explore possible CA and COX-1 interactions, a docking study was performed. Figure 2 evidence the highest scoring model.

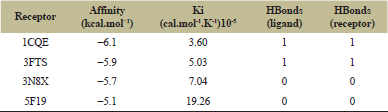

Table 1: Table of thermodynamical properties calculated for the lowest energy conformation in the docking of CA-1CQE, CA-3FTS, CA-3N8X, and CA-5F19.

[Click here to view]

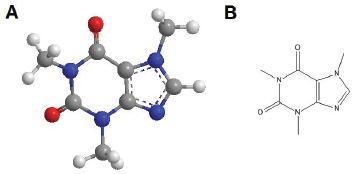

Figure 1: (A) Tri-dimensional representation of CA chemical structure. (B) CA chemical structure. Data processed in Chem3D Pro® software.

[Click here to view]

Results evidenced that CA highest scoring docking model presented no hydrogen bonds; however, the above than narrow distances found between CA and COX-1 electron-donor and electron-accepting moieties suggest possible intermolecular interaction [1620].

3.2. CA and COX-2 Interaction

Concerning possible CA and COX-2 interactions, Figure 3 depicts the highest scoring model.

Regarding COX-2, CA highest scoring model did not present any hydrogen bonds (Figure 3). Although hydrogen bonds are nonetheless responsible for stable interactions between molecules, as well as intramolecular cohesion, their presence alone is not an indication of effective docking. In this context, other aspects such as torsional energies related to electronegative moieties, as well as molecular packaging, steric hindrance, and thermodynamic unbalance may turn hydrogen bond-rich models unfeasible. Henceforth, the first model presented highest score despite no strong bonds being detected [2124].

3.3. CA and Prostaglandin H2 Synthase-1 Interaction

CA possible interaction with prostaglandin H2 synthase-1 had its highest scoring model presented in Figure 4.

Figure 2: Docking depiction of the highest scoring model for CA-COX-1 interaction. All data gathered through Chimera software version 1.13.

[Click here to view]

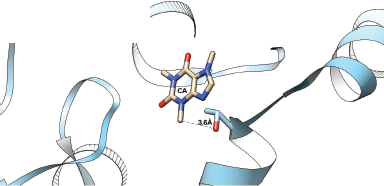

Figure 3: Docking depiction of the highest scoring model for CA-COX-2 interaction. All data gathered through Chimera software version 1.13.

[Click here to view]

Prostaglandin H2 synthase-1 and CA highest scoring model evidenced that two ligand sites are hydrogen bond donors to one acceptor site in the macromolecule (Fig. 4). This result is remarkable since the energy values for the depicted model when associated to hydrogen bond multiplicity imply nonetheless thermodynamic feasibility of ligand-macromolecule interaction. To the best of our knowledge, there was no report concerning the possible interaction of CA and prostaglandin H2 synthase-1, henceforth, the data herein depicted, although premature, may direct further investigations [2124].

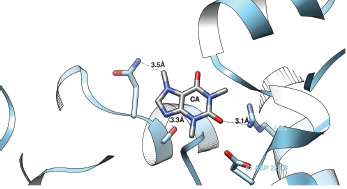

Figure 4: Docking depiction of the highest scoring model for CA-Prostaglandin H2 synthase-1 interaction. All data gathered through Chimera software version 1.13.

[Click here to view]

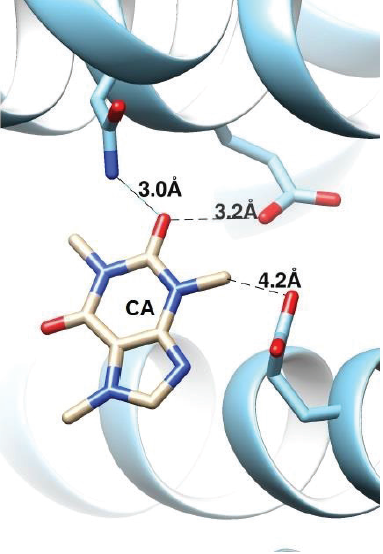

Figure 5: Docking depiction of the highest scoring model for CA-Leukotriene A4 hydrolase interaction. All data gathered through Chimera software version 1.13.

[Click here to view]

3.4. CA and Leukotriene A4 Hydrolase Interaction

The possible interaction of CA and leukotriene A4 hydrolase was also investigated. Figure 5 depicts the highest scoring model.

Results evidenced that leukotriene A4 hydrolase and CA may possibly interact through 3 hydrogen bond donor sites in the ligand and 2 receptor sites in the macromolecule (Figure 5). Results herein depicted are nonetheless relevant, since to the best of our knowledge, no similar study concerning CA docking models with the aforementioned receptors was performed. Moreover, the amount of hydrogen bonds associated to the thermodynamic feasibility of docking may imply possible interaction between CA and leukotriene A4 hydrolase. Furthermore, other reports evidence the relevance of hydrogen bonds abundance to successful models [1620].

3.5. Interaction Constants

Gibbs free energy values give insights about the proneness of an interaction between ligand-receptor when comparing different receptors to a common ligand. Thermodynamics postulates that an interaction constant is directly linked to the interactions affinity through the following equation:

G = RT ln Kb ( 1 )

Where ΔG is the interaction affinity, R is the gas constant, and T is the temperature. This equation can be derived in order to yield the interaction constant Ki.

Ki = e G RT ( 2 )

Where e is the Euler’s number.

When considering ∆G values in molecular docking poses, higher scoring models possess smaller values of this parameter, while their Ki follow the same trend. In this sense, Ki values did corroborate to ∆G in the calculated models. However, since molecular docking is prone to many false positives, more studies are needed to further investigate the findings of this work.


4. CONCLUSION

The present work reported an investigation of CA potential interaction with macromolecules usually involved in inflammation. Although the thermodynamic features of the best scoring models did not render enough information to affirm stable interaction between CA and the analyzed macromolecules, more studies are needed to shed light on the possible role of methylxanthines towards inflammation targets.


CONFLICT OF INTEREST

Authors declare no conflict of interest.


REFERENCES

1. Esmaili Z, Heydari A. Effect of acute caffeine administration on PTZ-induced seizure threshold in mice: Involvement of adenosine receptors and NO-cGMP signaling pathway. Epilepsy Res 2019;149:1–8. CrossRef

2. Grant SS, Magruder KP, Friedman BH. Controlling for caffeine in cardiovascular research: a critical review. Int J Psychophysiol 2018;133:193–201. CrossRef

3. Tej GNVC, Nayak PK. Mechanistic considerations in chemotherapeutic activity of caffeine. Biomed Pharmacother 2018;105:312–9. CrossRef

4. Tsunoda K, Sato A, Kurata R, Mizuyama R, Shimegi S. Caffeine improves contrast sensitivity of freely moving rats. Physiol Behav 2019;199:111–7. CrossRef

5. Iris M, Tsou PS, Sawalha AH. Caffeine inhibits STAT1 signaling and downregulates inflammatory pathways involved in autoimmunity. Clin Immunol 2018;192:68–77. CrossRef

6. Laskar AA, Alam MF, Ahmad M, Younus H. Kinetic and biophysical investigation of the inhibitory effect of caffeine on human salivary aldehyde dehydrogenase: Implications in oral health and chemotherapy. J Mol Struct 2018;1157:61–8. CrossRef

7. Padbury JF. Caffeine, inflammation, and BPD. J Pediatr 2011;158(1):A1. CrossRef

8. Reef TA, Ghanem E. Caffeine: well-known as psychotropic substance, but little as immunomodulator. Immunobiology 2018;223(12):818–25. CrossRef

9. Sayin K, Üngördü A. Investigation of anticancer properties of caffeinated complexes via computational chemistry methods. Spectrochim Acta Part A Mol Biomol Spectroscopy 2018;193:147–55. CrossRef

10. Wang W, Zhang W, Duan Y, Jiang Y, Zhang L, Zhao B, et al. Investigation of the binding sites and orientation of caffeine on human serum albumin by surface-enhanced Raman scattering and molecular docking. Spectrochim Acta Part A Mol Biomol Spectroscopy 2013;115:57–63. CrossRef

11. Amaro RE, Baudry J, Chodera J, Demir O, McCammon JA, Miao Y, et al. Ensemble docking in drug discovery. Biophys J 2018;114(10):2271–8. CrossRef

12. García-Nieto J, López-Camacho E, García-Godoy MJ, Nebro AJ, Aldana-Montes JF. Multi-objective ligand-protein docking with particle swarm optimizers. Swarm and Evol Comput 2019;44:439–52. CrossRef

13. Gupta M, Sharma R, Kumar A. Docking techniques in pharmacology: How much promising? Comput Biol Chem 2018;76:210–7. CrossRef

14. Salomon-Ferrer R, Case DA, Walker RC. An overview of the Amber biomolecular simulation package. WIRES Comput Mol Sci 2013;3:198–210. CrossRef

15. Case DA, Cheatham TE, Darden IT, Gohlke H, Luo R, Merz KM, et al. The Amber biomolecular simulation programs. J Comput Chem 2005;26:1668–88. CrossRef

16. Jiang X, Tsona NT, Tang S, Du L. Hydrogen bond docking preference in furans: OH···π vs. OH···O. Spectrochim Acta Part A Mol Biomol Spectroscopy 2018;191:155–64. CrossRef

17. Khorasani R, Fleming PE. On calculating HR bond enthalpies using computational data. Comput Theor Chem 2016;1096:89–93. CrossRef

18. Kumar SP. PLHINT: A knowledge-driven computational approach based on the intermolecular H bond interactions at the protein-ligand interface from docking solutions. J Mol Graph Model 2018;79:194–212. CrossRef

19. Lynch DE, Reeves CR. Statistical analysis of the effect of a single OH hydrogen-bonding interaction on carbonyl bond lengths. J Mol Structure 2019;1180:158–62. CrossRef

20. Zhao H, Tang S, Du L. Hydrogen bond docking site competition in methyl esters. Spectrochim Acta Part A Mol Biomol Spectroscopy 2017;181:122–30. CrossRef

21. Cosconati S, Forli S, Perryman AL, Harris R, Goodsell DS, Olson AJ. Virtual screening with AutoDock: theory and practice. Expert Opin Drug Discov 2010;5(6):597–607. CrossRef

22. Meng X, Zhang H, Mezei M, Cui M. Molecular Docking: a powerful approach for structure-based drug discovery. Curr Comput Aided Drug Design 2011;7(2):146–57. CrossRef

23. Morris GM, Lim-Wilby M. Molecular docking. Methods Mol Biol 2008;443:365–82. CrossRef

24. Wu MY, Dai DQ, Yan H. PRL-Dock: protein-ligand docking based on hydrogen bond matching and probabilistic relaxation labeling. Proteins 2012;80(9):2137–53. CrossRef
