1. INTRODUCTION
The carob tree (Ceratonia siliqua L.) is one of the most important ecological and socio-economic phylogenetic resources in Morocco. It is an endemic species of the Mediterranean basin that has numerous beneficial qualities and is the subject of numerous studies. Carob is highly valued in Mediterranean countries for its ornamental, nutritional and medicinal utility [1]. It is a long-lived evergreen and thermophilous tree that belongs to the family Fabaceae and forms an important part of Mediterranean vegetation [2]. The tree is well adapted to mild and dry areas with poor soils. Moreover, it is well known for its ability to adapt to adverse conditions such as drought, alkaline soils, heat, and dry atmosphere. These characteristics make this species widely used to prevent soil erosion and rehabilitation of degraded land in most Mediterranean countries [3].
Vegetative propagation is a promising method widely used for the mass production of selected and genetically uniform plants. However, the propagation of carob trees by cuttings is relatively uncommon. According to Hartmann and Kester [4], carob is among the most difficult species to root from cuttings, which restricts the mass production of selected elite genotypes using this method. While the use of exogenous auxins accelerates root initiation and increases the number and percentage of rooted cuttings, its proper application, availability, environmental impact, and costliness necessitate the development of an alternative way to stimulate carob cuttings to produce adventitious roots.
Since seaweed resources have been widely used in agriculture and horticulture, research on the benefits of seaweed products or macroalgae has been reported over the last 50 years [5]. Seaweed extracts could be a natural biostimulant treatment for improving plant growth and crop quality. Various seaweed extracts have been applied to several plants at different physiological growth stages and demonstrated a positive effect on seed germination, seedling growth, and enhanced physiological and biochemical activities on plants [6-7]. Seaweed extracts have been used to promote resistance to many diseases, increase plant resistance to drought, salinity, and heat stress, protect plants from aging by strengthening and supporting plant cells — especially fungal diseases and nematodes [8-10]. Several studies have shown that liquid extracts obtained from algae contain growth hormones (IAA and indole-3-butyric acid [IBA]), cytokinins, trace elements (Fe, Cu, Zn, Co, Mo, Mn, and Ni), vitamins, and amino acids which make these extracts applied in foliar sprays for several vegetative crops [11-13]. Recently, researchers proved that seaweed-based fertilizers are better and more economical than other fertilizers [14].
The present work aimed to evaluate the effect of U. rigida extract on the rooting capacity of carob hypocotyl cuttings. The effect of IBA was also studied.
2. MATERIALS AND METHODS
2.1. Seaweed Collection
Seaweed (Ulva rigida C. Agardh) was collected froman intertidal rocky shore zone in Azla (Tétouan, Mediterranean Sea, Northern Morocco: 35° 32.2 N, 05° 14.7 W) at a depth of 0.5–1 m during July and August. First, the algae were washed with sea water to remove macroscopic epiphytes and sand particles and subsequently the algae were again washed with tap water to remove the adherent salt. For 4 days, the samples were air dried at 25°C, followed by thermostat drying at 60°C for 12 h. The seaweed was washed with seawater and brushed extensively.
2.2. Preparation of Liquid Seaweed Extract (LSE)
First, the dried seaweed was crushed manually and powdered with an electric grinder. The seaweed powder was then diluted with sterile distilled water at a ratio of 10: 100 (w/v) and then heated in a water bath at 60°C for 20 min. Second, the extracts were filtered on filter paper and sterile Millipore (0.45 mm). The resulting extract was taken as a 100% concentration of the LSE and stored at 4°C for further experimental studies. Different concentrations of LSE were prepared (1, 2, and 4%) [15].
2.3. Experimental Design and Treatments
The carob seeds were sacrificed by sulfuric acid (95%) for 15 min and subsequently the seeds were disinfected with 0.01% of mercury chloride (HgCl2) for 30 min. Seeds should be rinsed in sterile distilled water (SDW) 3 times before being germinated on jars containing SDW solidified with 0.7% agar and autoclaved at 1 bar and 120°C for 20 min. The cultures were incubated in the light in a growth chamber at 25 ± 2°C and 2000 lux for 16 h, with light provided by white fluorescent lamps (Philips TL MRS 40 W/54-765)/8 h. After 2 weeks of in vitro germination, hypocotyl cuttings were taken from 10-day-old seedlings by cutting the stem above the root collar.
Different concentrations of LSE (1, 2, and 4%) were added to agar water and used as the base medium. The explants were subcultured onto the prepared media and maintained in a culture chamber at 25 ± 2°C and 2000 lux for 16 h, with light provided by white fluorescent lamps (Philips TL MRS 40 W/54-765)/8 h.
2.4. Effect of IBA Treatment and Seaweed Extract on Rooting
To improve the root response, the basal ends of the hypocotylidal sections were immersed in a solution containing IBA at three different concentrations (0.5, 1, and 2 mgL-1) for 12 h in darkness at 5°C, the cuttings were subsequently rooted in an agar mediums supplemented with extract of U. rigida. Agar medium without seaweed extract was used as a control.
Hypocotyl cuttings were grown for 4 weeks in a growth chamber under the conditions described for seed germination.
2.5. Statistical Analysis
Each treatment was repeated 3 times, with 30 cuttings per replicate. After 4 weeks of culture, the following carob tree growth parameters were measured: Plant height, stem length, number of internodes, number of leaves, number of buds, percentage of rooting, number of roots per plant, and roots length. The data were analyzed using ANOVA tests and the means were compared using Duncan’s post hoc test at the 5% probability level.
3. RESULTS
3.1. Effect of U. rigida Extract on the Growth of Carob Cutting
The results presented in Table 1 indicate that applying seaweed extract has a positive effect by stimulating the growth parameters of carob hypocotyl cuttings. Thus, the cuttings cultured with U. rigida extract had a vigorous and qualitative appearance when compared to controls.
Table 1: Effects of Ulva rigida extracts on the growth of C. siliqua. Mean values of plant height, stem length, number of internodes, number of leaves, and number of buds after 4 weeks of culture.
| LSE concentration (%) | Plant height (cm) | Stem length (cm) | Number of internodes | Number of leaves | Number of buds |
|---|---|---|---|---|---|
| Control (0) | 5.80±0.21c | 1.87±0.16b | 1.83±0.15c | 3.67±0.29c | 0.25±0.15b |
| 1 | 6.96±0.22b | 3.10±0.16a | 2.62±0.15b | 4.82±0.30b | 1.89±0.15a |
| 2 | 7.63±0.22a | 3.43±0.16a | 2.36±0.15ab | 4.66±0.29b | 1.633±0.15a |
| 4 | 7.82±0.22a | 3.21±0.16a | 2.89±0.15a | 5.78±0.31a | 1.821±0.15a |
Means followed by the same letter within a treatment group were not significantly different at P<0.05 based on Duncan’s multiple range tests. LSE: Liquid seaweed extract
The data presented in Figure 1 demonstrate that all examined concentrations of U. rigida extract had a significant effect on plant height, stem length, number of leaves, and number of internodes. Moreover, the stimulation of bud formation was remarkably higher compared to untreated control. The cuttings continued to grow on culture medium for over 4 weeks in the presence of U. rigida extracts. The most important stimulatory effect of U. rigida extract was observed using a concentration of 4% when compared to the untreated control.
 | Figure 1: Effect of Ulva rigida extracts on the growth of carob plants. Mean values of plant height, stem length, number of internodes, number of leaves, and number of buds after 4 weeks of culture. Means followed by the same letter within a treatment group werenot significantly different at P < 0.05 using Duncan’s multiple range tests. LSE: Liquid seaweed extract. [Click here to view] |
3.2. Effect of U. rigida Extracts on the Rooting of Carob Cuttings
Root formation in carob cuttings was also enhanced by U. rigida extracts under in vitro conditions. Based on the results presented in Table 2, ANOVA revealed significant differences between experimental treatments with seaweed extract in the culture medium for the percentage of rooting, number of roots, and root length. Figure 2 demonstrates the favorable effect of using seaweed extract at a 4% concentration on rooting (83.33%) when compared to the control (30%).

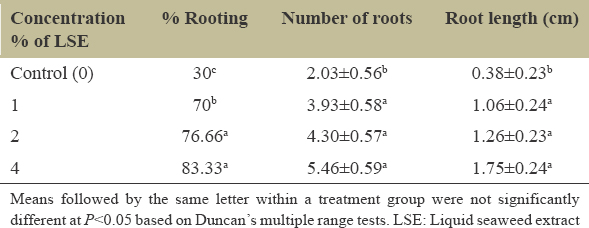

Table 2: Effects of U. rigida extracts on the rooting of carob plants. Mean values of rooting rate, number of roots, and root length after 4 weeks of culture.
| Concentration % of LSE | % Rooting | Number of roots | Root length (cm) |
|---|---|---|---|
| Control (0) | 30c | 2.03±0.56b | 0.38±0.23b |
| 1 | 70b | 3.93±0.58a | 1.06±0.24a |
| 2 | 76.66a | 4.30±0.57a | 1.26±0.23a |
| 4 | 83.33a | 5.46±0.59a | 1.75±0.24a |
Means followed by the same letter within a treatment group were not significantly different at P<0.05 based on Duncan’s multiple range tests. LSE: Liquid seaweed extract
 | Figure 2: Effect of Ulva rigida extracts on the rooting of carob plants. Mean values of rooting rate, number of roots, and root length after 4 weeks of culture. Means followed by the same letter within a treatment group were not significantly different at P < 0.05 based on Duncan’s multiple range tests. LSE: Liquid seaweed extract. [Click here to view] |
3.3. Effect of IBA Treatment and Seaweed Extract on Rooting
The effect of MG medium supplemented with different concentrations of U. rigida extracts combined with pretreatment using IBA at different concentrations of (0.5, 1, and 2 mgL-1) on plant rooting was examined [Table 3]. After 4 weeks of culture, the optimal results in terms of plant length, number of roots, and length of root were provided with media containing a high concentration of U. rigida extract (4%) and a high concentration of IBA (2 mgL-1). The data presented in Figure 3 demonstrates that the rooting capacity of carob cuttings was remarkably higher with the combination treatments involving exogenous IBA and U. rigida extract in culture medium when compared to the non-treated ones [Figure 4].
Table 3: Effects of different concentrations of IBA treatment combined with the use of Ulva rigida liquid seaweed extract in medium cultures on plant height, number of roots, and root length of carob plants after 4 weeks of culture.
| Medium | IBA concentration (mgL–1) | Plant height (cm) | Number of roots | Root length (cm) |
|---|---|---|---|---|
| MG | 0 | 5.33±0.19b | 1.24±0.42c | 0.33±0.08c |
| 0.5 | 5.78±0.22a | 3.11±0.48b | 0.37±0.09bc | |
| 1 | 5.59±0.20a | 3.53±0.44a | 0.55±0.09b | |
| 2 | 5.63±0.20a | 3.96±0.44a | 0.67±0.09a | |
| MG + 4% of LSE | 0 | 6.70±0.22b | 4.88±0.49c | 0.74±0.10c |
| 0.5 | 7.15±0.20a | 5.66±0.44b | 0.88±0.09bc | |
| 1 | 7.86±0.22a | 7.64±0.49a | 1.03±0.10b | |
| 2 | 8.02±0.22a | 8.28±0.49a | 1.49±0.10a |
Means followed by the same letter within a treatment group werenot significantly different at P < 0.05 based on Duncan’s multiple range tests. MG: Distilled water solidified with 7.0 gL-1 agar, LSE: Liquid seaweed extract
 | Figure 3: Effect of different concentrations of IBA hormone combined with Ulva rigida liquid seaweedextract in medium culture on the number of roots and root length of carob plants after 4 weeks of culture. Means followed by the same letter within a treatment group werenot significantlydifferent at P < 0.05 based on Duncan’s multiple range tests. MG: Distilled water solidified with 7.0 gL-1 agar– LSE: Liquid seaweed extract. [Click here to view] |
 | Figure 4: (a-b-d) Abundant rooting after 4 weeks of cultivation in agar medium contains different concentrations of liquid seaweed extract (1; 2; 4%). (c) Shoots remain uprooted after 4 weeks in agar media. (e and f) Abundant rooting with longer roots after 4 weeks of culture in agar media contain 4% of seaweed liquid extract associated by treatment with 2 mgL-1 of IBA. [Click here to view] |
4. DISCUSSION
The application of U. rigida extract significantly enhanced the growth, and rooting capacity of carob hypocotyl cuttings. These results are in agreement with those of previous studies using seaweed extract to stimulate the growth of crops such as mung bean [16], cucumber [17], Sour Orange [18], and lettuce [19]. A chemical analysis of algae and their extracts noted the presence of carbohydrates, macro and microelements, phenylacetic acid, vitamins, and plant growth regulators such as auxin and cytokinins [20-23]. This leads to growth stimulation and acceleration in the roots, and — when combined with cytokinins — produces a larger root mass [24]. A larger root mass provides better water and mineral uptake as well as healthier, more stress-resistant plants [25]. Seaweed extracts are rich in cytokinins that stimulate rapid cell division and the production of new cell walls.
Furthermore, the application of IBA improved the rooting percentage and root number when compared to untreated control. IBA auxin was appropriate for the effective rooting of cuttings at different concentrations. However, the previous reports on carob micropropagation demonstrated that using an IBA-enriched MS medium can provide rapid root initiation [26,27]. The efficacy of IBA in different plant species compared to other auxins in inducing rooting of shoots has also been reported [28,29]. Irrespective of the IBA treatment, the presence of U. rigida extracts in media served a crucial role in the promotion of rooting in all treatments. The results indicate that growth media type played a vital role in the rooting of cuttings. The results of the present study indicate that the use of U. rigida extracts in a culture medium combined with IBA pretreatments caused a significant increase in number roots and root length than when compared to the treatment of hypocotyl bases with IBA alone. The beneficial effect of natural molecules on Soil-Plant Systems was shown by El Boukhari et al. [30] and Kurepin et al. [31]. The latter author reported that the release of secondary metabolites and their assimilation was much more important as naturally biostimulators.
Additional studies of various algae have shown that the stimulating effect of root growth was more pronounced when extracts were applied at an early stage of corn growth and exhibited a response similar to that of auxin. Using algae extracts as a biostimulant can affect root development by improving lateral root formation and increasing total root system volume [32-35].
In the present in vitro study, no contamination was recorded. It is also thought that seaweed extract helps protect cuttings against bacterial or fungal infections and keeps plants healthy and strong.
In addition to its rooting difficulties, the carob tree is a recalcitrant plant. Thus, scientific research is currently being conducted to increase carob tree horticulture and improve conditions for its rooting. Notably, several studies have been conducted in this context to improve the rooting capacity of carob (Ceratonia siliqua L.) cuttings using mycorrhizal fungi and ultrasonic [36,37].
Applying extract derived from algae as a natural and ecological biostimulant is a promising technique that can have positive effects on plant development.
5. CONCLUSION
The present study confirms that U. rigida extract can serve as a natural fertilizer and biostimulant to improve the growth and rooting of carob and many other recalcitrant plants. The beneficial effect of seaweed extract application presented in this study highlight sits potential for the development of a successful and sustainable method to improve plant rooting that could offer viable field applications.
6. AUTHORS’ CONTRIBUTIONS
All authors made substantial contributions to conception and design, acquisition of data, or analysis and interpretation of data; took part in drafting the article or revising it critically for important intellectual content; agreed to submit to the current journal; gave final approval of the version to be published; and agreed to be accountable for all aspects of the work. All the authors are eligible to be an author as per the International Committee of Medical Journal Editors (ICMJE) requirements/guidelines.
7. FUNDING
This work was supported by internal funding from Abd Elmalek Essaadi University, Morocco.
8. CONFLICTS OF INTEREST
The authors declare that there is no conflict of interest.
9. Data availability
All data generated and analyzed are included within this research article.
10. ETHICAL APPROVALS
This study does not involve experiments on animals or human subjects.
11. PUBLISHER’S NOTE
This journal remains neutral with regard to jurisdictional claims in published institutional affiliation.
REFERENCES
1. Batlle I, Tous J. Carob tree (Ceratonia siliqua L.) Promoting the Conservation and Use of Under-utilized and Neglected Crops. Roma, Gatersleben:Institute of Plant Genetics and Crop Plant Research, International Plant Genetic Resource Institute;1997.
2. Baumel A, Mirleau P, Viruel J, Bou Dagher KM, La Malfa S, Ouahmane L, et al. Assessment of plant species diversity associated with the carob tree (Ceratonia siliqua, Fabaceae) at the Mediterranean scale. Plant Ecol Evol 2018;151:185-93. [CrossRef]
3. Manaut N, Sanguin H, Ouahmane L, Bressan M, Thioulouse J, Baudoin E, et al. Potentialities of ecological engineering strategy based on native arbuscular mycorrhizal community for improving afforestation programs with carob trees in degraded environments. Ecol Eng 2015;79:113-9. [CrossRef]
4. Hartmann HD, Kester DE, Davies FJ. Geneve RL Plant Propagation:Principles and Practices. New Jersey:Prentice Hall;1997.
5. Battacharyya D, Babgohari MZ, Rathor P, Prithiviraj B. Seaweed extracts as biostimulants in horticulture. Sci Hortic 2015;196:39-48. [CrossRef]
6. Ali O, Ramsubhag A, Jayaraman J. Biostimulant properties of seaweed extracts in plants:implications towards sustainable crop production. Plants 2021;10:531. [CrossRef]
7. Begum M, Bordoloi BC, Singha DD, Ojha NJ. Role of seaweed extract on growth, yield and quality of some agricultural crops:A review. Agric Rev 2018;29:321-6. [CrossRef]
8. Chernane H, Latique S, Mansori M, Kaoua ME. Salt stress tolerance and antioxidative mechanisms in wheat plants (Triticum durum L.) by seaweed extracts application. J Agric Vet Sci 2015;8:36-44.
9. Shukla PS, Mantin EG, Adil M, Bajpai S, Critchley AT, Prithiviraj B. Ascophyllum nodosum-based biostimulants:Sustainable applications in agriculture for the stimulation of plant growth, stress tolerance, and disease management. Front Plant Sci 2019;10:655. [CrossRef]
10. Jannin L, Arkoun M, Etienne P, Laine P, Goux D, Garnica M, et al. Brassica napus growth is promoted by Ascophyllum nodosum (L.) Le Jol. seaweed extract:Microarray analysis and physiological characterization of N, C, and S metabolisms. J Plant Growth Reg 2013;32:31-52. [CrossRef]
11. Mutale-Joan C, Redouane B, Najib E, Yassine K, Lyamlouli K, Laila S, et al. Screening of microalgae liquid extracts for their biostimulant properties on plant growth, nutrient uptake and metabolite profile of Solanum lycopersicum L. Sci Rep 2020;10:2820. [CrossRef]
12. Kulkarni MG, Rengasamy KR, Pendota SC, Gruz J, PlackováL, Novák O, et al. Bioactive molecules derived from smoke and seaweed ecklonia maxima showing phytohormone-like activity in Spinacia oleracea L. New Biotechnol 2019;48:83-9. [CrossRef]
13. Shehata SM, Heba SA, Abou El-Yazied A, El-Gizawy AM. Effect of foliar spraying with amino acids and seaweed extract on growth chemical constitutes, yield and its quality of celeriac plant. Eur J Sci Res 2011;58:257-6.
14. Kapoore RV, Wood EE, Llewellyn CA. Algae biostimulants:A critical look at microalgal biostimulants for sustainable agricultural practices. Biotechnol Adv 2021;49:107754. [CrossRef]
15. Anisimov MM, Skriptova AV, Chaikina EL, Klykov AG. Effect of water extracts of seaweeds on the growth of seedling roots of buckwheat. Int J Res Rev Appl Sci 2013;16:282-7.
16. Castellanos BL, Santacruz RF, Hernández CG, Ramírez BE, Hernández HR. Effect of seaweed liquid extracts from Ulva lactuca on seedling growth of mung bean (Vigna radiata). J Appl Phycol 2017;29:2479-88. [CrossRef]
17. Valencia RT, Acosta LS, Hernández MF, Rangel PP, Gallegos RM, del Carmen AC, et al. Effect of seaweed aqueous extracts and compost on vegetative growth, yield, and nutraceutical quality of cucumber (Cucumis sativus L.) fruit. Agronomy 2018;8:264. [CrossRef]
18. Al-Musawi MA. Effect of foliar application with algae extracts on fruit quality of sour orange, Citrus aurantium L. J Environ Sci Pollut Res 2018;4:250-2. [CrossRef]
19. Yusuf R, Kristianse P, Warwick N. Effect of two seaweed products and equivalent mineral treatments on lettuce (Lactuca sativa L.) growth. J Agron 2019;18:100-6. [CrossRef]
20. Crouch IJ, van Staden J. Evidence for the presence of plant growth regulators in commercial seaweed products. Plant Growth Reg 1993;6:345-88.
21. Yalç?n S, Sükran OE, Karaka SÖ, Önem AN, Sözgen BK. Identification and quantification of some phytohormones in seaweeds using UPLC-MS/MS. J Liq Chromatogr Relat 2019;42:1-10.
22. Khan W, Rayirath UP, Subramanian S, Jithesh MN, Rayorath P, Hodges DM, et al. Seaweed extracts as biostimulants of plant growth and development. J Plant Growth Reg 2009;28:386-99. [CrossRef]
23. Stirk WA, Van Staden J. Plant Growth Regulators in Seaweeds:Occurrence, Regulation and Functions. Amsterdam, Netherlands:Elsevier;2014. 71. [CrossRef]
24. Ali O, Ramsubhag A, Jayaraman J. Biostimulatory activities of Ascophyllum nodosum extract in tomato and sweet pepper crops in a tropical environment. PLoS One 2019;14:e0216710. [CrossRef]
25. Chen D, Huang Y, Shen D, Zhou W, Ao J, Jiang Y, et al. Effects of seaweed extracts on promoting growth and improving stress resistance in sugarcane. Asian Agric Res 2019;11:69-76.
26. De Klerk GJ, Van der Krieken W, De Jong JC. The formation of adventitious roots:New concepts, new possibilities. In Vitro Cell Dev Biol Plant 1999;35:189-99. [CrossRef]
27. De Silva H, McKenzie BA, Bloomberg M. Indolebutyric acid and wounding induced rooting in callused, non-rooted Leyland cypress (9 Cupressocyparis leylandii) stem cuttings. N Zeal J Crop Hortic Sci 2005;33:407-12. [CrossRef]
28. Zouari N, El Mtili N. In vitro propagation of mature carob trees (Ceratonia siliqua L.) from the axillary buds. Am J Plant Sci 2020;11:1369-82. [CrossRef]
29. Radi A, Echchgadda G, Ibijbijen J, Rochd M. In vitro propagation of Moroccan carob (Ceratonia siliqua L.). J Food Agric Environ 2013;11:1103-7.
30. El Boukhari ME, Barakate M, Bouhia Y, Lyamlouli K. Trends in seaweed extract based biostimulants:Manufacturing process and beneficial effect on soil-plant systems. Plants 2020;9:359. [CrossRef]
31. Kurepin LV, Zaman M, Pharis RP. Phytohormonal basis for the plant growth promoting action of naturally occurring biostimulators. J Sci Food Agric 2014;94:1715-22. [CrossRef]
32. Arioli T, Mattner SW, Winberg PC. Applications of Seaweed extracts in Australian agriculture:Past, present and future. J Appl Phycol 2015;27:2007-15. [CrossRef]
33. Wang Y, Fu F, Li J, Wang G, Wu M, Zhan J, et al. Effects of Seaweed fertilizer on the growth of malus hupehensis rehd. Seedlings, soil enzyme activities and fungal communities under replant condition. Eur J Soil Biol 2016;75:1-7. [CrossRef]
34. Mattner SW, Milinkovic M, Arioli T. Increased growth response of strawberry roots to a commercial extract from durvillaea potatorum and Ascophyllum nodosum. J Appl Phycol 2018;30:2943-51. [CrossRef]
35. Carmody N, Goñi O, ?angowski ?, O'Connell S. Ascophyllum nodosum extract Biostimulant processing and its impact on enhancing heat stress tolerance during tomato fruit set. Front Plant Sci 2020;11:807. [CrossRef]
36. Zouari N, El Mtili N. Ultrasonic influence on carob tree (Ceratonia siliqua L.) rooting under in-vitro conditions. Moroccan J Biol 2018;15:18-27.
37. Zouari N, El Mtili N. Effects of ectomycorrhizal fungal inoculation on growth and rooting of carob tree (Ceratonia siliqua L.). South Afr J Bot 2020;135:181-7. [CrossRef]
