1. INTRODUCTION
Human infections by helminths are among the most widespread diseases in the world. In developing countries, mainly in tropical and subtropical ones, human infections cause serious health problems and contribute to malnutrition in children and deficiency in their mental development, mostly due to scarce adequate sanitary systems and lack of safe sources of drinking water [1].
Those diseases represent a public health concern for the sanitary authorities of these countries. According to the WHO, approximately 2 billion people suffer from soil-transmitted helminthiases around the globe. Among them, 820 million are children of the prescholar or scholar age. The damage that the parasites can produce varies and can comprise blood loss from the feeding of the parasite, mechanical damage to the intestinal mucosa, malabsorption, nutrient losses, and in some cases intestinal obstruction. The main areas affected are the Americas, sub-Saharan Africa, and Asia [2]. The WHO strategy to fight soil-transmitted helminthiases is the use of an anthelmintic drug for the children of scholar age that live in the affected areas [3].
The drugs used are benzimidazoles (albendazole and mebendazole), ivermectin, and pyrantel. From these, benzimidazoles have been more extensively used. Their efficacy varies depending on the worm type, drug, age, and intensity of the infection [4]. Some adverse effects have been described for the benzimidazoles and the other drugs. Also, the menace of development of resistance by the helminths is always present [5–7]. Therefore, the search for sources that can yield molecules to fight these diseases is needed. One of those sources is medicinal plants.
Plants have been used by almost all peoples on Earth since ancient times to treat illnesses that afflicted them. Among these, examples of the use of plants and extracts elaborated from them for the treatment of diseases caused by helminths can be found [8].
Centratherum genus, belonging to the Asteraceae family, is widely distributed in the tropical regions of South and Central America, the West Indies, Australia, India, and the Philippines. Approximately 20 species are recognized for the genus, and it was first described by Alexandre Henri Gabriel of Cassini in 1817 [9]. The genus is attributed various properties such as anthelmintic, for the treatment of ulcers, diuretic, antioxidant, and anti-inflammatory [10,11].
Among the substances isolated from the plants of the Centratherum genus, sesquiterpene lactones are characteristic. These compounds have shown many biological activities, including anthelmintic, making the genus candidate for the isolation of molecules that could be used for new anthelmintic drugs development [12]. Besides sesquiterpenes, flavonoids and hydroxycinnamic acid derivatives were also identified [13].
With these antecedents, we decided to assay the anthelmintic activity of the methanolic extract of the aerial parts of Centratherum punctatum against Eisenia fetida and characterize its main constituents by liquid chromatography coupled to mass spectrometry (LC-MS).
2. MATERIALS AND METHODS
2.1. Plant Material
The aerial parts of C. punctatum Cass. were collected in the Paraguarí Department, Paraguay, South America, at 25°35?55? S and 57°7?54? W. The plant was identified by the Department of Botany of the Faculty of Chemical Sciences. For indexing purposes, a voucher specimen was deposited in the Herbarium FCQ of the Faculty of Chemical Sciences (R. Degen 4044).
2.2. Reagents and Chemicals
The chemicals were of analytical or LC-MS grade (E. Merck, Darmstadt, Germany). The methanol used for the preparation of extracts was of HPLC grade (JT Baker, Center Valley, PA). The reference drug albendazole (100% purity) was obtained from Jialing Medicine Industry Co., Ltd. (Changzhou, Jiangsu, China).
2.3. Preparation of the Methanolic Extract
The aerial parts of C. punctatum were ground to a fine powder in a cutter mill. The powder obtained (200 g) was macerated with methanol (1.5 L) with the assistance of an ultrasonic bath for 30 minutes three times at intervals of 15 minutes. The macerate was left to stand for 24 hours and then filtered through qualitative filter paper. The solvent was replaced, and the entire cycle was repeated for 3 days. Finally, the filtrates were reunited, and the solvent was evaporated using a rotary evaporator (RVO 400 SD, Boeco, Germany) to obtain the crude extract.
2.4. Fractionation of the Crude Extract
To obtain the fractions, the partial solubilization method was used. For this, 5 g of extract was suspended in water and subsequently submitted sequentially to liquid–liquid partition with different solvents, such as hexane, chloroform, ethyl acetate, and butanol. The extraction with each solvent was carried out three times. The solvents were evaporated in vacuo on a rotary evaporator, and the remaining aqueous fraction was lyophilized (Telstar LyoQuest, Japan). With this procedure, the compounds present in the crude extract were grouped according to their polarity.
2.5. Ultraperformance Liquid Chromatography Coupled with Tandem Mass Spectrometry (UPLC-ESI-MS/MS) Analyses
For this analysis, a Waters (Milford, MA) Acquity UPLC chromatograph was used coupled with a Xevo TQD QqQ-MS mass spectrometer as the detector. A Phenomenex KINETEX core-shell EVO-C18 (2.1 × 100 mm, 1.7 μm) column was used (flow rate 0.3 mL/minute). The temperature of the column was 40°C. The mobile phase was composed of methanol (MeOH) (A) and water (B), with 0.1% formic acid and 10 mM ammonium formate for both. Gradient mode was used for the elution according to the following program: 0–0.7 minute, 80%–80% B; 0.7–3.2 minutes, 80%–60% B; 3.2–7.6 minutes, 60%–20% B; 7.6–8.3 minutes, 20%–0% B; 8.3–10.4 minutes, 0%–80% B; and 10.4–13 minutes, 80%–80% B. The samples (5 mg/mL) were dissolved in LC-MS MeOH, filtered through 0.22 μm nylon syringe filters, and injected.
The characterization of the compounds was performed first using full scan mode (m/z 80–800, at scan time of 0.14 seconds) with ESI as an ionization source in negative and positive modes. The MS/MS analyses were carried out in daughter ion mode (scan time 0.1 seconds), selecting the major compounds for fragmentation. Argon was used as collision gas. Nitrogen was used as nebulizer gas and drying gas. The mass spectrometer conditions were as follows: electrospray capillary voltage was 4.0 kV, source temperature was 150°C, desolvation temperature was 500°C, cone gas flow was 50 L/hour, and desolvation gas flow was 900 L/hour. The cone voltage was set at 30 V, while the collision energy was optimized as follows: 20 V for hydroxycinnamic esters and 30 V for the rest. The system was controlled using Waters Masslynx V4.1 software.
2.6. Anthelmintic Assay
The anthelmintic activity was assayed using the Californian red worm E. fetida as a model, according to the method described by Cáceres et al. [14] due to its anatomical and physiological resemblances to human parasites. The worms were provided by the Phytochemistry Department hatchery and were 4–6 cm in length and 0.2–0.4 cm in diameter. The assays were carried out in triplicate.
2.7. Statistical Analysis
The data were processed using GraphPad Prism software v. 7.0 for Windows. A D’Agostino & Pearson test was performed first to determine if the values were normally distributed. For statistical significance, an ANOVA test and then the Tukey method for multiple comparisons were performed. A p-value < 0.05 was considered statistically significant.
3. RESULTS AND DISCUSSION
3.1. Extraction Yield
The extraction procedure yielded 28.8 g of crude extract from the aerial parts of C. punctatum (14.4 %). Subsequently, the extract was suspended in water and partitioned with solvents of increasing polarity. The yield of the procedure was as follows: 11.76% for the hexane fraction; 12.21% for the chloroform fraction; 5.37% for the ethyl acetate fraction; 20.90% for the butanol fraction; and 38.42% for the aqueous fraction.

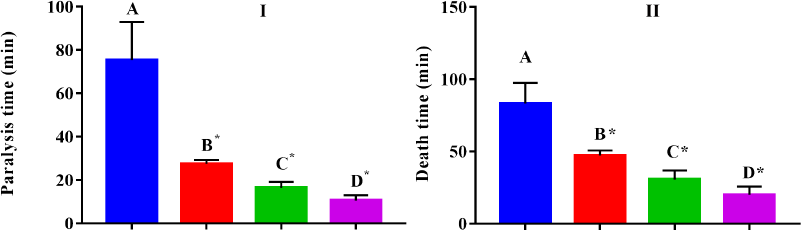

 | Figure 1: Time of paralysis (I) and time of death (II) of 10 (B), 20 (C) and 40 (D) mg/mL concentrations of the extract of C. punctatum against E. foetida compared with albendazole (A). Letters marked with an asterisc indicated statistical significant differences respect to the positive control. [Click here to view] |

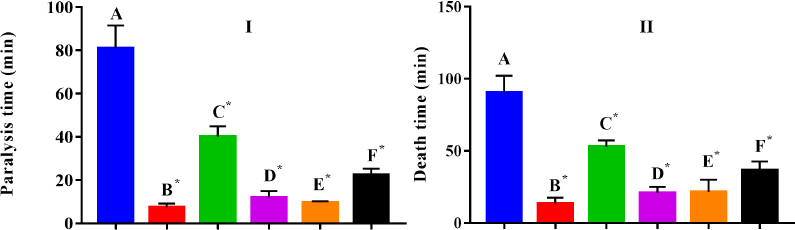

 | Figure 2: Time of paralysis (I) and time of death (II) of the ethyl acetate (B), hexane (C), chloroform (D), butanol (E) and aqueous (F) fractions of C. punctatum at 10 mg/mL against E. foetida compared with albendazole (A). Letters marked with an asterisc indicated statistical significant differences respect to the positive control. [Click here to view] |
3.2. Anthelmintic Activity
The methanolic extract of C. punctatum showed more activity than the positive control (albendazole) for both, time of paralysis and the time of death. The statistical analysis showed that significant differences existed for the three concentrations assayed (10, 20, and 40 mg/mL) compared with albendazole. The effect increased with the exposure to higher concentrations of the extract, indicating that the activity observed is concentration-dependent (Fig. 1). The activity observed cannot be attributable to the methanol used in the extract preparation because the solvent was evaporated to dryness before the assay. Furthermore, methanol is relatively nontoxic to the worms according to a previous study [15].
Regarding the anthelmintic activity of the fractions, all of them showed more activity than the positive control at 10 mg/mL (Fig. 2). The hexane fraction was the least active, while the ethyl acetate one was the most active. Nevertheless, regarding the time of paralysis, Tukey’s post-hoc test showed no statistically significant differences among the ethyl acetate fraction, the chloroformic, and the butanol fractions. Concerning the time of death, the effect of the fractions was pretty similar to the observed for the paralysis time.
3.3. UPLC-ESI-MS/MS Analyses of C. punctatum Extracts
To identify the compounds present in the MeOH and the ethyl acetate (AcOEt) fraction that could be responsible for the anthelmintic activity, both were analyzed by UPLC-ESI-MS/MS. The ethyl acetate fraction was selected based on its lowest times of paralysis and death against E. fetida.
According to their fragmentation profiles, eighteen compounds were identified. To facilitate the discussion, they will be divided into three groups, namely, hydroxycinnamic derivatives, flavonoids, and sesquiterpene lactones. Their occurrence, retention time, and fragmentation profile are presented in Table 1. The SCAN mode chromatograms of the MeOH extract and the AcOEt fraction are shown in Figures 3 and 4.

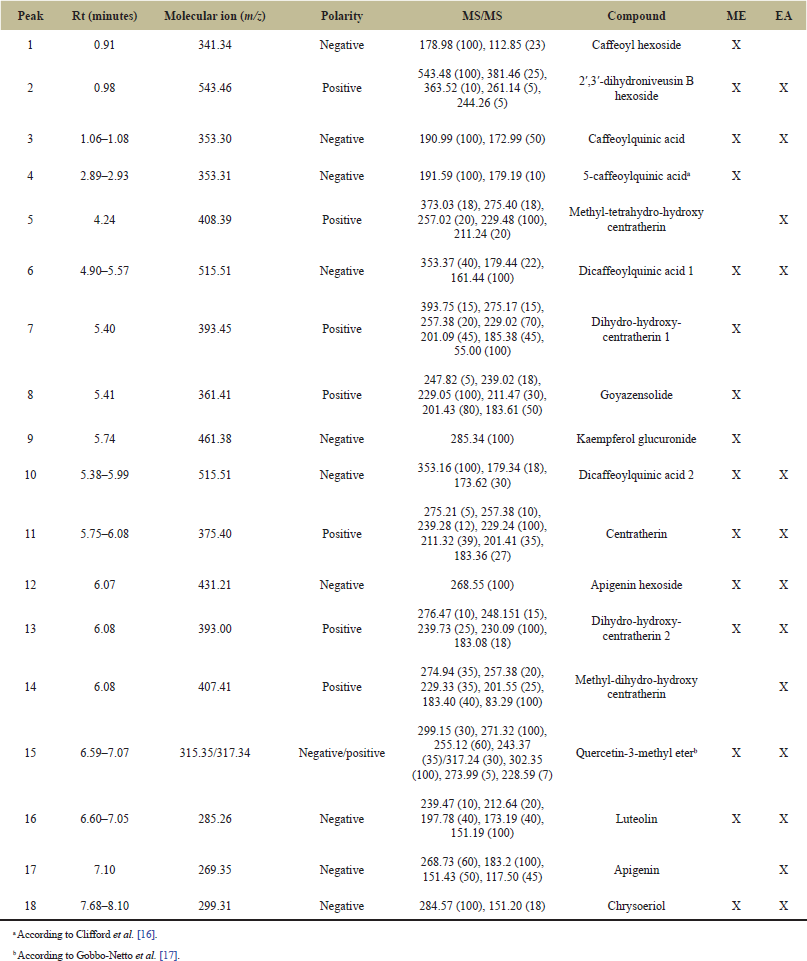

 | Table 1. Identification of the main compounds in the methanolic (ME) and ethyl acetate (EA) extracts from C. punctatum through UPLC-ESMS/MS. [Click here to view] |

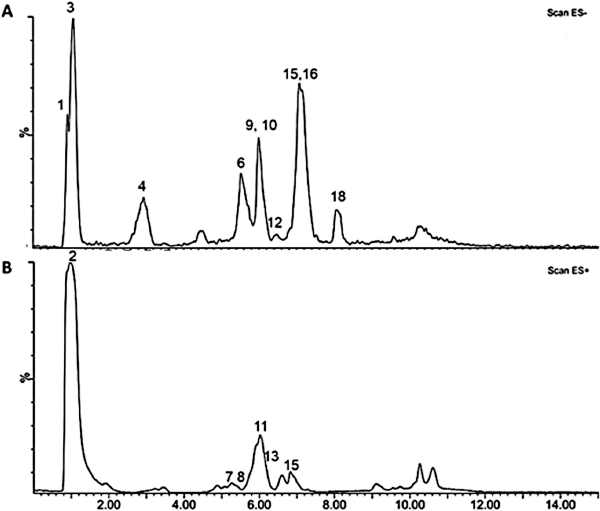

 | Figure 3: SCAN mode chromatogram in negative (A) and positive (B) ion mode of the MeOH extract of C. punctatum. [Click here to view] |
3.3.1. Hydroxycinnamic derivatives
Compound 1 was identified as caffeoyl hexoside, based on its molecular ion at m/z 341. A hexose loss (162 amu) affords a base peak at m/z 179, in agreement with caffeic acid. Peaks 3 and 4 showed a negative [M − H]− ion at m/z 353. The neutral loss of a caffeoyl moiety (162 amu) leading to the MS2 base peak at m/z 191 suggested a quinic acid ion. Therefore, compound 3 was identified as caffeoylquinic acid and compound 4 as 5-caffeoylquinic acid (according to Clifford et al. [16] proposed scheme). Peaks 6 and 10 displayed a molecular ion at m/z 515 and a neutral loss of one caffeoyl moiety (162 amu), affording MS/MS fragments at m/z 353 and 179, in agreement with caffeoylquinic and caffeic acid ions, respectively. Then, compounds 6 and 10 were identified as dicaffeoylquinic acids 1 (6) and 2 (10), respectively. Several chlorogenic acids were reported for members of the Asteraceae family [13,17], in agreement with our results.
3.3.2. Flavonoids
Peak 9 showed a deprotonated [M − H]− ion at m/z 461 with a neutral loss of one glucuronate moiety (176 amu), leading to the base peak at m/z 285. This agrees with a kaempferol core. Then, compound 9 was identified as kaempferol glucuronide [18]. Peak 12 displayed a [M − H]− ion at m/z 431 and a neutral loss of one hexose (162 amu), leading to a base peak at m/z 269, suggesting an apigenin core. Thus, compound 12 was assigned as apigenin hexoside (12).
Among the aglycones, compound 15 was identified as quercetin-3-methyl ether (15) due to its [M − H]− ion at 315 and the MS/MS ions at m/z 299, 271, 255, and 243 [17]. This was further confirmed in positive ion mode, showing [M + H]+ ion at m/z 317 and MS2 ions at 303, 273, and 229. Peak 16 showed a molecular ion at m/z 285 and secondary fragment ions at m/z 239, 213, 197, 173, and 151, in agreement with luteolin aglycone [19]. Thus, this compound was identified as luteolin (16). Apigenin (17) and chrysoeriol (18) were also identified in our samples. The first (16) showed a negative [M − H]− ion at 269, yielding MS2 fragments at m/z 183, 151, and 117, characteristic of an apigenin core [13], whereas compound 18 displayed a molecular ion at m/z 299, leading to the ions at m/z 284 and 151, suggesting a chrysoeriol core [13].
3.3.3. Sesquiterpene lactones
One heliangolide and six furanoheliangolides were identified. Among them, compound 2 showed a pseudomolecular ion at m/z 543 and a neutral loss of a hexose (162 amu), producing the MS/MS ions at m/z 381, 363, 261, and 244, suggesting a 2?,3? -dihydroniveusin B core [20]. Therefore, 2 was identified as 2?,3? -dihydroniveusin B hexoside.

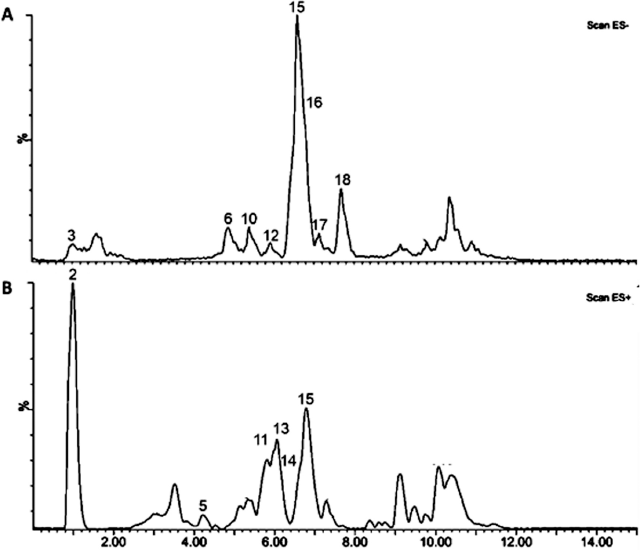

 | Figure 4: SCAN mode chromatogram of the AcOEt fraction of C. punctatum. [Click here to view] |
The other compounds were assigned as furanoheliangolides belonging to the goyasenzolide type, which are considered the most biologically active type of these compounds [21]. Compound 8 was identified as goyazensolide, based on the pseudomolecular ion of 361 amu and the characteristic MS2 ions at m/z 247, 239, 229, 211, 201, and 183 [21,22]. The characteristics MS/MS ions at m/z 275, 257, 239, 211, 201, and 183 and the [M + H]+ ion at m/z 375 allowed the identification of centratherin (11) [13,21].
Compounds 7 and 13 showed a molecular ion at m/z 393 that had 18 amu more than the centratherin molecular weight. Compound 7 showed the fragment ions at m/z 275, 257, 229, and 201, characteristics of centratherin [21], while compound 13 displayed ions of m/z 276, 248, 239, and 183, also diagnostic of centratherin. Therefore, compounds 7 and 13 were identified as dihydro-hydroxy-centratherin 1 and 2 isomers, respectively.
Peak 14 showed MS2 ions at m/z 275, 257, 229, 201, 183, and 83, characteristic of centratherin [21], while the pseudomolecular ion at m/z 407 surpasses the protonated [M + H]+ of compounds 7 and 13 by 14 amu (one methyl). Therefore, compound 19 was identified as methyl-dihydro-hydroxy centratherin. In addition, compound 5 was assigned as methyl-tetrahydro-hydroxy centratherin due to their fragment ions at m/z 275, 257, 229, and 211, characteristic of centratherin [21], and the molecular ion at m/z 409, two mass units over that of compound 14.
The AcOEt fraction showed to be enriched in flavonoids and sesquiterpene lactones compared to the MeOH extract (Figs. 3 and 4). Of the three groups of compounds identified in our samples, the sesquiterpene lactones are the most probable candidates to be responsible for the anthelmintic activity observed. Various articles have demonstrated that these compounds are active against helminths. Recent evidence suggests that they may act synergistically against worms [12,23,24]. The polarity of the lactones can also explain the activity of the fractions since these compounds are soluble in chloroform, ethyl acetate, and butanol, and the Tukey post-hoc test showed no statistically significant differences among them [25–28]. Furthermore, the hydroxycinnamic derivatives and the flavonoids also showed anthelmintic activity; therefore, the isolation and assay of the individual compounds are necessary to clarify which are the compounds responsible for the effect observed [29–31].
4. CONCLUSION
The methanolic extract and the fractions of C. punctatum have shown anthelmintic activity against E. fetida. Their effect was higher than the reference drug albendazole. The ethyl acetate fraction showed the lowest paralysis and death times in the model employed. The chemical analysis of the crude extract and the most active fraction through UPLC-ESI-MS/MS allowed the identification of sesquiterpene lactones, flavonoids, and hydroxycinnamic derivatives that may be responsible for the observed anthelmintic activity. Isolation and test of the individual compounds are necessary to identify potential candidates to be new anthelmintic drugs.
5. ACKNOWLEDGMENT
This work was supported by the Faculty of Chemical Sciences of the National University of Asunción, Paraguay. Centratherum punctatum extract preparation was partially supported by the Korea Research Institute of Bioscience & Biotechnology. The authors wish to thank Professor Rosa Degen of the Botany Department, Faculty of Chemical Sciences, National University of Asunción, for collecting and identifying the plants.
6. CONFLICTS OF INTEREST
The authors declare that they have no conflicts of interest.
7. ETHICAL APPROVAL
Not applicable.
8. AUTHORS’ CONTRIBUTIONS
All authors made substantial contributions to this work. MG made the extract preparation and fractionation and the anthelmintic assays. AB-E carried out the UPLC-MS/MS analysis and the identification of compounds. AC carried out the statistical analysis. NA analyzed and interpreted the data obtained, wrote the manuscript, and designed and supervised the work. All authors revised and approved the final manuscript.
9. PUBLISHER’S NOTE
This journal remains neutral with regard to jurisdictional claims in published institutional affiliation.
REFERENCES
1. WHO. Guideline: preventive chemotherapy to control soil-transmitted helminth infection in at-risk group [Internet]. 2017. Available via http://apps.who.int/bookorders (Accessed 12 April 2021).
2. WHO. Investing to overcome the global impact of neglected tropical diseases [Internet]. 191 p, 2015. Available via http://www.who.int/neglected_diseases
3. Campbell SJ, Nery SV, McCarthy JS, Gray DJ, Soares Magalhães RJ, Clements ACA. A critical appraisal of control strategies for soil-transmitted helminths. Trends Parasitol 2016;32(2):97–107. CrossRef
4. Vercruysse J, Behnke JM, Albonico M, Ame SM, Angebault C, Bethony JM, et al. Assessment of the anthelmintic efficacy of albendazole in school children in seven countries where soil-transmitted helminths are endemic. PLoS Negl Trop Dis 2011;5(3):e948. CrossRef
5. De Clercq D, Sacko M, Behnke J, Gilbert F, Dorny P, Vercruysse J. Failure of mebendazole in the treatment of human hookworm infections in the southern region of Mali. Am J Trop Med Hyg 1997;57(1):25–30. CrossRef
6. Albonico M, Engels D, Savioli L. Monitoring drug efficacy and early detection of drug resistance in human soil-transmitted nematodes: a pressing public health agenda for helminth control. Int J Parasitol 2004;34(11):1205–10. CrossRef
7. Vercruysse J, Albonico M, Behnke JM, Kotze AC, Prichard RK, McCarthy JS, et al. Is anthelmintic resistance a concern for the control of human soil-transmitted helminths? Int J Parasitol Drugs Drug Resist 2011;1(1):14–27. CrossRef
8. Sunita K, Kumar P, Khan MA, Husain S, Singh DK. Anthelminthic/larvicidal activity of some common medicinal plants. Eur J Biol Res 2017;7(4):324–36.
9. Kirkman LK. Taxonomic revision of Centratherum and Phyllocephalum (Compositae: Vernonieae). Rhodora 1981;83(833):1–24.
10. Bhatia D, Gupta MK, Gupta A, Singh M, Kaithwas G. Pharmacognostical studies on seeds of Centratherum anthelminticum Kuntze. Indian J Nat Prod Resour 2008;7(4):326–9.
11. Ashok P, Koti BC, Thippeswamy AHM, Tikare V, Dabadi P, Viswanathaswamy AHM. Evaluation of antiinflammatory activity of Centratherum anthelminticum (L) Kuntze seed. Indian J Pharm Sci 2010;72(6):697–703. CrossRef
12. Valente AH, de Roode M, Ernst M, Peña-Espinoza M, Bornancin L, Bonde CS, et al. Identification of compounds responsible for the anthelmintic effects of chicory (Cichorium intybus) by molecular networking and bio-guided fractionation. Int J Parasitol Drugs Drug Resist 2021;15:105–14. CrossRef
13. Gallon ME, Jaiyesimi OA, Gobbo-Neto L. LC-UV-HRMS dereplication of secondary metabolites from Brazilian Vernonieae (Asteraceae) species supported through in-house database. Biochem Syst Ecol 2018;78:5–16. CrossRef
14. Cáceres AL, Flores-Giubi ME, Romero-Rodríguez MC, Alvarenga NL. In vitro anthelmintic activity and chemical composition of methanol extracts and fractions of Croton paraguayensis and Vernonia brasiliana against Eisenia fetida. Asian Pac J Trop Dis 2017;7(2):71–4. CrossRef
15. Roberts BL, Wyman Dorough H. Relative toxicities of chemicals to the earthworm Eisenia fetida. Environ Toxicol Chem 1984;3(1):67–78. CrossRef
16. Clifford MN, Johnston KL, Knight S, Kuhnert N. Hierarchical scheme for LC-MSn identification of chlorogenic acids. J Agric Food Chem 2003;51(10):2900–11. CrossRef
17. Gobbo-Neto L, Lopes NP. Online identification of chlorogenic acids, sesquiterpene lactones, and flavonoids in the Brazilian arnica Lychnophora ericoides Mart. (Asteraceae) leaves by HPLC-DAD-MS and HPLC-DAD-MS/MS and a validated HPLC-DAD method for their simultaneous analysis. J Agric Food Chem 2008;56(4):1193–204. CrossRef
18. Shankaran KS, Ganai SA, Arun KP, Brindha P, Mahadevan V. In silico and in vitro evaluation of the anti-inflammatory potential of Centratherum punctatum Cass-A. J Biomol Struct Dyn 2017;35(4):765–80. CrossRef
19. Schmidt J. Negative ion electrospray high-resolution tandem mass spectrometry of polyphenols. J Mass Spectrom 2016;51(1):33–43. CrossRef
20. Buschmann H, Spring O. Sesquiterpene lactones of three Heliomeris species (Heliantheae; Asteraceae). Phytochemistry 1997;46(5):969–72. CrossRef
21. Crotti AEM, Lopes JLC, Lopes NP. Triple quadrupole tandem mass spectrometry of sesquiterpene lactones: a study of goyazensolide and its congeners. J Mass Spectrom 2005;40(8):1030–4. CrossRef
22. Gallon ME, Jaiyesimi OA, Gobbo-Neto L. LC-UV-HRMS dereplication of secondary metabolites from Brazilian Vernonieae (Asteraceae) species supported through in-house database. Biochem Syst Ecol 2018;78:5–16. CrossRef
23. Peña-Espinoza M, Valente AH, Thamsborg SM, Simonsen HT, Boas U, Enemark HL, et al. Antiparasitic activity of chicory ( Cichorium intybus ) and its natural bioactive compounds in livestock: a review. Parasites Vectors 2018;11(1):1–14. CrossRef
24. Foster JG, Cassida KA, Turner KE. In vitro analysis of the anthelmintic activity of forage chicory (Cichorium intybus L.) sesquiterpene lactones against a predominantly Haemonchus contortus egg population. Vet Parasitol 2011;180(3–4):298–306. CrossRef
25. Hichri F, Znati M, Bouajila J, Ben Jannet H. New cytotoxic sesquiterpene lactones from Achillea cretica L. growing in Tunisia. J Asian Nat Prod Res 2018;20(4):344–51. CrossRef
26. Zhang B, Zeng J, Yan Y, Yang B, Huang M, Wang L, et al. Ethyl acetate extract from Inula helenium L. inhibits the proliferation of pancreatic cancer cells by regulating the STAT3/AKT pathway. Mol Med Rep 2018;17(4):5440–8. CrossRef
27. Servi H, Goren N. Chemistry of endemic Tanacetum mucroniferum Hub.-Mor. & Grierson extracts and three new sesquiterpene lactones. Turk J Chem 2019;43(1):352–8. CrossRef
28. Dusmatova DE, Bobakulov KM, Mukhamatkhanova RF, Turgunov KK, Terenteva EO, Tsay EA, et al. Isolation of cytotoxic sesquiterpene lactones from the Tanacetopsis karataviensis (Kovalevsk.) Nat Prod Res 2021;35(12):1939–48. CrossRef
29. Mordvinov VA, Ponomarev DV, Pakharukov YV, Pakharukova MY. Anthelmintic activity of antioxidants: In vitro effects on the liver fluke Opisthorchis felineus. Pathogens 2021;10(3):1–12. CrossRef
30. Zarza-Albarrán MA, Olmedo-Juárez A, Rojo-Rubio R, Mendoza-de Gives P, González-Cortazar M, Tapia-Maruri D, et al. Galloyl flavonoids from Acacia farnesiana pods possess potent anthelmintic activity against Haemonchus contortus eggs and infective larvae. J Ethnopharmacol 2020;249:112402. CrossRef
31. Castillo-Mitre GF, Olmedo-Juárez A, Rojo-Rubio R, González-Cortázar M, Mendoza-de Gives P, Hernández-Beteta EE, et al. Caffeoyl and coumaroyl derivatives from Acacia cochliacantha exhibit ovicidal activity against Haemonchus contortus. J Ethnopharmacols 2017;204:125–31. CrossRef
