Research Article | Volume 10, Issue 2, March, 2022

Synergistic effect of Hydnophytum formicarum tuber and Vatica diospyroides Symington cotyledon extracts with ampicillin on pathogenic bacteria

Kanokrat Keawchai Parinuch Chumkaew Patima Permpoonpattana Theera Srisawat

Open Access

Published:  Feb 15, 2022

DOI: 10.7324/JABB.2022.100202
Abstract

This research aimed to study the potential synergistic effect of Hydnophytum formicarum tuber and Vatica diospyroides Symington cotyledon extracts combined with ampicillin on Staphylococcus aureus ATCC 25923 and Escherichia coli ATTC 25922. The antibacterial efficacy was assessed using agar well diffusion, minimum inhibitory concentration (MIC), fractional inhibitory concentration index (FICI), and a flow cytometry assay. The results indicate synergy in antibacterial activity of combined V. diospyroides cotyledon extract with ampicillin, which was more effective than H. formicarum tuber extract against both bacterial species (clear zone sizes 49.33 ± 0.58 and 30.67 ± 1.15 mm for S. aureus and E. coli, respectively). The MIC values for the combination against these bacteria were 1,000:3.125 and 500:3.125 µg/ml, respectively. The FICI values of the combination were 1.06 and 0.375, demonstrating independent and synergistic effects, respectively. The results of flow cytometry indicated that the combined extract-antibiotic inhibited bacteria by acting on cell membrane and by granularity disruptions, with the cell membrane representing the primary target followed by lost granularity. Vatica diospyroides cotyledon extract may increase the efficacy of ampicillin and reduce 8-fold the required antibiotic concentration. These results support a drug discovery program assessing V. diospyroides combined with antibiotics as therapy against resistant bacteria.


Keyword:     Checkerboard flow cytometry Hydnophytum formicarum synergistic Vatica diospyroides


Citation:

Keawchai K, Chumkaew P , Permpoonpattana P, Srisawat T. Biological sciences: Synergistic effect of Hydnophytum formicarum tuber and Vatica diospyroides Symington cotyledon extracts with ampicillin on pathogenic bacteria. J Appl Biol Biotech, 2022; 10(02):6–11.

Copyright: Author(s). This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike license.

HTML Full Text

1. INTRODUCTION

At present, infectious diseases cause about one-third of morbidity and deaths of people worldwide. While antibiotics are essential in treating bacterial infections, their overuse or misuse selects for resistant bacterial strains, and these are the main causes of failure in the treatment of diseases [1]. Therefore, it is necessary to search for new approaches to control resistant bacteria. Phytotherapy has played a significant role in the prevention and treatment, with few side effects. However, only a few medicinal plants have evolved into actual drugs because of the lack of sufficient efficacy [2]. One possible approach is to combine medicinal plant products with antibiotics for enhanced antibacterial activity against the resistant pathogen [3,4]. The plants used in this current study were Hydnophytum formicarum Jack and Vatica diospyroides Symington, which have been reported to possess antibacterial activities [5,6].

This study was, therefore, conducted to assess the possibility of beneficial interactions (synergy) of H. formicarum tuber or V. diospyroides cotyledon extracts when combined with ampicillin against Staphylococcus aureus ATCC 25923 and Escherichia coli ATTC 25922. This is the first reported study on the synergistic effects of these plants with antibiotics, and the initial results we report are very encouraging.


2. MATERIALS AND METHODS

2.1. Preparation of Plant Extracts and Bacterial Strains

The crude extracts of H. formicarum tuber and V. diospyroides Symington cotyledon was extracted by maceration in 95% ethyl alcohol and in absolute acetone, respectively [6]. Briefly, the plant materials (270 g) were extracted for 5 days before being filtered and evaporated until the dry residues were obtained. The collected crude extracts were stored in cool and dark conditions. All extracts were redissolved in dimethyl sulfoxide (DMSO) for preparing final stock solutions (40 mg/ml). The bacteria used in this study were S. aureus ATCC 25923 and E. coli ATCC 25922, which were maintained at the Scientific Laboratory and Equipment Center, Prince of Songkla University, Surat Thani Campus, Thailand. The bacteria were inoculated into Nutrient Broth prior to incubation until the mid-log phase (approximately 108 CFU/ml).

2.2. Agar Well Diffusion

Antibacterial activities of H. formicarum tuber and V. diospyroides cotyledon extracts and ampicillin alone and combinations of H. formicarum and V. diospyroides extracts with ampicillin were determined with the agar well diffusion method. Each plate with 25 ml of Mueller-Hinton agar was inoculated using a cotton swab with a mid-log phase culture of each bacterial strain. The wells (6 mm diameter) were punched in the agar using a cork borer. Then, each well received 50 μl of H. formicarum (2,000 μg/well), V. diospyroides (2,000 μg/well), or ampicillin (concentration from 12.5 to 50 μg/well) alone, both H. formicarum (1,000 μg/well) and ampicillin (12.5 to 50 μg/well), or both V. diospyroides (1,000 μg/well) and ampicillin (12.5 to 50 μg/well). DMSO at 10% was used as a negative control. The plates were incubated at 37°C for 24 hours. The antibacterial activity was assessed by measuring the inhibition zone diameter (mm) in three replicates, reported as mean ± standard deviation (SD). The plant extract was chosen for further experiment based on the efficacy of clear zone interest.

2.3. Evaluation of Minimum Inhibitory Concentration (MIC)

MICs of V. diospyroides cotyledon extract and ampicillin alone were determined by resazurin-based 96-well microdilution as shown in Figure 1. The inoculated plate was incubated at 37°C for 24 hours. After incubation, 10 μl of 0.015% resazurin was added to each well and further incubated for 2–4 hours at 37°C. MIC was defined as the lowest concentration of the tested compound at which the resazurin color did not change from blue to pink [7].

2.4. Determination of Synergistic Effect by Checkerboard Assay

A series of two-fold dilutions of the V. diospyroides from 31.25 to 2,000 μg/ml and ampicillin from 1.56 to 100 μg/ml were prepared for every combination tested, and 70 μl aliquots of each component were placed into the wells of the 96-well plate. An aliquot of bacterial suspension (50 μl) was added to each well. Negative and positive controls were as described above. The plates were then incubated and tested with 0.015% resazurin. The interaction between V. diospyroides and ampicillin was assessed using the Fractional Inhibitory Concentration Index (FICI) calculated as follows:

FICI = FIC of V. diospyroides + FIC of ampicillin

when FIC of V .diospyroides = MIC of combined V .diospyroides MIC of individual V .diospyroides

and FIC of ampicillin = MIC of combined ampicillin MIC of individual ampicillin

Figure 1: The 96-well plate used for MIC testing. An aliquot (280 ml) of a mixed solution of Mueller-Hinton Broth (MHB) and 2-fold V. diospyroides concentration (2,000 μg/ml) was added to the first well, and ampicillin (100 μg/ml) was mixed in as well. Wells 2–7 had 140 μl MHB. To prepare V. diospyroides concentrations (31.25–2,000 μg/ml) or ampicillin concentrations (1.56–100 μg/ml), 140 μl aliquot was pipetted from the first well and added to the next well for two-fold serial microdilution in the 96-well plate. 50 μl of bacterial suspension was added to each well.

[Click here to view]

Table 1: Antibacterial activities of ampicillin combined with H. formicarum tuber extract or with V. diospyroides Symington cotyledon extract against S. aureus ATCC 25923 and E. coli ATCC 25922, as determined by agar well diffusion.

[Click here to view]

Table 2: The MIC and FICI values of ampicillin combined with V. diospyroides extract against S. aureus ATCC 25923 and E. coli ATCC 25922, compared to the treatments done singly.

[Click here to view]

The results were labeled as synergistic (FICI < 0.5), partially synergistic (0.5 < FICI < 1), additive (FICI = 1), indifferent (1 < FICI < 4), or antagonistic (FICI > 4) [8]. The bacteria chosen for the synergistic result were selected for the next experiment.

2.5. Estimation of Cell Membrane Permeability and Granular Integrity of E. coli by Flow Cytometry

The evaluation of bacterial responses to combinations of V. diospyroides with ampicillin against E. coli was based on flow cytometry. The membrane integrity and the retained granularity of E. coli were estimated following the method described by Musimun et al. [6]. Briefly, propidium iodide (PI) staining was used, and then the cytometric profiles (fluorescence intensity and side scatter) were assessed in scatter plots. The varied experiment parameters were V. diospyroides, ampicillin, and their blends with varying concentrations, as follows: 250 μg/ml of V. diospyroides: 1.56 μg/ml of ampicillin (0.5 MIC), 500 μg/ml of V. diospyroides: 3.125 μg/ml of ampicillin (MIC), and 1,000 μg/ml of V. diospyroides: 6.25 μg/ml of ampicillin (2 MIC).

The flow cytometry was performed with a BD FACSCalibur flow cytometer (Becton Dickinson Biosciences (BDB), San Jose, CA) equipped with a 448 nm air-cooled argon laser. A total of 10,000 events per sample were acquired and analyzed with CellQuest software (BDB). Red fluorescence of PI-stained cells was detected in the fluorescence pulse height (FL2-H) detector. Both FL2-H and side scatter (SSC) signals were monitored as logarithmic signals. The populations of viable cells, membrane-damaged cells, injured cells, and dead cells in each sample were analyzed using WinMDI version 2.9 software (Scripps Institute, La Jolla, CA).


3. RESULTS

This study evaluated the antibacterial potential of H. formicarum and V. diospyroides extracts singly and when combined with ampicillin against S. aureus ATCC 25923 and E. coli ATCC 25922. The results revealed that the plants combined with ampicillin showed different antibacterial activities against these bacterial strains. By the size of the clear zone, the highest antibacterial activity was observed for V. diospyroides combined with ampicillin against both types of bacteria. As shown in Table 1, the largest values of inhibition zone were 49.33 ± 0.58 and 30.67 ± 1.15 mm, respectively.

The checkerboard assay was used to evaluate the potential synergy of V. diospyroides with ampicillin against both types of bacteria. The interactions were assessed from FICI values. Vatica diospyroides combined with ampicillin had an indifferent effect on S. aureus ATCC 25923 with FICI = 1.06, while it exhibited a synergistic effect against E. coli ATCC 25922 with FICI = 0.375 (Table 2 and Fig. 2). Interestingly, the synergy could reduce 8-fold the MIC of ampicillin from that when it is used alone.

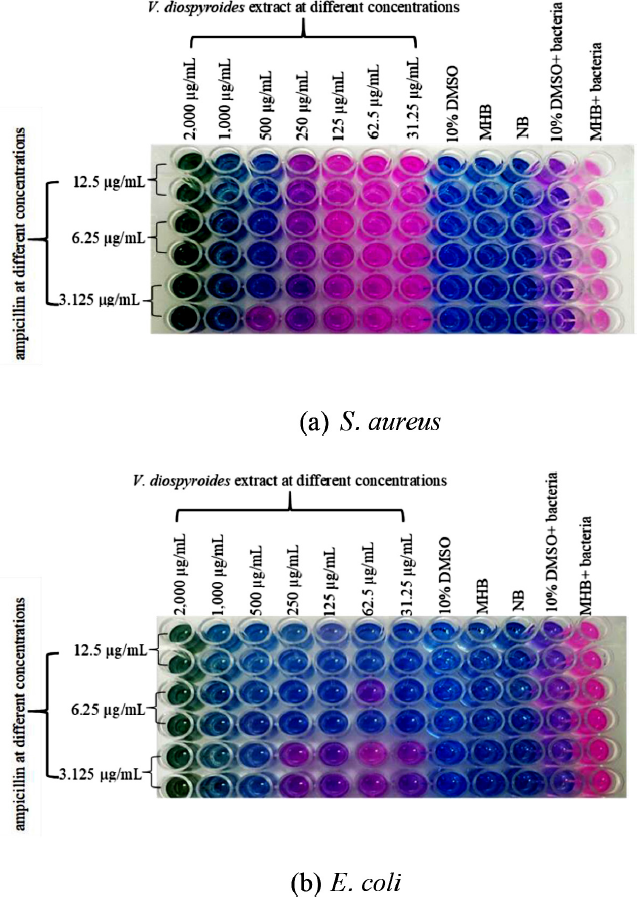

Figure 2: Synergistic effect of ampicillin combined with V. diospyroides extract against S. aureus (a) and E. coli (b) tested by the checkerboard assay.

[Click here to view]

Figure 3: Flow cytometry scatter plots for E. coli ATCC 25922 treated with 1,000 μg/ml of V. diospyroides (a), 50 μg/ml of ampicillin (b), 250 μg/ml of V. diospyroides:1.56 μg/ml of ampicillin (c), 500 μg/ml of V. diospyroides:3.125 μg/ml of ampicillin (d), and 1,000 μg/ml of V. diospyroides:6.25 μg/ml of ampicillin (e) for 12 hours. *The dividing lines separate viable cells (lower left), membrane-damaged cells (lower right), injured cells (upper left), and dead cells (upper right).

[Click here to view]

The synergy of V. diospyroides with ampicillin was evaluated at three concentrations by monitoring the death pattern of E. coli ATCC 25922 after 12 hours of incubation. The response pattern of this bacteria to V. diospyroides alone was the loss of membrane permeability and subsequent loss of granularity of cells (3.2% of membrane-damaged cells and 6.5% of dead cells). In contrast, the response pattern of E. coli ATCC 25922 to ampicillin was only by the loss of membrane integrity with 16.8% of responded cells (Fig. 3). Interestingly, the response pattern of this bacteria to synergistic treatment was similar to V. diospyroides extract alone, but it shows a higher proportion of cell death (12.8%–18.9%) than that of the extract or ampicillin alone.


4. DISCUSSION

In the present study, the efficacy of V. diospyroides extract in combination with ampicillin was found to possess more effect than H. formicarum extract on S. aureus ATCC 25923 and E. coli ATCC 25922. In our previous report, terpenoids, anthraquinones, and saponins were found to be the major constituents in cotyledon extract of V. diospyroides [9]. Terpenoids have strong antibacterial activity against bacteria, especially Gram-negative bacteria [10]. On the other hand, saponins have antimicrobial activity against Gram-positive and Gram-negative bacteria by disrupting cell wall and by membrane damage [11]. Although antibacterial activity has been reported by many authors for anthraquinone derivatives, most anthraquinones are only active against Gram-positive bacteria [12]. Ampicillin is a beta-lactam antibiotic that inhibits Gram-positive and some Gram-negative bacteria [13]. Therefore, in the synergistic results, most of the antibacterial effect by combination of V. diospyroides with ampicillin might be attributed to terpenoids in the plant extract.

For synergistic interaction, resembling those obtained as antibacterial results, the synergistic effect of V. diospyroides with ampicillin against E. coli ATCC 25922 was less than 0.5. This value indicates the ideal efficacy of a combination of both substances. A similar pattern was previously reported by Shah et al. [14] who reported that the interaction of Ocimum sanctum extract with ampicillin was synergistic against E. coli with a FICI below 0.5. The extract of O. sanctum contained terpenoids and saponins, resembling, in this sense, the extract from V. diospyroides.

For flow cytometric analysis, the highest proportion of membrane-damaged E. coli was found when treated with ampicillin alone. The amino group in ampicillin inhibits cell wall biosynthesis [13]. Interestingly, the response to the mixture was similar to V. diospyroides, but it is leading eventually mostly to death. While V. diospyroides fruit extracts have antibacterial activity only against the Gram-positive bacteria [6], the mode of action of this extract when combined with ampicillin was mostly by inhibiting Gram-negative bacteria, with an 8-fold reduction in the concentration of the antibiotic.


5. CONCLUSION

In conclusion, the results of this study indicate improved antibacterial efficacy of V. diospyroides extract when mixed with ampicillin against E. coli ATCC 25922, such that it could reduce the 8-fold use of the antibiotic. The flow cytometry results confirm that the combination treatment with extract-antibiotic inhibited E. coli both by acting on the cell membrane and by granularity disruption. Thus, this synergy could support novel alternative treatments of infectious diseases, mitigating problems with emerging drug resistance.


6. AUTHOR CONTRIBUTIONS

TS designed the experiment and contributed to the implementation of the research, to the analysis of the results, and to the writing of the manuscript. KK and PP performed the aseptic technique experiment. PC prepared crude extractions.


7. FUNDING

This work was supported by a scholarship from Graduate School, Prince of Songkla University, and Prince of Songkla University, Surat Thani Campus.


8. DATA AVAILABILITY

All data generated and analyzed are included within this research article.


9. CONFLICTS OF INTEREST

The authors declared no conflicts of interest.


10. ETHICAL APPROVAL

Not applicable.
