1. INTRODUCTION

The major cytotoxic by-products in organisms during the oxidative metabolism are the free radicals. The reactive oxygen species (ROS) such as superoxide radical, hydroxyl ion radical, and hydrogen peroxide are some of the examples of the oxidants or free radicals produced in cells. They have deleterious effects as they oxidize all biomolecules present in their vicinity and cause oxidative stress (OS). In general, ROS oxidize lipids, proteins, and nucleic acids to lipid peroxides, protein carbonyls, and nucleic acid adduct, respectively. When the levels of the above compounds are elevated, it leads to cellular disturbances under OS condition. Elevated OS leads to tissue damage, protein misfolding, diseases susceptibility, and aging [1]. As a result of oxidation of the above biomolecules, the reduced efficiency of enzymatic and other functions of proteins, loss of membrane fluidity, unwanted modulation in gene expression, and complete or partial arrest in several anabolic processes occur in cells [2]. To counteract OS, antioxidants can donate an electron to ROS to make them chemically stable and inert. Antioxidants may be enzymatic (superoxide dismutase, catalase, glutathione peroxidase, etc.) or non-enzymatic (Vitamins C and A, flavonoids, carotene, etc.) in nature [1]. Thus, the activities of the antioxidants along with OS parameters serve as biomarkers of OS physiology.

The total free radicals or the ROS scavenging activity by the antioxidant defense system are considered as a measure of the total antioxidant capacity (TAC) of tissues. Various analytical methods are employed to estimate the TAC potency and are classified into two categories: (i) Hydrogen atom transfer-based assays and (ii) single electron transfer-based assays [Table 1], [3-7]. In addition to the above assays, fluorimetric, electrochemical techniques, and chromatography techniques are also employed to estimate the TAC level. Molecules or probes such as 2’, 7’-dichlorodihydrofluorescein diacetate, 1, 3-diphenylisobenzofuran, and dihydroethidium are used to estimate total ROS scavenging activity or TAC in cells [8]. However, the simplest, economic, and rapid result providing method among above is the 2,2-diphenyl-1-picrylhydrazyl (DPPH, C₁₈H₁₂N₅O₆, 394.33 g mol-¹) scavenging assay which was first developed by Blois in 1958. To determine the TAC, the stable free radical DPPH is used. Its paramagnetic structure enables it to accept an unpaired electron or a free radical to become a stable diamagnetic structure. DPPH shows a strong absorption band at 517 nm due to its odd electron and the solution in alcohol appears a deep violet color but the absorption vanishes as the electron pairs off. The resulting decolorization is stoichiometric based on the number of electrons taken up in the reaction. About 0.5 mM alcoholic solution of DPPH is densely colored, and at this concentration, the Lambert-Beer law is obeyed over the useful range of absorption [9]. The unpaired free electron on the nitrogen atom in DPPH is reduced by receiving a hydrogen atom from antioxidants. Due to obtaining erroneous results, the original Blois method has been modified to bring out accuracy. It has been recommended to use the plastic cuvettes as it does not interfere with the methanolic or ethanolic extracts of the sample [10]. The initial DPPH concentration (50–100 μM) should give absorbance values <1.0. The stock solution of DPPH slowly deteriorates; thus, using an automatic burette in a nitrogen atmosphere is recommended for minimizing the loss of free radical activity [9].

In addition, a variable range of absorption maximum such as 515 nm [11,12], 516 nm [13], 517 nm [14,15], 518 nm [16], 520 nm [17], and 546 nm for determining TAC using DPPH has been noticed [18]. The other improvement in the method includes an incubation time because DPPH takes time to interact with the weak antioxidants. The incubation time of DPPH with samples depends on the type of samples used as the later have varied range of antioxidants that may show different rate of reaction [19]. Besides the above modifications, still pitfalls exist related to instability and inaccuracy in estimating the TAC using DPPH [20]. First, the problem regarding the assay is with absorption maximum wavelength and the second problem is in getting stable and accurate replication values. It is because the absorbance increases with time and sometimes a negative absorbance is also obtained [20]. This problem could be with the sample incubation time (at 515–546 nm) with DPPH solution with different concentration (25–100 ppm) as proposed in literature [11-18]. We tried to modify the existing method of DPPH assay to solve above issues basically by modifying the concentration of DPPH, time of incubation of DPPH with sample after determining its absorption maximum.

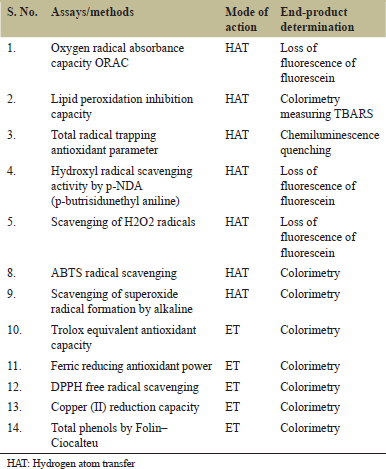

Table 1: Assay methods employed to measure reactive oxygen species or oxidative stress status. [Click here to view]

2. MATERIALS AND METHODS

2.2. DPPH Stock Solution and Tissue Extraction

The DPPH stock solution was prepared in methanol at a concentration of 7.5 × 10-² M. The wavelength was scanned within a range of 400–800 nm to find out the absorption maxima and it was determined to be 516 nm [Figure 1]. To validate the TAC, ascorbic acid (100 µM) was used as a positive control against the tissue homogenates. The fish Heteropneustes fossilis was procured from the local markets of Bhubaneswar, Odisha, India, for this experiment. The muscle, gill, liver, and accessory respiratory organ of the fish were dissected out immediately after the fishes were sacrificed using the protocols of Institutional Ethics Committee.

A 10% tissue homogenates of muscle, gill, liver, and accessory respiratory organ were prepared in 50 mM phosphate buffer containing 2 mM EDTA, pH-7.4 using pre-chilled mortar and pestle. The tissue homogenate obtained was collected as post-nuclear fraction [21]. The homogenates were then centrifuged at ×1000 g for 5 min at 4°C to obtain the final tissue supernatant extract that was used for the determination of TAC of tissues. The reaction mixture contained 1.6 mL of methanol with 200 µL of freshly prepared DPPH solution and tissue supernatant. About 200 µL of the obtained supernatant was incubated with 1.8 mL of 1.35 × 10-³ M (7.5 × 10-² M of 200 µL in 1.6 mL methanol) DPPH in methanol. The final concentration of DPPH in the 2 mL of the reaction mixture was 1.5 × 10-³ M.

The reaction was initiated after adding 200 µL of the tissue sample. The mixture was centrifuged (model 5430R Eppendorf, Germany) at 6000 rpm for 5 min at 4°C to pellet down the debris. DPPH-treated tissue samples were incubated (the incubation hereafter is defined as the incubation of DPPH with ascorbic acid as positive control or incubation of DPPH with tissue extract) for 5, 10, 20, 30, 60, and 120 min in dark at room temperature and the absorbance of the samples was recorded after the above time intervals. The supernatant was collected and incubated for 20 min at room temperature and absorbance was recorded at 516 nm. The activity was then expressed as a percent of inhibition of absorbance, that is, $\mathrm{(}\mathrm{Control}\mathrm{OD}\mathrm{-}\frac{\mathrm{Control}\mathrm{OD}\mathrm{-}\mathrm{Sample}\mathrm{OD}}{\mathrm{Control}\mathrm{OD}}\times 100$ [22]. Data (n = 3) were presented as mean ± SEM and subjected to ANOVA followed by Duncan new multiple range test to accept the statistical significance level at P < 0.05.

Figure 1: Wavelength scan of 2,2-diphenyl-1-picrylhydrazyl showing the absorption maxima (Amax) at 516 nm. [Click here to view]

3. RESULTS AND DISCUSSION

The absorbance of 75 µM DPPH in methanol was ~1 (1.0672) at 516 nm. It was obtained after scanning it within the visible range, that is, from 400 to 800 nm [Figure 1]. The result of the present study reflects that ascorbic acid when used as positive control with DPPH, an increase in inhibition activity for TAC, that is, PID was noticed till 30 min, that is, 98.8% inhibitory effect by ascorbic acid. Therefore, the working condition of the assay system was confirmed. Incubation of DPPH with ascorbic acid for 60 and 120 min was resulted in significant decline of absorbance up to 96.6% and 94.8%, respectively [Figure 2a]. Ascorbic acid had also showed inhibition of 98.5% DPPH level at the initial time period of incubation (10 min) which was further increased to 98.8% at 30 min incubation time period.

The DPPH inhibitory effect in muscle tissue extract was observed up to 60 min incubation time period and 76% inhibition efficiency was observed by the tissue. The inhibition activity was alleviated after 60 min and was 64% at 120 min incubation time [Figure 2b]. The effective time of incubation for the muscle tissue was at 20 min [Figure 3]. About 71% DPPH inhibitory efficiency of accessory respiratory organ was noticed after 20 min of incubation that was retained until 30 min incubation time. At 60 min, it starts to decline and finally reached to 67.9 % inhibition PID value as compared to about 71% PID value obtained at 30 min incubation time [Figure 2c]. Therefore, effective time of incubation for the accessory respiratory organ was 30 min [Figure 3]. The DPPH scavenging activity by the gill tissue extracts exhibited 75% PID value up to 20 min incubation. The inhibitory action starts to decrease from 30 min and declines to 59% at 120 min incubation time [Figure 2d]. From the time line incubation for the gill tissue, the effective radical scavenging activity was observed at 20 min [Figure 3].

Figure 2: The radical scavenging activity of ascorbic acid and different tissues plotted in Y-axis against time of incubation in X-axis. Data are presented as mean ± S.E.M (n = 10). (a) Percentage inhibition of 2,2-diphenyl-1-picrylhydrazyl (DPPH) by ascorbic acid at different incubation time intervals, (b) percentage inhibition of DPPH by methanolic extracts of muscle tissues at different incubation time intervals, (c) percentage inhibition of DPPH by methanolic extracts of accessory respiratory organ tissues at different incubation time intervals, (d) percentage inhibition of DPPH by methanolic extracts of muscle tissues at different incubation time intervals, (e) percentage inhibition of DPPH by methanolic extracts of liver tissues at different incubation time intervals. Data (n = 3) were presented as mean ± SEM and subjected to ANOVA followed by Duncan new multiple range test to accept the statistical significance level at P < 0.05. [Click here to view]

Figure 3: Comparative radical scavenging activity of all tissues of Heteropneustes fossilis plotted at different incubation time. Red arrow mark shows the effective time of incubation which exhibits maximal inhibitory effect for different tissues, that is, 20 min for muscle along with gill tissues and 30 min for accessory respiratory organ and liver tissues. Data (n = 3) were presented as mean ± SEM and subjected to ANOVA followed by Duncan new multiple range test to accept the statistical significance level at P < 0.05. [Click here to view]

Liver extract showed a DPPH PID value 49.9% at 10 min incubation and the value was remained unchanged till 30 min incubation [Figure 2e]. The highest inhibitory effects were exhibited by muscle tissue extract and lowest by liver tissue among all tissues considered, that is, accessory respiratory organ, gill, liver, and muscle [Figure 3a-f]. The results infer that the muscle possesses more radical scavenging potentials than other tissues or due to the pale red color of the liver tissue extract its PID value was low. The most stable and effective inhibitory effect was observed in a range of incubation time of 10 min, 20 min, and 30 min in different tissues [Figure 4b-d]. After 30 min of incubation, all the tissues showed variable significant decline in inhibitory activity recorded up to 60–120 min incubation [Figure 4e-f]. The incubation time period allows the small antioxidant molecules to bind and reduce the DPPH radical.

H. fossilis is a fish of high nutritional value recommended to patients [23-26]. This is a hardy fish and therefore can be used as for various eco-physiological studies including OS physiology [2,27-29]. TAC is an important parameter in the above studies. On the other hand, incomplete oxidation of oxygen and nutrients due to stress may result in deteriorating the nutritional quality of the fish. As a protective shield, antioxidants act against the free radicals generated due to auto-oxidation by intervening one of the three steps followed by free radicals, that is, initiation, propagation, and termination [30]. Therefore, estimating the accurate value of TAC or PID using DPPH as stable free radical in animals in general and in the fish H. fossilis in particular is important.

To quantify the TAC, many methods are proposed with their merits and demerits. Therefore, still problems exist in in determining the accurate value of TAC using DPPH method. A lot of queries and pitfalls have been reported regarding the assay method involving DPPH [20]. Determining TAC using DPPH is a simple, robust, and inexpensive method to determine the antioxidant activity by spectrophotometric method. The fluctuations in getting the absorbance in the assay have been considered as major drawback. Therefore, an attempt was made to get a stable and modified method for determining the activity consistently. In addition, it was also noticed that different tissues needed variable time of incubation with DPPH to give the accurate results as they possess different types and quantity of radical scavenging molecules [2,26-29]. The advantage of this method is that DPPH is allowed to react slowly with the weak antioxidants by giving an incubation time, and in the current study, the incubation time was standardized to be 30 min at DPPH concentration of 75 µM in 2 mL reaction volume.

Figure 4: The radical scavenging activity in terms of percentage inhibition of 2,2-diphenyl-1-picrylhydrazyl for different tissues with respect to ascorbic acid at different time intervals (a) 0 min, (b) 10 min, (c) 20 min, (d) 30 min, (e) 60 min, and (f) 120 min. Data (n = 3) were presented as mean ± SEM and subjected to ANOVA followed by Duncan new multiple range test to accept the statistical significance level at P < 0.05. [Click here to view]

4. CONCLUSION

Results of the present study indicate that the absorption maximum of DPPH was 516 nm as compared to the suggested absorption maxima ranging from 515 to 546 nm. The optimum final concentration of DPPH in 2 mL reaction volume with 200 µL tissue extract was suggested to be 1.35 µM. The incubation time of DPPH with tissue extracts was tissue specific in H. fossilis and was ranged from 20 to 30 min. Following the standardized method in the current work, muscle had 76% PID value at 20–60 min incubation followed by gill (71% PID, 30 min incubation) and liver (49.9% PID, 30 min incubation) tissues. Results of the present study suggest that determination of absorption maxima, the incubation time of tissue extracts with particular concentration of DPPH are important and need to be determined accurately to get stable results.

5. AUTHOR CONTRIBUTIONS

All authors made substantial contributions to conception and design, acquisition of data, or analysis and interpretation of data; took part in drafting the article or revising it critically for important intellectual content; agreed to submit to the current journal; gave final approval of the version to be published; and agree to be accountable for all aspects of the work. All the authors are eligible to be an author as per the international committee of medical journal editors (ICMJE) requirements/guidelines.

6. FUNDING

There is no funding to report.

7. CONFLICTS OF INTEREST

The authors report no financial or any other conflicts of interest in this work.

8. ETHICAL APPROVALS

Not applicable.

9. PUBLISHER’S NOTE

This journal remains neutral with regard to jurisdictional claims in published institutional affiliation.

REFERENCES

1. Halliwell B, Gutteridge JM. Free Radicals in Biology and Medicine. 3^rd ed. New York, USA: Oxford University Press; 2001.

2. Paital B, Panda SK, Hati AK, Mohanty B, Mohapatra MK, Kanungo S, et al. Longevity of animals under reactive oxygen species stress and disease susceptibility due to global warming. World J Biol Chem 2016;7:110-27. CrossRef

3. Frankel EN, Finley JW. How to standardize the multiplicity of methods to evaluate natural antioxidants. J Agric Food Chem 2008;56:4901-8. CrossRef

4. Pisoschi A, Negulescu G. Methods for total antioxidant activity determination: A review. Biochem Anal Biochem 2012;1:106. CrossRef

5. Kedare SB, Singh RP. Genesis and development of DPPH method of antioxidant assay. J Food Sci Technol 2011;48:412-22. CrossRef

6. Alam MN, Bristi NJ, Rafiquzzaman M. Review on in vivo and in vitro methods evaluation of antioxidant activity. Saudi Pharm J 2013;21:143-52. CrossRef

7. Marxen K, Vanselow KH, Lippemeier S, Hintze R, Ruser A, Hansen UP. Determination of DPPH Radical oxidation caused by methanolic extracts of some microalgal species by linear regression analysis of spectrophotometric measurements. Sensors (Basel) 2007;7:2080-95. CrossRef

8. Gomes A, Fernandes E, Lima JL. Fluorescence probes used for detection of reactive oxygen species. J Biochem Biophys Methods 2005;65:45-80. CrossRef

9. Blois MS. Antioxidant determinations by the use of a stable free radical. Nature 1958;181:1199-200. CrossRef

10. Bondet V, Brand-Williams W, Berset C. Kinetics and mechanisms of antioxidant activity using the DPPH free radical method. LWT Food Sci Technol 1997;30:609-15. CrossRef

11. Gómez-Alonso S, Fregapane G, Salvador MD, Gordon MH. Changes in phenolic composition and antioxidant activity of virgin olive oil during frying. J Agric Food Chem 2003;51:667-72. CrossRef

12. Lebeau J, Furman C, Bernier JL, Duriez P, Teissier E, Cotelle N. Antioxidant properties of di-tert-butylhydroxylated flavonoids. Free Radic Biol Med 2000;29:900-12. CrossRef

13. Schwarz K, Bertelsen G, Nissen LR, Gardner PT, Heinonen MI, Hopia A, et al. Investigation of plant extracts for the protection of processed foods against lipid oxidation. Comparison of antioxidant assays based on radical scavenging, lipid oxidation and analysis of the principal antioxidant compounds. Eur Food Res Technol 2001;212:319-28. CrossRef

14. Lu Y, Yeap Foo L. Antioxidant and radical scavenging activities of polyphenols from apple pomace. Food Chem 2000;68:81-5. CrossRef

15. Zhu QY, Hackman RM, Ensunsa JL, Holt RR, Keen CL. Antioxidative activities of oolong tea. J Agric Food Chem 2002;50:6929-34. CrossRef

16. Leitão GG, Leitão SG, Vilegas W. Quick preparative separation of natural naphthopyranones with antioxidant activity by high-speed counter-current chromatography. Z Naturforsch C J Biosci 2002;57:1051-5. CrossRef

17. Kim JK, Noh JH, Lee S, Choi JS, Suh H, Chung HY, et al. The first total synthesis of 2,3,6-tribromo-4,5-dihydroxybenzyl methyl ether (TDB) and its antioxidant activity. Bull Korean Chem Soc 2002;23:661-2. CrossRef

18. Tang Y, Debnath T, Choi EJ, Kim YW, Ryu JP, Jang S, et al. Changes in the amino acid profiles and free radical scavenging activities of Tenebrio molitor larvae following enzymatic hydrolysis. PLoS One 2018;13:e0196218. CrossRef

19. Yepez B, Espinosa M, López S, Bolaños G. Producing antioxidant fractions from herbaceous matrices by supercritical fluid extraction. Fluid Phase Equilib 2002;194-197:879-84. CrossRef

20. Available from: https://www.researchgate.net/topic/DPPH. [Last accessed on 2021 Jan 12].

21. Paital B, Guru D, Mohapatra P, Panda B, Parida N, Rath S, et al. Ecotoxic impact assessment of graphene oxide on lipid peroxidation at mitochondrial level and redox modulation in fresh water fish Anabas testudineus. Chemosphere 2019;224:796-804. CrossRef

22. Singh RP, Chidambara Murthy KN, Jayaprakasha GK. 2002. Studies on the antioxidant activity of pomegranate (Punica granatum) peel and seed extracts using in vitro models. J Agric Food Chem 2002;50:81-6. CrossRef

23. Paital B. Nutraceutical values of fish demand their ecological genetic studies: A short review. J Basic Appl Zool 2018;79:1-11. CrossRef

24. Bala A, Panda F, Pati SG, Das K, Agrawal PK, Paital B. Modulation of physiological oxidative stress and antioxidant status by abiotic factors especially salinity in aquatic organisms. Comp Biochem Physiol C Toxicol Pharmacol 2021;241:108971. CrossRef

25. Paital B. Antioxidant and oxidative stress parameters in brain of Heteropneustes fossilis under air exposure condition; role of mitochondrial electron transport chain. Ecotoxicol Environ Saf 2013;95:69-77. CrossRef

26. Paital B. Modulation of redox regulatory molecules and electron transport chain activity in muscle of air breathing fish Heteropneustes fossilis under air exposure stress. J Comp Physiol B 2014;184:65-76. CrossRef

27. Giraud-Billoud M, Rivera-Ingraham GA, Moreira DC, Burmester T, Castro-Vazquez A, Carvajalino-Fernández JM, et al. Twenty years of the ‘Preparation for Oxidative Stress’ (POS) theory: Ecophysiological advantages and molecular strategies. Comp Biochem Physiol A 2019;234:36-49. CrossRef

28. Paital B, Bal A, Rivera-Ingraham GA, Lignot JH. Increasing frequency of large-scale die-off events in the Bay of Bengal: Reasoning, perspectives and future approaches. IJMS Indian J Geo Mar Sci 2018;47:2135-46.

29. Chainy GB, Paital B, Dandapat J. An overview of seasonal changes in oxidative stress and antioxidant defence parameters in some invertebrate and vertebrate species. Scientifica (Cairo) 2016;2016:6126570. CrossRef

30. Cui K, Luo X, Xu K, Ven Murthy MR. Role of oxidative stress in neurodegeneration: Recent developments in assay methods for oxidative stress and nutraceutical antioxidants. Prog Neuropsychopharmacol Biol Psychiatry 2004;28:771-99. CrossRef
