Sensitive and stable ethanol biosensor development based on Acetobacter aceti biofilm for halal detection of food and beverages


Ninik Triayu Susparini1, Zaenal Abidin1, Dyah Iswantini1, 2, Novik Nurhidayat3

  Author Affiliations


Abstract

A highly sensitive ethanol biosensor based on Acetobacter aceti biofilm, which contains pyrroloquinoline quinone-alcohol dehydrogenase enzyme for halal detection in food and beverages, has been developed. In this study, A. aceti cells were purified by determining the conditions of growth time, incubation temperature, and pH to suppress the yeast growth. Selection of optimum conditions for biofilm formation was also carried out to obtain a stable sensor operation. The optimum biofilm formation was 14 days. The performance of biosensor was investigated by the cyclic voltammetry technique. Linear range, sensitivity, limit of detection (LOD), and limit of quantification (LOQ) were found to be 5 × 10−5–3 × 10−4 %, 43,076 µA %−1, 2.32 × 10−5, and 7.03 × 10−5 %, respectively. The repeatability of biosensor was tested in 1 × 10−5 − 1% ethanol concentration and the relative standard deviation was 1.08% (for n = 7). The stability studies have shown that the cyclic voltammetry response of biosensor to ethanol leave the act of 98.99% at the 7 week. Thus, the developed biosensor is promising to be used for simple analysis of halal products and has been tested on real sample.

Keywords:

Ethanol, Biosensor, A. aceti, Biofilm, PQQ-ADH, Halal.



Citation: Susparini NT, Abidin Z, Iswantini D, Nurhidayat N. Sensitive and stable ethanol biosensor development based on Acetobacter aceti biofilm for halal detection of food & beverages. J Appl Biol Biotech. 2019;7(06):40-47. DOI: dx.doi.org/10.7324/JABB.2019.70607


Copyright: Author(s). This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License, which permits non-commercial re-use, distribution, and reproduction in any medium, provided the original work is properly cited.

References

1. LPPOM MUI. Panduan Umum Sistem Jaminan Halal. Lembaga Pengkajian Pangan Obat-Obatan Dan Kosmetika Majelis Ulama Indonesia, Jakarta, pp. 1-36, 2008.

2. Alzeer J, Hadeed KA. Ethanol and its Halal status in food industries. Trends Food Sci Technol 2016;58:14-20. https://doi.org/10.1016/j.tifs.2016.10.018

3. Ghasemi-varnamkhasti M, Forina M. NIR spectroscopy coupled with multivariate computational tools for qualitative characterization of the aging of beer. Comput Electron Agric 2014;100:34-40. https://doi.org/10.1016/j.compag.2013.10.001

4. Park S, Kim JC, Lee HS, Jeong SW, Shim YS. Determination of five alcohol compounds in fermented Korean foods via simple liquid extraction with dimethyl-sulfoxide followed by gas chromatographymass spectrometry for halal food certification. LWT Food Sci Technol 2016;74:563-70. https://doi.org/10.1016/j.lwt.2016.08.030

5. Zachut M, Shapiro F, Silanikove N. Detecting ethanol and acetaldehyde by simple and ultrasensitive fluorimetric methods in compound foods. Food Chem 2016;201:270-4. https://doi.org/10.1016/j.foodchem.2016.01.079

6. Ismarani. Membran kulit telur sebagai biosensor asam urat sederhana, stabil, dan ramah lingkungan. J Agribisnis Pengemb Wil 2012;4(1): 36-48.

7. Tkac J, Vostiar I, Gorton L, Gemeiner P, Sturdik E. Improved selectivity of microbial biosensor using membrane coating. Application to the analysis of ethanol during fermentation. Biosens Bioelectron 2003;18(9):1125-34. https://doi.org/10.1016/S0956-5663(02)00244-0

8. Reshetilov AN, Trotsenko JA, Morozova NO, Iliasov PV, Ashin VV. Characteristics of Gluconobacter Oxydans B-1280 and Pichia Methanolica MN4 cell based biosensors for detection of ethanol. Process Biochem 2001;36:1015-20. https://doi.org/10.1016/S0032-9592(01)00141-8

9. Akyilmaz E, Dinçkaya E. An amperometric microbial biosensor development based on Candida Tropicalis yeast cells for sensitive determination of ethanol. Biosens Bioelectrons 2005;20:1263-9. https://doi.org/10.1016/j.bios.2004.04.010

10. Voronova EA, Iliasov PV, Reshetilov AN. Development, investigation of parameters and estimation of possibility of adaptation of Pichia angusta based microbial sensor for ethanol detection development. Anal Lett 2008;41:377-91. https://doi.org/10.1080/00032710701645729

11. Rank M, Gram J, Nielsen KS, Danielsson. On-line monitoring of ethanol, acetaldehyde and glycerol during industrial fermentations with Saccharomyces cerevisiae. Appl Microbiol Biotechnol 1995;42:813-7. https://doi.org/10.1007/BF00191174

12. Rotariu L, Bala C. New type of ethanol microbial biosensor based on a highly sensitive amperometric oxygen electrode and yeast cells new type of ethanol microbial biosensor based on a highly sensitive amperometric oxygen. Anal Lett 2003;36:37-41. https://doi.org/10.1081/AL-120024335

13. Šefčovičová J, Filip J, Mastihuba F, Gemeiner P, Tkac J. Analysis of ethanol in fermentation samples by a robust nanocomposite-based microbial biosensor. Biotechnol Lett 2012;34(6):1033-9. https://doi.org/10.1007/s10529-012-0875-x

14. Šefčovičová J, Filip J, Tkac J. Interfacing of microbial cells with nanoparticles: simple and cost-effective preparation of a highly sensitive microbial ethanol biosensor. Chem Pap 2015;69(1): 176-82. https://doi.org/10.1515/chempap-2015-0012

15. Adachi O, Miyagawa E, Shinagawa E, Matsushita K, Ameyama M. Purification and properties of particulate alcohol dehydrogenase from Acetobacter Aceti. Agric Biol Chem 1978;42(12):2331-40. https://doi.org/10.1271/bbb1961.42.2331

16. Matsushita K, Toyama H, Tonouchi N, Okamoto A. Acetic acid bacteria: ecology and psiology. Springer Nature, Tokyo, pp. 260-1, 2016. https://doi.org/10.1007/978-4-431-55933-7

17. Yakushi T, Matsushita K. Alcohol dehydrogenase of acetic acid bacteria: structure, mode of action, and applications in biotechnology. Appl Microbiol Biotechnol 2010;86(5):1257-65. https://doi.org/10.1007/s00253-010-2529-z

18. Pantanella F, Valenti P, Natalizi T, Passeri D, Berluti F. Analytical techniques to study microbial biofilm on abiotic surfaces. Ann Ig 2013;25:31-42.

19. Kuswandi B, Irmawati T, Hidayat MA, Jayus J, Ahmad M. A simple visual ethanol biosensor based on alcohol oxidase immobilized onto polyaniline film for halal verification of fermented beverage samples. Sens 2014;14(2):2135-49. https://doi.org/10.3390/s140202135

20. Houdt RV, Michiels CW. Role of bacterial cell surface structures in Escherichia coli biofilm formation. Res Microbiol 2017;156: 626-33 21. France DC. Anticorrosive influence of Acetobacter aceti biofilms on carbon steel. J Mater Eng Perform 2016;25(9):3580-9. https://doi.org/10.1007/s11665-016-2231-0

22. Alonso-Lomillo MA, Domínguez-Renedo O, Arcos-Martínez MJ. Screen-printed biosensors in microbiology; a review. Talanta 2010;82(5):1629-36. https://doi.org/10.1016/j.talanta.2010.08.033

23. Iswantini D, Nurhidayat N, Djukarsa IR. Electrochemical biosensor using acetobacter enzyme for detecting alcohol. Peprints 2016;1(16):1- 8. https://doi.org/10.20944/preprints201610.0107.v1

24. Kowser J, Aziz MG, Uddin MB. Isolation and characterization of Acetobacter aceti from Rotten Papaya. J Bangladesh Agric Univ 2015;13(2):299-306. https://doi.org/10.3329/jbau.v13i2.28802

25. Samuel O, Lina J, Ifeanyi O. Production of vinegar from oil-palm wine using Acetobacter aceti isolated from rotten banana fruits. Univ J Biomed Eng 2016;4(1):1-5

26. Zahoor T, Siddique F, Farooq U. Isolation and characterization of vinegar culture (Acetobacter aceti) from indigenous sources. Br Food J 2006;108(6):429-39. https://doi.org/10.1108/00070700610668405

27. Sharafi SM, Rasooli I, Beheshti-Maal K. Isolation, characterization and optimization of indigenous acetic acid bacteria and evaluation of their preservation methods. Iran J Microbiol 2010;2(1):41-8.

28. Trinh NTN, Masniyom P, Maneesri J. Optimization of culture conditions for Acetobacter aceti TISTR 102 in coconut water with supplementary banana juice. Int Food Res J 2016;23(3):1300-7.

29. Drysdale GS, Fleet GH. The effect of acetic acid bacteria upon the growth and metabolism of yeasts during the fermentation of grape juice. J Appl Bacteriol 1989;67(5):471-81. https://doi.org/10.1111/j.1365-2672.1989.tb02518.x

30. Salvado Z, Arroyo-Lopez FN, Guillamo JM, Salazar G, Querol A, Barrio E. Temperature adaptation markedly determines evolution within the genus saccharomyces. Appl Environ Microbiol 2011;77(7):2292-302. https://doi.org/10.1128/AEM.01861-10

31. Lisdiyanti P, Kawasaki H, Seki T, Yamada Y, Uchimura T, Komagata K. Identification of acetobacter strains isolated from Indonesian sources, and proposals of Acetobacter syzygii Sp. Nov., Acetobacter cibinongensis Sp. Nov., and Acetobacter orientalis Sp. Nov. J Gen Appl Microbiol 2001;47(3):119-31. https://doi.org/10.2323/jgam.47.119

32. Lee KW, Shim JM, Kim GM, Shin JH, Kim JH. Isolation and characterization of acetobacter species from a traditionally prepared vinegar. Microbiol Biotechnol Lett 2015;43(3):219-26. https://doi.org/10.4014/mbl.1504.04004

33. Maciel NOP, Pilo FB, Freitas LFD, Gomes FCO, Johann S, Nardi RMD, et al. The diversity and antifungal susceptibility of the yeasts isolated from coconut water and reconstituted fruit juices in Brazil. Int J Food Microbiol 2013;160(3):201-5. https://doi.org/10.1016/j.ijfoodmicro.2012.10.012

34. Chakraborty K, Saha SK, Raychaudhuri U, Chakraborty R. Vinegar production from vegetable waste: optimization of physical condition and kinetic modeling of fermentation process. Indian J Chem Technol 2017;24:508-16.

35. AOAC. Guidance for standard method performance requirements. AOAC International, United State (US), pp. 1-27, 2011.

36. Abed SE, Ibnsouda SK, Latrache H, Hamadi F. Scanning electron microscopy (SEM) and environmental SEM: suitable tools for study of adhesion stage and biofilm formation. INTECH Open Access Publish 2012;35(12):717-30.

37. Scholz F. Electroanalytical methods guide to experiments and applications. 2nd edition, Springer, London, UK, 2010.

38. Bilgi M, Ayranci E. Development of amperometric biosensors using screen-printed carbon electrodes modified with conducting polymer and nanomaterials for the analysis of ethanol, methanol and their mixtures. J Electroanal Chem 2018;823:588-92. https://doi.org/10.1016/j.jelechem.2018.07.009

39. Karthikeyan R, Ganesh V, Berchams S. Bio-electrocatalysis of Acetobacter aceti through direct electron transfer using a template deposited nickel anode. Catal Sci Technol 2012;2:1234-41. https://doi.org/10.1039/c2cy20022h

40. Karthikeyan R, Sathishkumar K, Murugesan M, Berchams S, Yegnaraman V. Bioelectrocatalysis of Acetobacter aceti and Gluconobacter roseus for current generation. Environ Sci Technol 2009;43:8684-9. https://doi.org/10.1021/es901993y

41. Anthony C. Pyrroloquinoline quinone (PQQ) and quinoprotein enzymes, a review. Antioxid Redox Signal 2001;3(5):757-73. https://doi.org/10.1089/15230860152664966

42. Ikeda T, Kano K. Bioelectrocatalysis-based application of quinoproteins and quinoprotein-containing bacterial cells in biosensors and biofuel cells. Biochim Biophys Acta 2003;1647:121-6. https://doi.org/10.1016/S1570-9639(03)00075-X

43. Samphao A, Kunpatee K, Prayoonpokarach S, Wittayakun J. An ethanol biosensor based on simple immobilization of alcohol dehydrogenase on Fe3 O4 @ Au nanoparticles. Electroanal 2015;27(12):2829-37. https://doi.org/10.1002/elan.201500315

44. Bilgi M, Sahin EM, Ayranci E. Sensor and biosensor application of a new redox mediator: rosmarinic acid modified screen-printed carbon electrode for electrochemical determination of NADH and ethanol. J Electroanal Chem 2018;813:67-74. https://doi.org/10.1016/j.jelechem.2018.02.012

45. Yang Y, Nam S, Lee WY. Tris(2,2′-bipyridyl)ruthenium(II) electrogenerated chemiluminescence ethanol biosensor based on ionic liquid doped titania-nafion composite film. Microchem J 2018;142:62-9. https://doi.org/10.1016/j.microc.2018.06.016

/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/

1. INTRODUCTION

The use of ethanol as a solvent in various industrial sectors, especially food and beverages, has become a major controversy in halal product analysis for the countries with the majority of muslim consumers. Every ethanol produced by anaerobic fermentation with concentration more than 1% is considered as Haram (prohibited), while ethanol produced naturally and less than 1% of its halal status is tolerable [1,2]. The presence of high levels of ethanol compounds in foods can cause poisoning, depression, mutation in tumor suppressant genes, hence the main trigger of the risk of colon and esophageal cancer [2].

Therefore, a proper technique is needed to detect its halal. The technique commonly used to measure ethanol content in food and beverages includes infrared spectroscopy [3], gas chromatography-mass spectroscopy [4], and fluorometry [5]. Although quantitatively those methods are quite accurate for practical reasons, they are less supportive in samples preparation and tools operation. Biosensor application is one of the solutions for developing ethanol detection devices that requires easily sample preparation, to use, sensitive, fast, and inexpensive.

The selection of bioreceptor components are a very crucial in making biosensors. Biosensor is a device that uses biological components as their bioreceptors [6]. Microbial cells are promising bioreceptors because there is no need to isolate enzymes, coenzyme, and cofactors already in the system, so enzymes are more stable in their natural environment within the cell [7]. Some microbes used as ethanol bioreceptors have been reported, including Pichia methanolica [8], Candida tropicalis [9], and Pichia angusta [10] as the producer of alcohol oxidase (AOX) enzymes. In addition, Saccharomyces cerevisiae [11], Saccharomyces ellipsoideus [12], and Gluconobacter oxydans [13,14] as a producer of alcohol dehydrogenase (ADH) enzymes. Acetobacter aceti is one of the microbes that has the potential to be used as an ethanol bioreceptor, because it has an ADH enzyme bound to pyrroloquinoline quinone (PQQ) which can convert ethanol to acetaldehyde [15]. In this study, used bacterial culture with K5 code obtained from the Indonesian Institute of Sciences (LIPI) collection. The culture has been isolated from the coconut from Indonesia. However, based on the results of preliminary tests with microscope observations, A. aceti has a susceptible risk of growing together with yeast as a contaminant. So, the purity of isolated bacteria becomes an important focus to make sure that the specific enzymatic reaction produced only comes from A. aceti. The PQQ-ADH enzyme of A. aceti has a higher ability to convert ethanol to acetaldehyde compared to the PQQ-ADH enzyme in G. Suboxydans [16]. The position of the enzymes that are on the periplasm [17] makes A. aceti cells react quickly to ethanol so that they are predicted to produce sensitive measurements. In order to keep live for a long time, A. aceti is formed into a biofilm so that the activity of the enzyme inside is relatively stable.

The biofilm is a community of bacterial cells encapsulated in an extracellular polymeric substance synthesized by these bacteria and attached to biotic and abiotic surfaces [18]. In previously study, simple visual detection biosensor based on AOX enzyme immobilized onto polyaniline film had been successfully created. It could last up to 7 weeks at storage temperature of 4°C, with 90.5% activity [19], whereas in this study, we wanted to maximize the ability of the bacteria themselves have forming polymers naturally. Planktonic bacteria can form biofilms in five stages, including attachment or colonization (I), growth of biofilm (II) maturation I (III), maturation II (IV), and erosion (V) [20]. Among the five stages, the maturation stage is the most stable stage where biofilms are well formed without the release of planktonic bacteria which is deposited on the abiotic surface. Well, the biofilms formed can protect cells from various external influences, such as changes in temperature and pH, so that enzyme activity is more stable. Acetobacter aceti bacteria can form a strong biofilm [21], but the formation time until the maturation stage is unknown. In this study, the optimum time and conditions for biofilm formation are important parameters that need to be known. The purpose of this study is to develop sensitive and stable biosensors based on biofilm A. aceti for halal analysis of food and beverages containing ethanol, especially at the levels below 1%. Screen printed carbon electrode (SPCE) is chosen as the basic electrode because of its simple use, low reagent consumption, fast response due to a specific surface area, good reliability, and reproducibility [22]. In addition, a flat SPCE surface allows A. aceti biofilm to form.


2. MATERIALS AND METHODS

2.1. Material

A culture with the K5 code containing A. aceti bacteria isolated from coconut water was obtained from LIPI, Bogor. Mannitol, agar powder, yeast extract, and peptone was obtained from Himedia (India). NaH2PO4, Na2HPO4, glucose, sucrose, fructose, sodium benzoate, ascorbic acid, 96% ethanol, methanol, 0.5 M HCl, 3% H2O2 was obtained from Merck (Germany). Crystal violet, lugol, and safranin was obtained from Sigma-Aldrich (USA). All solutions in the experiment were prepared just before their use. Commercial disposable electrodes SPCE obtained from DropSens (Spain) are used as standard electrodes.

2.2. Identification and Purification of A. aceti

The purification process was carried out in several stages, including breeding of bacterial culture, selection of the optimum incubation time, selection of incubation temperature, and selection of the growth pH. One loop of K5 culture containing A. aceti bacteria and yeast were suspended to a concentration of 107 in 50 mM sterile phosphate buffer solution (PBS) pH 6.8 (neutral) and pH 3 (adjust HCl), then vortex until homogeneous. One hundred microliter of bacterial suspension was spread over a solid medium of acetobacteria (0.5 g of yeast extract, 0.3 g of peptone, 2.5 g of mannitol, 1.5 g of agar powder in 100 ml of distilled water) as a bacterial selective medium of Acetobacter sp. [23]. Plates are incubated for 24, 48, and 72 hours. The incubation temperature was varied at 30°C and 37°C. Purification was carried out repeatedly until a single colony with milky white, smelled of acetic acid growth. Isolates were identified based on biochemical tests and cell morphological characteristics. Biochemical tests were carried out by glucose fermentation (1% and 5%) [24,25], ethanol fermentation (1% and 3%) [2426], and catalase tests (3% H2O2) [24,27], while cell morphology was observed based on the appearance of cells under a microscope with 1,000× magnification (Nikon YS100) after gram staining.

2.3. Selection the Optimum Conditions for Biofilm Formation

The selection parameter was the concentration of bacteria measured by its optical density (OD) and the duration of biofilm formation before the measurement. Bacterial isolates that had been grown in acetobacteria liquid medium and washed with PBS pH 6.8, then their OD was measured with a microplate reader (BIO-RAD iMark) at λ = 595 nm with a variation range 0.5, 1.0, 1.5, 2.0, 2.5, and 3.0 Each variation of OD was measured by electrochemical activity, 3 days after dropping, then the average value and standard deviation of current were calculated. The highest current with the lowest deviation was chosen as OD that presented the best response. Selection of the duration of biofilm formation was carried out to determine the time needed for planktonic A.aceti forming biofilms This selection was led based on variations in storage time, namely, 3, 5, 8, 10, and 14 days and variations in the addition of nutrients both of distilled water and liquid acetobacteria media. The suspension of A. aceti that had been measured for its OD value was deposited on the SPCE surface. Nutrients such as distilled water and liquid acetobateria media were added separately on different SPCE as the last drop. Without the addition of nutrients used as the negative control, SPCE was deposited with bacteria and then stored in an airtight container at the room temperature during a varied storage time period.

2.4. Biosensor Making

A total of 10 loops of bacterial isolates grown in solid medium were re-grown in 50 ml of acetobacteria liquid medium [23]. Incubation was carried out aerobically, for 18 hours at the room temperature[28]. The growing suspension, then was washed using PBS pH 6.8 50 mM by stirring using vortex and centrifugation at 8,000 × g for 5 minutes, three times. The collected suspension was being measured to find its OD value using a microplate reader (BIO-RAD iMark). Ten microliter of A. aceti suspension was dripped on the surface of SPCE (Dropsen, Spain) periodically up to 10 times dripping [23]. The suspension that had been deposited above the SPCE surface was then left in an impermeable container for 14 days at the room temperature before the measurement.

2.5. Electrochemical Measurement

Electrochemical measurements were taken by the cyclic voltammetry method using eDAQ potentiostat (Ecorder 410) equipped with Echem v2.1.0 software. SPCE used, consists of a work electrode is carbon, a reference electrode is silver, and an auxiliary electrode is carbon, were printed on the ceramic material. The overall dimensions of the electrode were 3.4 × 1.0 × 0.5 cm with a working electrode 4 mm in diameter (DropSens, Oviedo, Spain). Measurements were made in the range of −0.9 to + 1.2 V with a scan rate 200 mV/s. Initial measurements were made for 1% ethanol sample, 1% methanol, and 1% H2O2 to characterize the enzymatic catalysis reaction produced. The analytic biosensor performance was validated in the range of +0.1–1.2 V with same scan rate. Analytical performance was evaluated based on linearity, limits of detection, limits of quantization, repeatability, sensitivity, selectivity, and stability of biosensors.

2.6. Real Sample

Measurements in real samples were made by three times repetition (n = 3), in the range of +0.1–1.2 V using beer pilsener with a content of ±4.7%. Beer samples were diluted using PBS pH 6.8 50 mM to ±1%.


3. RESULTS AND DISCUSSION

3.1. Characteristic of A. aceti

The bacterial purification process aims to get a single colony of A. aceti which has potential to be used as bioreceptor for ethanol biosensor. The growth of acetic acid bacteria during the logarithmic phase might be affected by yeast species, such as Kloeckera apiculata, Candida stellata, and Saccharomyces cerevisiae [29]. For purification process, the used of breeding method is poured plate method. The principle of this technique is to reduce the concentration of bacteria, so that formed single colony is resulting of one cell division. From several variations of applied time incubation, 48 hours is the optimum time for A. aceti cells to divide until the stagnant phase (stationary phase), while more than that (72 hours) the growth of a single colony is no longer formed and is vulnerable to fungal contamination. In this case, even a single colony was formed, but, after observing its appearance with the microscope, it was still mixed with yeast, so the next step is to implement ideal growing conditions that produce A. aceti only.

The selection of incubation temperature was done to suppress the growth of yeast, especially in S. cerevisiae. At a temperature of 30°C, yeast was still susceptible to grow, while at a temperature of 37°C, yeast growth was relatively inhibited. These results are consistent with the results of a study proposed by Salvado et al. [30] which explains that most Saccharomyces sp. grow at temperatures below 30°C, while the S. cerevisiae have an optimum growth temperature at 32.5°C, nevertheless, some other yeast can still grow at 37°C even in small amount. Acetobacter aceti is acetic acid bacteria which can grow in acidic conditions. pH 3 was chosen because based on research explained before, these bacteria can still grow at pH 3–3.5 [31,32], while the average growth of yeast, especially which isolated from coconut water, can grow at pH above 4 [30,33]. In this study, cultures that are added to acidic conditions can effectively inhibit the growth of yeast and other contaminants, such as fungi. The formed colonies have fresh milky white color and acetic acid aroma. Isolates that have been purified then characterized using biochemical tests to make sure bacterial identity based on their physiological properties.

Bacterial identification was done to make sure that the growth bacteria were A. aceti. Based on morphological and gram staining characteristics of bacteria have an ellipsoidal form, straight, or slightly curved, single and red color (gram negative). Similar results were also obtained from Lisdiyanti et al. [31]. Acetobacter aceti is a group of Gram-negative bacteria that will maintain the red color of safranin when gram staining was done. The cell wall structure of Gram-negative bacteria is dominated by lipids as the outer membrane, while the peptidoglycan layer is located between the inner and outer membranes. When washing with ethanol, the outer layer of the cell wall, lipopolysaccharide, may dissolve with ethanol, therefore it cannot support the purple color of crystal violet. Addition of dye agent (safranin) makes bacteria become red (See Fig. 1).

Figure 1: Visualization of gram-stained bacteria.

[Click here to view]

Biochemical tests were done to strengthen the results of bacterial identification. Acetobacter aceti from purification showed positive results on glucose fermentation which anaerobically lasted for 24 hours at 37°C , ethanol fermentation which lasted for 120 hours at 30°C and catalase test using 3% H2O2. The results of the biochemical test are presented in Table 1. Acetobacter aceti used glucose as a carbon source for its growth process, so both 1% and 5% glucose bacteria can grow well forming white suspension. These results are consistent with the reported that the A. aceti reaction to glucose is positive [24,25]. Glucose fermentation can change the initial pH of the liquid medium from 6 to 4. In sugar fermentation, the decrease in pH is caused by the formation of lactic acid and CO2 as a result of a side reaction to the respiratory chain of A. aceti bacteria [16]. The effect of ethanol concentration is also observed in bacterial growth as well as its ability to produce acetic acid. The growth of bacteria in liquid media, which is added with 1% ethanol is relatively more than 3% ethanol. Nevertheless, A. aceti is relatively tolerant for 3% ethanol. Similar results were also reported [25,26]. Higher levels of ethanol provided poor growth effects. In this study, the process of fermenting ethanol to acetic acid which lasted for 5 days at 30°C can change the initial pH of liquid medium from 6 to 3. In ethanol fermentation, the decrease in pH is caused by the conversion of ethanol to acetic acid [34]. Acetobacter aceti reaction with 3% H2O2 produced bubbles indicating of positive tests [27]. H2O2 is an organic chemical compound which has strong oxidizing properties. This compound is catalyzed by the enzyme catalase at neutral pH. The bubbles are produced by decomposition of H2O2 into H2O and O2.

Table 1: Biochemical characteristics of purified A. aceti.

[Click here to view]

3.2. Acetobacter aceti Biofilm Activity

The process of the biofilm formation above the surface of SPCE was executed with six suspensions of bacterial OD variations in 0.5, 1.0, 1.5, 2.0, 2.5, and 3.0. Based on the results of measurements using the cyclic voltammetry technique, showed that the bacterial suspension with OD 3 had the best current response and consistency of enzymes secretion. This is related to the expression of enzymes produced by A. aceti biofilm above SPCE. The number of bacteria deposited on the SPCE surface, the more excreted enzymes will produce higher anodic currents. Furthermore, the results also showed that formed biofilm from OD 3 bacterial suspensions had relatively lowered random error values compared to the other five data. More bacterial cell numbers can produce more extracellular polymers so that the binding between bacterial cells by extracellular polymers get stronger. Extracellular polymers function as binding layers will protecting the bacterial colonies in them to be resistant to environmental conditions, so that the stability of the activity is maintained. Judging from the random error, % deviation standard obtained in the biosensor with OD 3 was quite low but has not been able to fulfill great sensor standards. A good repeatability of sensor was obtained when the standard deviation is less than 2.7% for analyzing measurements of at least seven times in the concentration of 1% [35]. The measurement results are presented in Table 2.

A consistent measurement value is obtained only if the formed biofilm perfectly above the SPCE surface to avoid ablation. Ablation is causing a large random errors value. In this study, 14 days is the optimum time of A. aceti biofilm formation, because the formed biofilm has reached the maturation stage in which the bacterial suspension is no longer in planktonic conditions, but it has formed a certain thickness of microcolony layer (maturation stage). It was shown by the absence of ablation from biofilm when it was enforced as much as 10 times or for 2 minutes. This layer is tightly bound by extracellular polymeric substances released by bacteria as a result of secondary metabolites. Variations in the addition of nutrients were also tested to see the effect on speed of biofilm growth. The addition of acetobacteria media over the suspension which deposited on SPCE surface can support the survival of bacteria. According to the theory, living colony in biofilms will get nutrients from the dead bacteria [36], but the died bacteria will not secrete enzymes, so even though the biofilm is physically deposited on top of SPCE, its activity will continue decline. Added nutrients at the last dropping before storage also serves to slow down the dispersion phase, so that the stability of biofilm-based sensors can last for a long time.

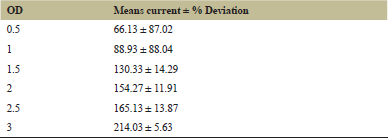

Table 2: Mean currents and random errors based on the variation of OD.

[Click here to view]

3.3. Biosensor Characterization

Characterization of biosensors was performed electrochemically using the cyclic voltammetry techniques. The cyclic voltammetry technique was chosen, because it has several advantages among others. The advantage of the cyclic voltammetry technique be able to detect peak currents for qualitative and quantitative analysis, and can be used to study the reversibility of electron transfer [37]. Characterization of biosensors was carried out to ensure that the produced current only came from the specific reaction between ethanol and the PQQ-ADH enzyme in A. aceti. Characterization was done by measuring 1% ethanol used an electrode (SPCE) without adding bacteria to ensure that produced current is only by a catalytic reaction. These results indicate that the pure SPCE electrode cannot oxidize ethanol which acts as an analyte, so the reaction is truly enzimatic reaction. Furthermore, biosensor characterization was taken by testing 1% ethanol, 1% methanol, and 1% H2O2. In some cases of biosensors, H2O2 is an intermediate product which compared with the amount of reagent. The current absence in 1% H2O2 indicates, the intermediate product is not formed. Checking for 1% methanol was done to find out the type of enzyme in A. aceti biofilm that reacted to ethanol. Methanol is also chosen, because these compounds usually appear in alcoholic fermentation processes. Acetobacter aceti has specific activity on short chain of alcohols except methanol [15]. Bilgi et al. [38] also compared the performance of ADH and AOX enzyme-based biosensors to ethanol, methanol, and their mixture. The result is shown that the AOX enzyme produces higher oxidation current toward methanol than ethanol at the same concentration, while ADH is more specific to ethanol. In this research, the methanol response of biosensors in the voltage range of −0.9 to +1.2 V was almost undetectable. The resulting peak was not clearly visible, with the shape almost equaling the blank (Fig. 2). The result confirms that the enzymatic reaction truely produced by PQQ-ADH enzymes. This clearly makes A. aceti more potential to be used as a bioreceptor, because it produces a specific reaction.

Detection of ethanol is carried out by measuring the oxidation current resulting from the reaction between the substrate and the PQQ-ADH enzyme contained in A. aceti biofilm as bioreceptor. Acetobacter aceti does not require mediators for the transfer of electrons, so it can be effective direct electron transfer [39,40]. The direct bioelectrocatalysis of A. aceti cells, because it has two cofactors that work simultaneously [41]. The enzyme consists of subunits I (adhA), II (adHB), and III (adHS) [17]. Redox reactions occur in subunits I. Subunit I consists of a ADH enzyme in the periplasmic which depends on 1 molecule PQQ as coenzyme and 1 molecule of heme c as a prosthetic group. PQQ functions is to increase catalytic activity, while heme c functions as mediator for electrons transfer to electrode [41,42]. Ethanol is oxidized by the enzyme to produce acetaldehyde. Reduction of PQQ to PQQH2 was produced two electrons. Then, electrons were transferred directly out of the membrane through heme c moiety. Heme c in A. aceti has an iron ion coordinated to porphyrin which responsible for electron transfer in some biological systems. So, this biosensor reaction is based on direct bioelectrocatalysis reaction. The substrate recognition reaction scheme is represented in Figure 3.

Figure 2: The reaction of A. aceti biofilm-based biosensors towards ethanol which is interpreted via cyclic voltammogram with υ = 200 mV s−1.

[Click here to view]

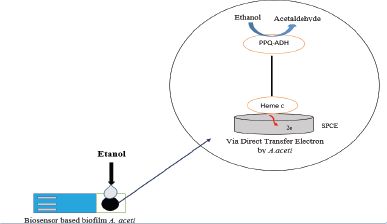

Figure 3: Schematic diagram of analyte recognition by bioreceptor. Ethanol oxidation reaction by PQQ-ADH enzyme.

[Click here to view]

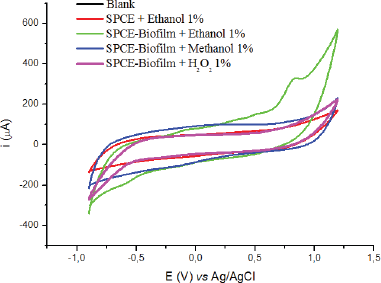

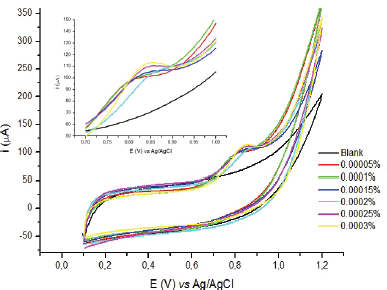

Figure 4: Cyclic voltamogram of dependent concentration and current with υ = 200 mV s−1.

[Click here to view]

3.4. Analytical Performance of the Biosensor

The biosensor that had been designed under optimum conditions was tested for analytic performance using the cyclic voltammetry techniques. The experimental conditions in analytical performance testing are similar to the testing of biosensor characteristics, but the used of potential range is shortened to +0.1–1.2 V because anodic current only appeared around 0.83–0.92 V. It aims to accelerate the reaction process and reduce the occurrence of fatigue of bacteria in producing enzymes. The longer scanning time might cause death to bacteria. The analytical performance of biosensor was summarized as follows. The linearity range used for measuring sensitivity, LOD and LOQ was from 0.00005% to −0.0003%. The determination coefficient (R2) value obtained was 0.9969, which means that as much as 99.69% of current changes are affected by increasing in ethanol concentration (Fig. 4). The obtained sensitivity was quite large, namely 43,076 μA%−1 or equal to 251.42 μA mM−1 (Fig. 5). The obtained detection and quantization limits were 2.32 × 10−5 and 7.03 × 10−5%, respectively. The existence of heme c moiety as quinohemoprotein predicted can be a link for the direct electron transfer between bacteria with electrodes. Thus, even without the addition of modifiers from other materials, A. aceti naturally has the potential to be used as a biosensor receptor because of the speed of the reaction.

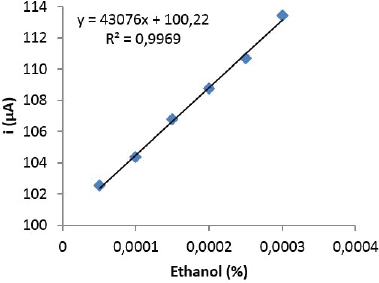

Figure 5: Linear regression curves relate ethanol concentration to oxidation currents with υ = 200 mV s−1.

[Click here to view]

Measurement repeatability was tested at seven times of ethanol solution concentration, i.e., 0.00001%, 0.0001%, 0.001%, 0.01, 0.1%, and 1% produced relative standard deviation (RSD) average value of 1.08%. The operational stability of biosensors was tested periodically for 7 weeks using 1% ethanol, three times repeated measurements (n = 3). The obtained voltammetric response up to 7 weeks left an activity of 98.99% (Fig. 6). Acetobacter aceti’s ability forming biofilm is able to support enzyme activity in bacteria both in short and long time intervals. In short time intervals, proven by repeatability measurements that produce RSD values 2.50 times smaller than the maximum limit set. It is known for measurements with 1% of ethanol, the RSD limit is 2.70%. In a long time interval, this biosensor is able to maintain its activity for up to 7 weeks with a decrease in activity is only 1.01%. Biosensor selectivity was tested on several matrices commonly found in foods, namely, glucose, fructose, sucrose, sodium benzoate, and ascorbic acid. For interference matrix, such as glucose, fructose, sucrose, and sodium benzoate, the biosensor performance was only selective toward ethanol, but less selective in the presence of ascorbic acid. Overall, biosensor based on A. aceti biofilm has good performance simple analysis. The results of several studies on ethanol biosensors can be summarized in Table 3.

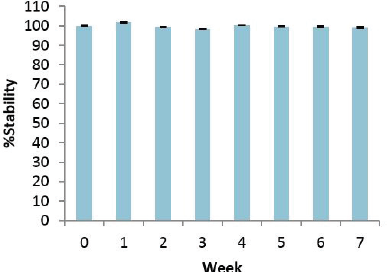

Figure 6: Bar diagram of ethanol biosensor stability.

[Click here to view]

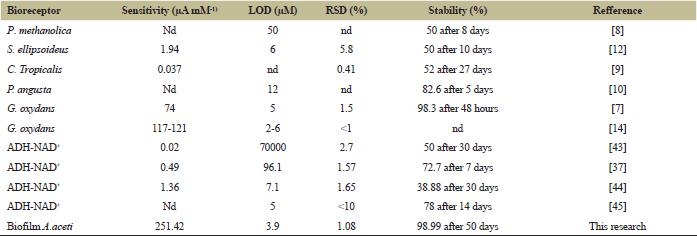

Table 3: Biosensors performace based on various bioreseptors.

[Click here to view]

3.5. Application in Real Sample

The measurements were done with the same conditions as analytical performance testing. The concentration of ethanol in the sample was determined using a calibration chart with the standard ethanol solution. Three measurements used the same biosensor and analyte resulted in an average ethanol concentration of 1.42% (v/v) with an RSD value of 0.31% (n = 3).

Quantitatively, the ethanol content obtained should be ±1% but based on the measurement of the recovery value obtained was greater. This is possible because of the effects of fermentation that occur during the beverage storage period. In pilsener beer, there is a sugar matrix which anaerobically can increase the ethanol concentration if is stored for a certain period of time. This phenomenon was also studied by researchers, by analyzing the effect of adding simple sugars (glucose, fructose, and sucrose) to 1% ethanol standard solution. After they had been stored anaerobically for 10 days, the existence of a sugars matrix are proven to increase the oxidation current from biosensor measurements. The graph can be seen in Figure 7.

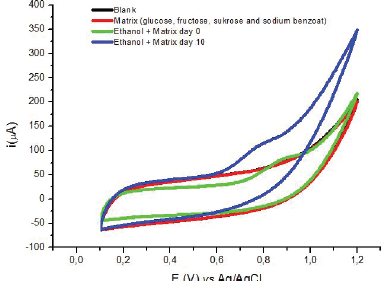

Figure 7: The effect of sugar fermentation in increasing the current of ethanol oxidation with υ = 200 mV s−1.

[Click here to view]


4. CONCLUSSION

In conclusion, the results from this study have confirmed that A. aceti cells have the potential for design biosensors for the sensitive determination of ethanol until 251.42 μA mM−1, especially at low concentrations. The enzymes position (in periplasm) and presence of heme two cofactors (PQQ and heme c) are a good synergy on the direct electron transfer process, so that little change in the analyte can be oxidized quickly. Electrochemically indicated by increasing current. In the form of biofilm, enzyme activity in cells only decreased by 1.01% for 50 days. So, naturally biofilm is able to maintain the stability of enzyme activity in cells. The manufactured biosensors were quite selective toward ethanol, in the presence of matrix which is commonly found in food, except ascorbic acid. So, there is needing to improve selectivity for eliminating ascorbic acid interferences. Overall, the manufactured biosensors have good performance.
