1. INTRODUCTION
Extracted pigments from living organism are termed biopigments [1]. Pigments are molecules that have color and are also materials that change the color of transmitted light due to wavelength-selective absorption. Coloring agents have been employed in foods, clothes, paintings, pharmaceuticals, cosmetics, and plastics. Color plays a prominent role in enhancing the esthetic appeal of foods [2] and other materials of commercial interest. The use of food colorants as an additive in the food industry is a significant factor for food manufacturers as well as consumers [3]. Due to the serious environmental and safety problems caused by many artificial synthetic pigments in food, cosmetics, textiles, and pharmaceutical products, research has concentrated on improving processes for the synthesis of safe and natural pigments from natural resources [4]. The demand for natural pigments has increased due to their applications in antioxidative activity, anticarcinogenicity, and positive effect on immune function [2]. There are many natural pigments, yet just a few are accessible in adequate amount for industrial use because they are extracted from fruits, plant flowers, and leaves [5]. Common natural colors that are extracted from plant sources include annatto, saffron, paprika, caramel, beetroot, and turmeric [2]. Colors occur naturally in nature and the microorganisms that can produce different pigments which bring out these colors are quite common. Food grade pigments such as carotenoids, melanin, flavins, quinones and specifically monascins, violacein, and indigo are produced by microorganisms [6]. Monascus, Streptomyces, and Serratia have been shown to produce pigments [5]. Some bacteria produce pigments as part of their normal metabolism. The specific color of the pigment is characteristic for each bacterium. Several organisms can produce pigments (often termed biopigments) which are important classes of their secondary metabolites. Biopigments can be obtained from two major sources, namely plants and microorganisms [7]. Microorganism pigments are preferred to those from plants due to their relative stability [8] and the availability of their cultivation technology [5,9]. Biopigments from plants have numerous shortcomings such as non-availability and instability against adverse pH, light, and low water solubility [10]. The various advantages of pigment production by microbes especially bacteria include independence from weather conditions, easy and faster growth in the cheap culture medium, and easy production of the pigments of different color shades. Pigments production by microorganisms is as at now one of the emerging fields of research to bring out their potentials for various industrial applications. In most previous studies on bacterial pigmentation, only a few out of so numerous bacteria that have been found to produce pigments have their pigments characterized and the bacteria identified to species level using biological molecular technology. There is a need, therefore, to study further pigments production by bacteria and to develop new strains that will produce a higher yield of pigments. Thus, the present study is designed to enhance pigment production potential of a bacterium strain through mutagenesis and then to genetically characterize its mutants.
2. MATERIALS AND METHODS
2.1. Serratia marcescens (GBB1) Source and Isolation
The bacteria strains were obtained from oxidation ponds of the Obafemi Awolowo University, Ile-Ife, Osun State (07.50907′, 004.51267′). The ponds were being used to treat the domestic sewage from students’ halls of residence and staff quarters before discharge and were located within the campus. Pour plate technique was adopted for the isolation of pigment-producing bacteria. 10-fold dilutions of the water samples were prepared with sterile distilled water ranging from 10−1 to 10−6. 1 ml of the diluted samples from 10−3 to 10−6 were inoculated on nutrient agar and glycerol-supplemented composed agar. The plates were incubated aerobically at 30 and 37°C for 24–48 h. The pure pigmented bacterial isolates were stored in a medium containing 50% glycerol at a temperature of 4°C.
2.2. Screening and Extraction of Pigment
A loopful of an 18 h old test isolate was inoculated into a 5 ml normal (0.85%) saline and was standardized to 0.5 McFarland (0.08–0.1 × 105) cells per ml in a colorimeter at optical density of 590 nm. 1 ml of standardized cells suspension of the isolates were used to inoculate the pigment-producing media. The media consists of 100 ml sterile nutrient broth in 250 ml conical flask. The broth mixture was incubated in a shaking incubator with the speed of 120 rpm for 24–48 h for pigment production.
Liquid culture medium was centrifuged at 7500 rpm for 20 min supernatants were discarded while bacterial cell pellets containing the pigments were extracted with 95% (v/v) methanol until the pellets became colorless. The bacterial cell pellets were washed in physiological saline and streaked on a nutrient agar plate to observe for growth and pigment production again (second generation) [11]. The pigment produced was estimated by the method described by Mekhael and Yousif, [12].
2.3. Molecular Characterization of the Isolate
The molecular analyses were carried out using molecular techniques and equipment available at the Bioscience Centre of the International Institute of Tropical Agriculture (IITA), Ibadan, Oyo State, Nigeria. Deoxyribonucleic acid (DNA) extraction from the bacterial isolates was carried out using a modified method of Trindade et al. [13]. Absorbance was measured at wavelengths of 260 nm and 280 nm. Absorbance quotient gives an estimate of DNA purity. DNA concentrations from the different bacterial isolates were determined with a Nanodrop spectrophotometer (Beckman Coulter) and adjusted to 25 ng/μl for polymerase chain reaction (PCR) amplification.
2.4. PCR Amplifications
PCR amplification was performed in a total volume of 25 μl containing 4 μl of the DNA solution, 0.4 μl of 10 mM dNTPs, 2 μl of 25 mM MgCl2, 1 μl of 10 pmol each of primer (forward 5’- CCAGCAGCCGCGGTAATACG -3’ and reverse 5’-ATCGGCTACCTTGTTACGACTTC -3’), 0.24 μl of Taq polymerase (1 U/μl) (Promega USA), and 5 μl of 5× PCR buffer. Sterile DNase free water was added to make a volume of 25 μl. The PCR amplicons were visualized using 1.5% agarose gel electrophoresis.
2.5. DNA Sequence Analysis
Purified amplicons were centrifugation at 9000 rpm before sequencing. ABI 3130xL Genetic Analyzer (Applied Biosystems, California, USA) available at the Bioscience Center of IITA, Ibadan, was used for the nucleotide sequencing. Sequence similarity search of the GenBank database was done using the NCBI Basic Alignment Search Tool (BLAST) program.
2.6. Mutagenesis Experiments
A stock solution (10 mg/ml) of mutagen (ethidium bromide) was prepared. Various concentrations (200–400 μg/ml) of ethidium bromide were used for the mutation of S. marcescens. 0.1 ml of standardized cells suspension and 0.1 ml of each concentration of ethidium bromide were inoculated into 9.8 ml of nutrient broth. The test tubes were then incubated at 30°C for 24 h. This was done to determine the subinhibitory concentration of the chemical agent on the different bacterial isolates [14,15]. 0.1 ml of the standardized culture was inoculated into 9.9 ml of nutrient broth, this serves as a control. At the end of incubation period, 0.1 ml of each subinhibitory concentration of the mutagen was serially diluted in 9.9 ml of nutrient broth and appropriate dilutions were plated on nutrient agar medium and incubated at 37°C for 24 h. The survival rate of each bacterial isolate in chemical mutagen used was calculated as follows:
Where, S = Survival rate of each isolate in chemical mutagen.
2.7. Random Amplified Polymorphic DNA (RAPD) Analysis
The ethidium bromide-induced mutants of bacterial isolate GBB 151 were subjected to RAPD analysis to determine the molecular relatedness of the various mutants and the wild type. The RAPD analysis was also carried out at the same Institute. Primers were obtained from Inqaba Biotechnological Industries Limited, Pretoria, South Africa. 10 different random primers, each 10 nucleotides long, were used for RAPD. Each tube of PCR mix composed of 50 ng DNA template, 1 μL of 5 μM a primer, 1.2 μL of 25 mM MgCl2, 2 μl of 10 mM dNTPs, 1 μl dimethyl sulfoxide, 0.2 μl of 2.5 U of Taq DNA polymerase (Promega, USA), 2.5 μl of 10× buffer, and ultrapure water 15.1 to make a total volume of 25 μl. PCR products were electrophoresed on 1.5% (W/V) agarose gels, in 1× Tris borate-EDTA buffer at 100 V for 5 h and then stained with ethidium bromide (1.0 μg/ml) [16]. Gels with amplification band profiles were visualized and photographed under UV light.
2.8. Statistical Analysis
All values were expressed as means and standard errors of means. The Students’ t-test was used for comparison of the experimental groups. The level of significance was set at P < 0.05 using one-way analysis of variance.
3. RESULTS AND DISCUSSION
The bacteria strain was identified as S. marcescens (GBB151). It shared 96% homology with S. marcescens KM093865. The wild bacterial isolate GBB151 cultured at 30°C produced maximal (413.9 unit/cell) pinkish-red pigment at 30 h of incubation. Production of pigments by several bacteria strains has been reported [5,6]. This result corroborates Linawati et al. [17] on the influence of environmental condition on the production of pigment by S. marcescens. They observed that the peak of pigment production was achieved at late stage of growth and that there was a progressive decline in the yield of pigment after 30 h of incubation. Mutagenesis experiment was carried out by treating S. marcescens conidial suspension with different doses of ethidium bromide for 24 h. Exposure of conidia to mutagen produced eight mutant strains (GBB151Ea, GBB151Eb, GBB151Ec, GBB151Ed, GBB151Ee, GBB151Ef, GBB151Eg, and GBB151Eh) of different morphological and biochemical characteristics. The different morphological characteristics of the mutants are shown in Figure 1. Seven of the mutants still retained its pigment producing potential while mutant GBB151Ed lost its ability to produce pigment. The pigment production by the wild type and mutants of GBB151 showed an impressive improvement in the latter than the former. There was a 5-fold increase in the pigment produced by mutant strain GBB151Eb (2008.5 unit/cell) to that of wild-type GBB151 (413.9 unit/cell) which was statistically significant at P ≤ 0.05. Furthermore, mutant GBB151Ec gave a 4-fold increase over the wild type. The results showed better performance by all the mutant strains than that obtained by the wild type in prodigiosin production. The influence of chemical mutagens on biopolymer producing strains was reported by Sreeju et al. [18]. Overexpression of cellulase through mutation of Trichoderma viride was reported by Shazia et al. [19]. In their study, the mutant strains of T. viride provide exponential increase in cellulolytic activity compare to wild strain. The yield (unit/cell) of pigment produced by each mutant and the wild type is presented in Figure 2. Seminar result was obtained by Gulani et al. [10] who reported the increase in prodigiosin yield of 811.88 unit/cell by the mutant bacteria strains. The improved productivity by the mutant strains could be attributed to genetic variations in the genes coding for pigmentation as a result of insertions and deletions of certain bases during mutations.
RAPD technique was employed to evaluate the genetic diversity of native and mutant genotypes. 10 different random primers, each 10 nucleotides long, were used for RAPD. Five primers (OPB 01, OPB 03, OPB 11, OPT 01, and OPT 10) were able to produce amplified band profiles in the genomic DNA of all the organisms (wild type and mutants), the other remaining five (OPB 10, OPB 17, OPT 20, OPT 06, and OPT 17) did not produce such amplification in all the organisms. A total of 297 bands were resolved by the 10 primers, 211 (71.0%) of which were polymorphic while 86 (29.0%) were monomorphic. Thus, each primer produced an average number of 29.7 bands, the size of which ranged between 180 and 3000 bp. The maximum number of bands (49) was produced by primer OPB 01 while primers OPT 06 and OPT 17 afforded the minimum number (17). One (1) DNA fragment of 850 bp produced by primer OPB 11 and two (2) DNA fragments of 650 bp and 450 bp produced by primer OPT 10 were specific to isolate GBB151Ed alone which had lost the gene for pigment production. The numbers and sizes of DNA fragments produced by the RAPD primers are as presented in Table 1.
The high percentage polymorphism produced by primer OPB10 indicated that all the mutant genotypes portrayed different patterns of DNA amplification in contrast with the wild strain [Figure 3a]. Furthermore, RAPD primers OPB 01, OPB 11, and OPT 10 produced 18 monomorphic bands each [Figure 3b]. The results showed that chemical mutants were significantly different from wild type. This practice has been used by several researchers to develop a mutant through random mutagenesis [20-22]. Sreeju et al. [18] distinguished strains within species of Escherichia coli, Ralstonia eutropha, Pseudomonas putida and, and Bacillus megaterium after exposure to the chemical mutagen and UV radiation using RAPD fingerprinting technique. Kawar et al. [23] also used the RAPD markers for the assessment of genetic diversity in sugarcane cultivars. Each RAPD primer randomly complemented and amplified on the genomic DNA of the bacterial strains where the homologous sequence of the primer was found and at such distances, amplified DNA fragments or bands are generated. Some of the RAPD primers used were unable to randomly find homologous sequence in the genomic DNA of some bacterial strains and, therefore, could not produce any amplified DNA band in such bacteria.
The clearly resolved DNA fragments or bands produced by each RAPD primer used were scored manually for their presence (1) or absence (0) across the genotypes of the isolates and assembled in a binary data matrix table. The data on the resolved bands generated from the five primers (OPB 01, OPB 03, OPB 11, OPT 01, and OPT 10) which showed bands for all the isolates were used to estimate genetic dissimilarity among the genotypes based on Darwin Software using Dice dissimilarity matrix. The factorial analysis diagram and the dendrogram showing the degree of dissimilarity among the wild-type bacterial isolate GBB151 and its mutants are presented in Figures 4 and 5. The dendrogram genetic analysis for identifying mutation using different RAPD primers revealed a moderate genetic variability among isolate GBB151 wild type (S. marcescens) and the mutant strains, thus proving the existence of mutations. The factorial analysis diagram revealed the distances of the mutant strains from the wild-type strain. It can be deduced from the diagram that mutant strains GBB151Ec and GBB151Ef were closest to the wild type as they appeared in the same quadrant. This implies that few changes occurred in their genetic codes. GBB151Ed which had lost its ability to produce pigment was farthest and in a different quadrant to the wild type, this suggests a high degree of mutation occurring in GBB151Ed which was far more than occurred in all other mutants.
.jpeg) | Figure 1: Colonies of GBB151 wild type and mutants on nutrient agar. (a) GBB151 wild-type colonies, (b) GBB151 mutant strains colonies [Click here to view] |

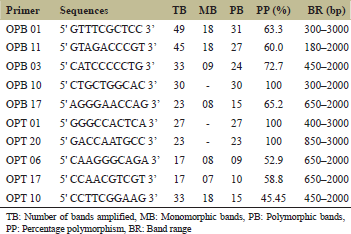

 | Table 1: RAPD primers and their properties in GBB151 wild type and mutant strains [Click here to view] |

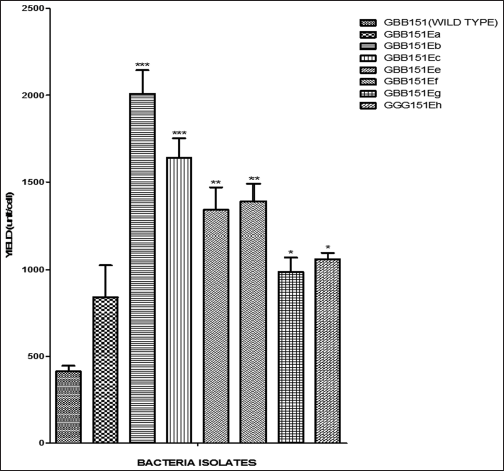

 | Figure 2: Yield of pigment produced by GBB151 wild type and mutants. *, **, *** indicate the degree of significance where *** shows the most significant effect [Click here to view] |
 | Figure 3: (a) Amplified DNA fragments generated by primer OPB 10 showing polymorphism in GBB151 wild type and mutant strains. M = DNA ladder, 1 = GBB151Ea, 2 = GBB151Eb, 3 = GBB151Ec, 4 = GBB151Wt (Wild type), 5 = GBB151Ed (non-colored mutant), 6 = GBB151Ee, 7 = GBB151Ef, 8 = GBB151Eg, 9 = GBB151 (b) Amplified DNA fragments generated by primer OPB 11 showing monomorphism in GBB151 wild type and mutant strains, M = DNA ladder, 1 = GBB151Ea, 2 = GBB151Eb, 3 = GBB151Ec, 4 = GBB151Wt (Wild type), 5 = GBB151Ed (non-colored mutant), 6 = GBB151Ee, 7 = GBB151Ef, 8 = GBB151Eg, 9 = GBB151. [Click here to view] |

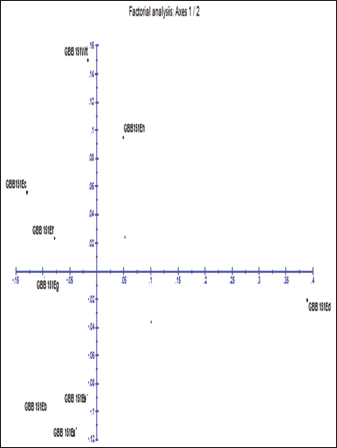

 | Figure 4: Factorial analysis diagram of GBB151 wild type and mutant strains [Click here to view] |

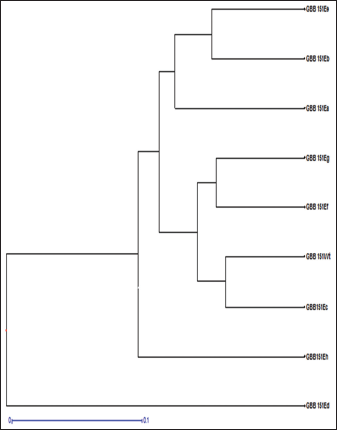

 | Figure 5: Dendrogram showing the relatedness of GBB151 wild type and mutant strains [Click here to view] |
The nucleotide sequences obtained for the wild type and mutants of GBB151 were further analyzed (translated) to reveal the composition of different amino acids (20) contained in the isolates [Supplementary Table S1]. The results showed that glycine (97 in number) was the most common in all the isolates with mutant GBB151Ef having the highest number (15). This was closely followed by leucine (83) and alanine (66). In all the isolates, tyrosine was 22 while methionine was the least amount of 15. The major differences that occurred in the amino acids of GBB151Ed, the non-pigmented and the other pigmented strains were observed in the number of histidine (6) and threonine (9). These values were higher in GBB151Ed than other strains. Moreover, glycine (7) and arginine (7) had lower values in GBB151Ed than all the other pigmented strains. These variations in the amount of these four amino acids (histidine, threonine, glycine, and arginine) among the non-pigmented (GBB151Ed) and pigmented strains were calculated and found to be statistically significant. Protein function is solely dependent on its amino acid sequence, which then means that a slight change in the amino acid sequence of GBB151 could lead to marked phenotypic changes. The variation in the composition of amino acids in the wild GBB151 and mutants, therefore, supports the function structure relationship of amino acid sequence protein chemistry. More so, the decrease and increase observed in glycine and histidine composition, respectively, in GBB151Ed strain could slightly change the amino acid sequence from non-polar to positively charged or polar sequence which is also in tandem with significant (P < 0.05) increase in threonine, a polar amino acid. This change in charges could, in turn, be responsible for bleaching of pigment in GBB151Ed as compared to the wild type.
4. CONCLUSION
It has been established in this study that pigment-producing bacteria were isolated from the environment and modified into new strains that were able to produce higher yields of the pigments. The chemical mutants of S. marcescens obtained produced 5-fold more pigment than produced by the wild-type organism. RAPD analysis can be, therefore, recommended as an efficient tool for detecting genetic diversity among genotypes.
