The importance of epigenetics in biology and medicine is clear to every scientist who works in pertinent fields. Epigenetics refers to any mechanisms by which gene expression is altered without any changes in DNA sequence. Many studies have found an association of epigenetics with many diseases, stem cell functions, immunology, growth, and development, responding to stress, species conservation, evolution, aging, etc. [1-3]. These implications of epigenetics events have revealed essentiality of understanding epigenetics and epigenomics-epigenetic changes across the genome - especially its underlying molecular mechanisms.
DNA methylation is a well-known epigenetic process in which a methyl group (CH3) is added on cytosine bases. The process particularly occurs at CpG islands (CGI) where cytosine bases are highly concentrated. The multiple DNA methyltransferase (DNMT) proteins mediate adding the methyl group at cytosine bases. Histone modification is another epigenetic process. The modifications of histones such as methylation, acetylation, phosphorylation, sumoylation, and ubiquitination, alter the genome structural configuration, leading to gene expression changes at affected regions. The configurational changes provide/limit transcription factor accesses. Electrostatic interactions between histones and DNA are underlying powers to create structural changes [3-5]. The studies conducted during the past 20 years have indicated that the molecular mechanisms of causes and consequences of epigenetics are more complex and there is a need to investigate on many unknown prospects.
Some of the common experimental methods include chromatin immunoprecipitation (ChIP) (ChIP-on-chip combine ChIP) that is a method to detect differences between sample and control DNA. In this method, formaldehyde is first used to cross-linking DNA-bound proteins to the DNA. Then, histones are fragmented into about 500 base pairs, that each of these fragments with epigenetic modifications separated by antibodies. Finally, the nucleotides are released from the separated fragments and used to be hybridized with microarray data to find epigenetic modifications . MeDIP (ChIP-on-chip that is called methyl-DNA immunoprecipitation [ChIP]) is a varied method of ChIP in which antibodies are used against methylated cytosine. This method is widely used to find DNA methylation . ChIP-seq uses high-throughput DNA sequencing instead of hybridization process and is more accurate and cheaper than its primary forms, described earlier . More detailed information about mentioned experimental methods could be found in a review written by Schones and Zhao . Bisulfite sequencing is a high-resolution method that is able to detect DNA methylation patterns. In spite of high resolution and efficiency, this method is expensive . All of these methods integrated with several protocols have widely been used. The majority of protocols to assess epigenetic events are based on some of the following basics: (i) Techniques to inhibit DNA methylation and assess DNA methylation activity, (ii) ChIP-based protocols, (iii) in vivo RNA-Protein interaction assessment, and (iv) knockdown of histone deacetylases . Besides experimental works, bioinformatics tools and computational biology have made remarkable advances in elucidating epigenetic events. Various bioinformatic tools and computational methods have been developed for managing, handling, and analyzing different epigenetic data, and many researches have been conducted in this context [Figure 1]. The importance of computational-based methods in the epigenetic fields has essentially been revealed after emerging high-throughput sequencing techniques that have accumulated the bulk of unannotated data. Indeed, computational methods are used for two main purposes: First, for interpreting data resulted from experimental works, and second, for analyzing the genome to find specific sequences that are responsible for epigenetic modifications such as CGIs. Increasing large-scale dataset has enriched analysis related to epigenetics, but also it has made it more complex and further outline crucial roles of computational tools in this regard. Here, we briefly reviewed the computational epigenetics and the latest bioinformatic methods developed to study epigenetic causes and consequences.
2. THE CHALLENGES AND OPPORTUNITIES OF COMPUTATIONAL EPIGENETICS
Computational epigenetics is constituted of different sciences including computer science, statistics, physics, and computational biology. The aim of computational epigenetics is to design and develop computational-based methods and programs to analyze data resulted from experimental works on epigenetics . Data of epigenetic research encompass multiple layers of regulatory mechanisms and clues that must mainly be extracted from high-throughput sequencing techniques . The methods must address available issues related to (1) the experimental methods such as background read problem in ChIP-seq , (2) analytic approaches , (3) methods to integrate interplay of other compounds, such as microRNAs, with epigenetic regulation  and (4) the biased data resulted from the experimental mythologies such as profiling DNA methylation by MBD-seq . In addition, there is more space for computational methodologies to open insight on protein-protein interactions, to decrease the cost of epigenome mapping, to theoretically modeling of epigenetic mechanisms, and to improve statistical genome browsers .

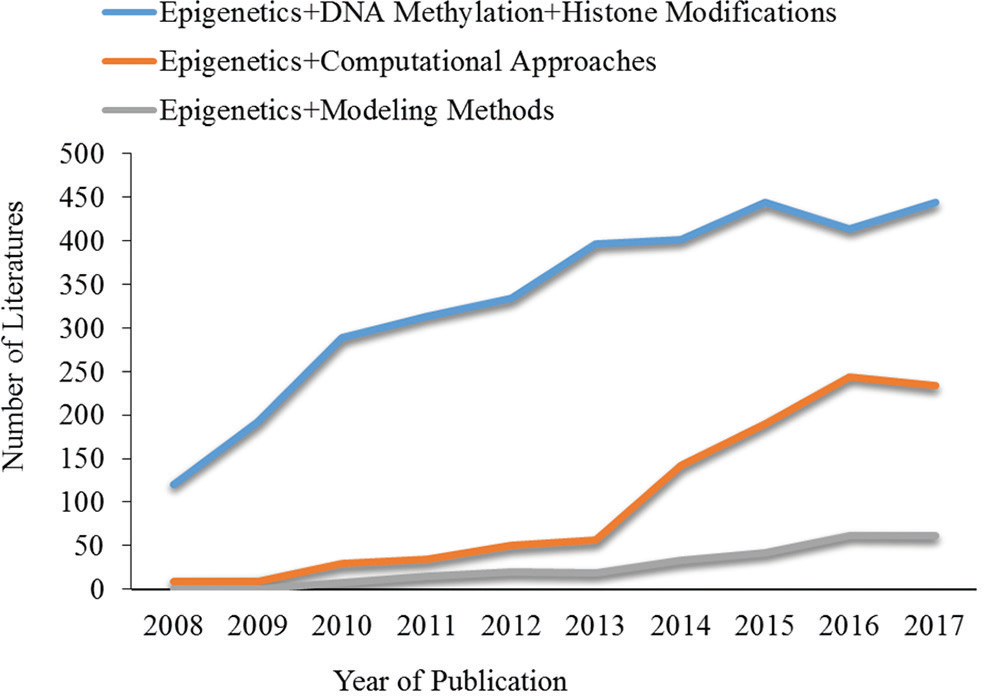

|Figure 1: Number of literature related to epigenetics and computational approaches published between the years 2008 and 2017. The keywords used for the search were epigenetics, DNA methylation, histone modifications, computational approaches, and modeling methods. A number of hits for epigenetics+machian learning search were 65 literatures. The search was performed at PubMed (https://www.ncbi.nlm.nih.gov/pubmed)|
[Click here to view]
3. DATA SOURCES
Databases are one of the main places that information related to epigenetics could be accessed. As tabulated in Table 1, there are many databases for epigenetics. MethDB (http://www.methdb.de) contains information about DNA methylation and methylation patterns in many species. PubMed (www.pubmeth.org/) contains a text-type file of more than thousands scientific articles related to methylated and other types of epigenetic modifications. REBASE (http://rebase.neb.com/rebase/rebase.html) is a database that connected to GenBank database. Genes responsible to encode DNMT have deposited in this database. Epigenetic data related to human chromatin and disease could reach in MeInfoText (http://mit.lifescience.ntu.edu.tw/), MethPrimerDB (http://medgen.ugent.be/methprimerdb/), The Krembil Family Epigenetics Laboratory (http://www.epigenomics.ca), and MethyLogiX DNA methylation database (http://www.methylogix.com/genetics/database.shtml.htm). Of other useful databases, we could mention to the Histone Database, ChromDB, CREMOFAC, the National Human Genome Research Institute’s Histone Database, the National Center for Biotechnology Information’s Gene Expression Omnibus, the Gene Normal Tissue Expression database, DNA Data Bank of Japan, and the Blood express database .
4. COMPUTATIONAL ANALYSIS OF EPIGENETIC DATA
There is a variety of computational-based approaches to analyze, modulate, and predict epigenetic modifications in given sequences. In the case of detecting DNA methylation, efforts have mainly devoted to discover of methylated CGIs and allele-specific cytosine methylation. The CG dinucleotides are mostly scarce throughout the genome, especially in vertebrates  and mainly clustered in the regions called CGIs. These rich regions with CG dinucleotides, CGIs, are interestingly located at the promoter of coding and non-coding genes, making them very attractive for researchers [19,20]. Because altering DNA methylation patterns of CGIs play essential roles in controlling the gene expression and silencing in various biological processes, such as X-chromosome inactivation, imprinting, silencing of intragenomic parasites [21,22], and especially in the epigenetic causes of cancer . Due to CGIs essential implications in mentioned processes, multiple algorithms (either specific species or general purpose) have been developed to identify CGIs in the genomes. In this context, an algorithm to study CGIs and G+C content in the genome of vertebrates was first used by Gardiner-Garden and Frommer . Subsequently, many other methods based on different algorithms had been developed. Of these methods, artificial neural networks (ANN) and support vector machines (SVM) have broadly been used to analyze DNA methylation. Marchevsky et al.  trained ANN with molecular data to classify lung cancer cells based on DNA methylation marker. They provided evidence that ANN could be used as a powerful approach for detecting DNA methylation. Das et al.  indicated that SVM could predict methylation status of CpG regions with an accuracy of 86%. They used this method to depict methylation patterns of all 22 human autosome chromosomes. The methods such as hidden Markov models (HMM), logistic regression, K-nearest neighbors, and decision trees have also been used for this purpose [25,26], for example, Barazandeh et al.  disclosed significant correlations between CGI density and genomic features such as chromosome size, GC content, ObsCpG/ExpCpG, gene density, and recombination rate in cattle. However, these methods were suffering from several disadvantages. First, these methods lacked systematic selection methods for a length threshold . Second, they were unable to detect weak CGIs . Third, they were sequence-based to identify CGIs and failed to distinguish between genuine CGIs and CpG-rich regions . To overcome these drawbacks, Bock et al.  suggested epigenome prediction method and used integrates DNA methylation, Polymerase II preinitiation complex binding, histone H3K4 di- and trimethylation, histone H3K9/14 acetylation, DNase I hypersensitivity, and SP1 binding as criteria to map CGIs. Their method could distinguish between weak and stronger CGIs and use feathers of genomic DNA sequences and epigenome.

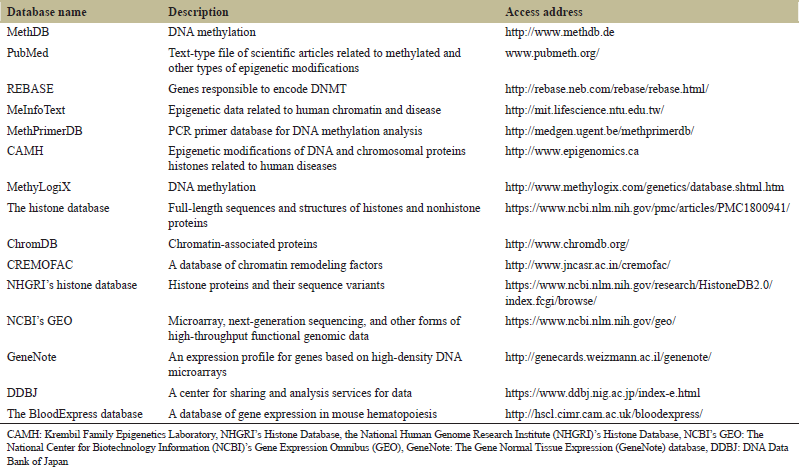

|Table 1: Some of the important databases that provide information about epigenetic events in various organisms|
[Click here to view]
In respect to modifications of CGIs, the methylation is not only modification. Studies on the mammalian genome have demonstrated that in addition to methylation, there are other forms of modification including hydroxymethylation, formylation, and carboxylation [31,32]. The specific roles of these type modifications are still little-known, but it has been hypothesized that these modifications might be intermediate steps during methylation and demethylation processes or even they may have own implication in diseases [33,34]. Furthermore, studies on three high-resolution structures of chromatin have revealed the effect of two methylations, two hydroxymethylation, and five formylations on DNA dodecamers, while methylation and hydroxymethylation alone have not any effects on the geometry of DNA [35,36]. These imply this fact that for fully understanding of CGI modification effects on chromatins structure; consequently, altering expression of genes it is critical that analyzing methods must include all of the modification possibilities. One of the computational methods that meet these criteria is reported by Krawczyk et al.  in which they extended Natural Move Monte Carlo to simulate the conformation changes of chromatin as consequence of epigenetic modifications.
In the case of prediction, modeling, and analysis of histone modifications, some methods have reported, such as simplified stochastic model , genome-wide chromatin analysis , and genome-wide mapping . From the machine-learning methods have been used to detect histone modifications (acetylation, methylation, and phosphorylation) we can mention to HMM approach , using chromatin signatures , model based on the prediction of pH-dependent aqueous solubility , and HMM based on the domain-level behavior . Benveniste et al.  recently showed that histone modification prediction could achieve from knowledge of transcription factor binding at both promoter and distal regulatory elements. Furthermore, the methods such as QSAR analysis, homology modeling, and molecular docking methods have used for detecting histone modifications [46,47]. These tools have well been used for deciphering epigenetic effects on various biological processes. Furthermore, using the interaction between epigenetics, genetics, and environment can improve estimation of breeding values and reduce their biases .
The histone code hypothesis  articulates that the roles of histone post-translational modifications (PTM) are well described when the combinations and sequences of histone PTMs are accounted. Based on this hypothesis, several computational methods were developed for identification of histone modifications. ChromaSig and ChromHMM are two computational methods that have been developed for histone modifications [50,51]. These methods are based on multivariate HMM and are able to show histone modifications and chromatin statues. Given that only subsets of the histone PTM combinations take place in nature, the later approaches were developed based on partial correlations and maximum entropy modeling. These methods have been used for identification of pairwise and high-order interactions between chromatin factors .
5. COMPUTATIONAL EPIGENETIC RESEARCH
Computational methods have remarkably helped to explore molecular mechanisms of epigenetics and its association with biological processes. Cancer is one of the fields that computational epigenetics has widely been used. It has been indicated that DNA methylation patterns in cancer are variable and tumor type specific. To elucidate DNA methylation pattern in cancer, several computational approaches have been used, such as using regression models to analyze DNA methylation profile , using SVM to analyze DNA methylation in tumor class , and using Manhattan distance and average linkage algorithms for CGI pattern analysis of human colorectal tumors .
Stem cell is another field that computational epigenetics has widely used. Recent studies have revealed unique epigenetic profiles of embryonic stem cells, as reviewed by Spivakov and Fisher . Walker et al.  formulated novel networks that indicate gene response of key developmental regulators in embryonic stem cell and could predict the outcomes of genetic manipulation in this network. They used temporal expression microarray analyses and known genome-wide transcription factor to construct the networks. In another study, Ringrose et al.  used computational-based method to successfully identify 167 candidate polycomb/trithorax response elements. These elements are involved in the development and cell proliferation.
Neurodegenerative and autoimmune diseases are two another important diseases that have been studied using a computational-based method to find epigenetic factors responsible for the diseases. Khanam Irin et al.  in this study proposed a computational method able to explain the functional consequences of epigenetic modification. The method, called biological expression language, is capable of integrating literature-derived information into network model. Moreover, it is possible to apply reverse causal reasoning algorithms, which support the identification of mechanistic hypothesis from related network model.
6. CONCLUDING REMARKS AND OUTLOOK
Many high-throughput sequencing technologies open a new era for epigenetic research. To handle millions of these data, many computational tools have been developed. There are, however, issues that the computational tools have to address. Computational methods must be applied to the integrative analysis of epigenetic layers. These methods could remarkably improve our knowledge of complex regulatory processes and interconnections by which epigenetics works. It has been observed that even small networks with few components in epigenetic events tend to behave in complex and unexpected manners. Therefore, there is a need to build up systematic and focused modular approaches to elucidate fundamental understanding of epigenetics. Some methods developed for analyzing literature-derived data are not efficient in showing epigenetic modifications at gene level so extending these methods should be considered.
It is expected that the computational methodologies will shift for being able to interpret data so that can be used in quantifying the disease risks and driving therapeutics. They should draw meaningful inferences of epigenetic modifications in diseases, and develop novel approaches for new powerful epigenome-editing and high-throughput experimental methodologies. The new computational methodologies should integrate the combination of the computational methods, especially machine learning approaches. Considering these strategies in developing new computational methods could extend our understanding of epigenetic mechanisms.
1. Handel AE, Ebers GC, Ramagopalan SV. Epigenetics: Molecular mechanisms and implications for disease. Trends Mol Med 2010;16:7-16.
2. Chinnusamy V, Zhu JK. Epigenetic regulation of stress responses in plants. Curr Opin Plant Biol 2009;12:133-9.
3. Weinhold B. Epigenetics: The science of change. Environ Health Perspect 2006;114:A160-7.
4. Lima R, Hayashi D, Lima K, Gomes N, Ribeiro M. The role of epigenetics in the etiology of obesity: A review. J Clin Epigenet 2017;3:41.
5. Allis CD, Jenuwein T. The molecular hallmarks of epigenetic control. Nat Rev Genet 2016;17:487-500.
6. Buck MJ, Lieb JD. ChIP-chip: Considerations for the design, analysis, and application of genome-wide chromatin immunoprecipitation experiments. Genomics 2004;83:349-60.
7. Jacinto FV, Ballestar E, Esteller M. Methyl-DNA immunoprecipitation (MeDIP): Hunting down the DNA methylome. Biotechniques 2008;44:35, 37, 39 passim.
8. Park PJ. ChIP-seq: Advantages and challenges of a maturing technology. Nat Rev Gen 2009;10:669-80.
9. Schones DE, Zhao K. Genome-wide approaches to studying chromatin modifications. Nat Rev Genet 2008;9:179-91.
10. Hajkova P, el-Maarri O, Engemann S, Oswald J, Olek A, Walter J, et al. DNA-methylation analysis by the bisulfite-assisted genomic sequencing method. Methods Mol Biol 2002;200:143-54.
11. Tollefsbol TO. Epigenetics Protocols. Vol. 287. Springer Science and Business Media; 2004.
12. Lim SJ, Tan TW, Tong JC. Computational epigenetics: The new scientific paradigm. Bioinformation 2010;4:331-7.
13. Robinson MD, Pelizzola M. Computational epigenomics: Challenges and opportunities. Front Genet 2015;6:88.
14. Flensburg C, Kinkel SA, Keniry A, Blewitt ME, Oshlack A. A comparison of control samples for chIP-seq of histone modifications. Front Genet 2014;5:329.
15. Robinson MD, Kahraman A, Law CW, Lindsay H, Nowicka M, Weber LM, et al. Statistical methods for detecting differentially methylated loci and regions. Front Genet 2014;5:324.
16. Osella M, Riba A, Testori A, Corà D, Caselle M. Interplay of microRNA and epigenetic regulation in the human regulatory network. Front Genet 2014;5:345.
17. Mensaert K, Van Criekinge W, Thas O, Schuuring E, Steenbergen RD, Wisman GB, et al. Mining for viral fragments in methylation enriched sequencing data. Front Genet 2015;6:16.
18. Bock C, Lengauer T. Computational epigenetics. Bioinformatics 2008;24:1-0.
19. Barazandeh A, Mohammadabadi M, Ghaderi-Zefrehei M, Nezamabadi-Pour H. Genome-wide analysis of CpG islands in some livestock genomes and their relationship with genomic features. Czech J Anim Sci 2016;61:487-95.
20. Hackenberg M, Barturen G, Carpena P, Luque-Escamilla PL, Previti C, Oliver JL, et al. Prediction of cpG-island function: CpG clustering vs. Sliding-window methods. BMC Genomics 2010;11:327.
21. Barazandeh A, Mohammadabadi M, Ghaderi-Zefrehei M, Nezamabadipour H. Predicting CpG islands and their relationship with genomic feature in cattle by hidden markov model algorithm. Iran J Appl Anim Sci 2016;6:571-9.
22. Su J, Zhang Y, Lv J, Liu H, Tang X, Wang F, et al. CpG_MI: A novel approach for identifying functional cpG islands in mammalian genomes. Nucleic Acids Res 2010;38:e6.
23. Marchevsky AM, Tsou JA, Laird-Offringa IA. Classification of individual lung cancer cell lines based on DNA methylation markers: Use of linear discriminant analysis and artificial neural networks. J Mol Diagn 2004;6:28-36.
24. Das R, Dimitrova N, Xuan Z, Rollins RA, Haghighi F, Edwards JR, et al. Computational prediction of methylation status in human genomic sequences. Proc Natl Acad Sci U S A 2006;103:10713-6.
25. Bhasin M, Zhang H, Reinherz EL, Reche PA. Prediction of methylated cpGs in DNA sequences using a support vector machine. FEBS Lett 2005;579:4302-8.
26. Chen H, Xue Y, Huang N, Yao X, Sun Z. MeMo: A web tool for prediction of protein methylation modifications. Nucleic Acids Res 2006;34:W249-53.
27. Takai D, Jones PA. Comprehensive analysis of cpG islands in human chromosomes 21 and 22. Proc Natl Acad Sci U S A 2002;99:3740-5.
28. Weber M, Hellmann I, Stadler MB, Ramos L, Pääbo S, Rebhan M, et al. Distribution, silencing potential and evolutionary impact of promoter DNA methylation in the human genome. Nat Genet 2007;39:457-66.
29. Yamada Y, Watanabe H, Miura F, Soejima H, Uchiyama M, Iwasaka T, et al. A comprehensive analysis of allelic methylation status of cpG islands on human chromosome 21q. Genome Res 2004;14:247-66.
30. Bock C, Walter J, Paulsen M, Lengauer T. CpG island mapping by epigenome prediction. PLoS Comput Biol 2007;3:e110.
31. Bhutani N, Burns DM, Blau HM. DNA demethylation dynamics. Cell 2011;146:866-72.
32. Wu H, Zhang Y. Charting oxidized methylcytosines at base resolution. Nat Struct Mol Biol 2015;22:656-61.
33. Kroeze LI, van der Reijden BA, Jansen JH 5-hydroxymethylcytosine: An epigenetic mark frequently deregulated in cancer. Biochim Biophys Acta 2015;1855:144-54.
34. Guo JU, Su Y, Zhong C, Ming GL, Song H. Emerging roles of TET proteins and 5-hydroxymethylcytosines in active DNA demethylation and beyond. Cell Cycle 2011;10:2662-8.
35. Drew HR, Wing RM, Takano T, Broka C, Tanaka S, Itakura K, et al. Structure of a B-DNA dodecamer: Conformation and dynamics. Proc Natl Acad Sci U S A 1981;78:2179-83.
36. Lercher L, McDonough MA, El-Sagheer AH, Thalhammer A, Kriaucionis S, Brown T, et al. Structural insights into how 5-hydroxymethylation influences transcription factor binding. Chem Commun (Camb) 2014;50:1794-6.
37. Krawczyk K, Demharter S, Knapp B, Deane CM, Minary P. In silico structural modeling of multiple epigenetic marks on DNA. Bioinformatics 2018;34:41-8.
38. Dodd IB, Micheelsen MA, Sneppen K, Thon G. Theoretical analysis of epigenetic cell memory by nucleosome modification. Cell 2007;129:813-22.
39. Schübeler D, MacAlpine DM, Scalzo D, Wirbelauer C, Kooperberg C, van Leeuwen F, et al. The histone modification pattern of active genes revealed through genome-wide chromatin analysis of a higher eukaryote. Genes Dev 2004;18:1263-71.
40. Roh TY, Cuddapah S, Zhao K. Active chromatin domains are defined by acetylation islands revealed by genome-wide mapping. Genes Dev 2005;19:542-52.
41. Xu H, Wei CL, Lin F, Sung WK. An HMM approach to genome-wide identification of differential histone modification sites from chIP-seq data. Bioinformatics 2008;24:2344-9.
42. Won KJ, Chepelev I, Ren B, Wang W. Prediction of regulatory elements in mammalian genomes using chromatin signatures. BMC Bioinformatics 2008;9:547.
43. Kouskoumvekaki I, Hansen NT, Björkling F, Vadlamudi SM, Jónsdóttir SO. Prediction of pH-dependent aqueous solubility of histone deacetylase (HDAC) inhibitors. SAR QSAR Environ Res 2008;19:167-77.
44. Thurman RE, Day N, Noble WS, Stamatoyannopoulos JA. Identification of higher-order functional domains in the human ENCODE regions. Genome Res 2007;17:917-27.
45. Benveniste D, Sonntag HJ, Sanguinetti G, Sproul D. Transcription factor binding predicts histone modifications in human cell lines. Proc Natl Acad Sci U S A 2014;111:13367-72.
46. Juvale DC, Kulkarni VV, Deokar HS, Wagh NK, Padhye SB, Kulkarni VM, et al.3D-QSAR of histone deacetylase inhibitors: Hydroxamate analogues. Org Biomol Chem 2006;4:2858-68.
47. Lin YC, Lin JH, Chou CW, Chang YF, Yeh SH, Chen CC, et al. Statins increase p21 through inhibition of histone deacetylase activity and release of promoter-associated HDAC1/2. Cancer Res 2008;68:2375-83.
48. Roudbar MA, Mohammadabadi M, Salmani V. Epigenetics: A new challenge in animal breeding. Gen Third Millennium 2014;12:3900-14.
49. Strahl BD, Allis CD. The language of covalent histone modifications. Nature 2000;403:41-5.
50. Hon G, Ren B, Wang W. ChromaSig: A probabilistic approach to finding common chromatin signatures in the human genome. PLoS Comput Biol 2008;4:e1000201.
51. Ernst J, Kellis M. ChromHMM: Automating chromatin-state discovery and characterization. Nat Methods 2012;9:215-6.
52. Zhou J, Troyanskaya OG. Global quantitative modeling of chromatin factor interactions. PLoS Comput Biol 2014;10:e1003525.
53. Bock C, Walter J, Paulsen M, Lengauer T. Inter-individual variation of DNA methylation and its implications for large-scale epigenome mapping. Nucleic Acids Res 2008;36:e55.
54. Adorján P, Distler J, Lipscher E, Model F, Müller J, Pelet C, et al. Tumour class prediction and discovery by microarray-based DNA methylation analysis. Nucleic Acids Res 2002;30:e21.
55. Weisenberger DJ, Siegmund KD, Campan M, Young J, Long TI, Faasse MA, et al. CpG island methylator phenotype underlies sporadic microsatellite instability and is tightly associated with BRAF mutation in colorectal cancer. Nat Genet 2006;38:787-93.
56. Spivakov M, Fisher AG. Epigenetic signatures of stem-cell identity. Nat Rev Genet 2007;8:263-71.
57. Walker E, Ohishi M, Davey RE, Zhang W, Cassar PA, Tanaka TS, et al. Prediction and testing of novel transcriptional networks regulating embryonic stem cell self-renewal and commitment. Cell Stem Cell 2007;1:71-86.
58. Ringrose L, Rehmsmeier M, Dura JM, Paro R. Genome-wide prediction of polycomb/Trithorax response elements in drosophila melanogaster. Dev Cell 2003;5:759-71.
59. Khanam Irin A, Kodamullil AT, Gündel M, Hofmann-Apitius M. Computational modelling approaches on epigenetic factors in neurodegenerative and autoimmune diseases and their mechanistic analysis. J Immunol Res 2015;2015:737168.
