Research Article | Volume 12, Issue 2, March, 2024

A bibliometric landscape of polyhydroxyalkanoates production from low-cost substrates by Cupriavidus necator and its perspectives for the Latin American bioeconomy

Martha L. Ascencio-Galván Víctor A. López-Agudelo David Gómez-Ríos Howard Ramirez-Malule

Open Access

Published:  Feb 20, 2024

DOI: 10.7324/JABB.2024.159864
Abstract

The replacement of petroleum-based plastics with biodegradable materials emerges as a potential solution to the environmental issues caused by the constant consumption of non-degradable plastic materials. Polyhydroxyalkanoates (PHA) are natural biopolymers produced by several bacteria species as an evolutive mechanism to store carbon and energy. Among these PHA-producing bacteria, the Gram-negative bacterium Cupriavidus necator has been studied as the model organism for PHA production due to its high accumulation capacity (up to 90% of dry cell weight). Nevertheless, the large-scale production of those biopolymers is still limited by the production costs, especially regarding the carbon source, which may represent up to 50% of the total cost of the PHA production process. For this study, a bibliometric analysis was conducted to investigate the trends in PHA production studies by C. necator with an emphasis on the use of low-cost substrates, in addition to the perspectives for this emerging industry in Latin America as a continent with access to significant biomass resources, agroindustry products, and byproducts. The Scopus and the Web of Science databases were used for data collection, and a total of 532 and 2995 articles were identified for the period between 1992 and 2022, and between 2000 and 2022, respectively.


Keyword:     Polyhydroxyalkanoates Cupriavidus necator Low-cost substrates Bioeconomy


Citation:

Ascencio-Galván ML, López-Agudelo VA, Gómez-Ríos D, Ramirez-Malule H. A bibliometric landscape of polyhydroxyalkanoates production from low-cost substrates by Cupriavidus necator and its perspectives for the Latin American bioeconomy. J App Biol Biotech. 2024;12(2):48-61. http://doi.org/10.7324/JABB.2024.159864

Copyright: Author(s). This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike license.

HTML Full Text

ARTICLE HIGHLIGHTS

  • Bibliometric analysis of PHA production from low-cost substrates by C. necator was carried out.

  • Potential and available biomasses in LATAM are reported for PHA production.

  • The most commonly low-cost carbon sources used to production of PHA by C. necator are waste oils and fats, sugar-rich residues, and derivatives.


1. INTRODUCTION

Bioeconomy has provided new technologies and business solutions to industries compared to the traditional and linear fossil-based production model [1]. Modern consumption habits have inevitably led to the growing generation of plastic waste and the production necessary to meet such demand. Conventional plastics derived from petrochemical monomers stand out for their mechanical properties, biological and chemical resistance, but these advantages for the industry unfortunately have been translated into a big environmental problem. In 2021, the annual production of petrochemical-based polymeric materials was 390.7 million tons per year [2]. Due to the large oil refinery capacity worldwide, monomers required to produce synthetic plastic materials are considered low-priced commodities with high-volume and high-demand transactions. Likewise, their physical properties, such as high mechanical strength, thermal stability, and resistance to physicochemical and biological degradation mechanisms, have turned plastics into a major pollutant with serious consequences for the environment and health [3,4]. An extensive number of studies in the past 20 years have shown the effects of plastics pollution in marine environments and freshwater ecosystems such as rivers, lakes, estuaries, and inland water [4,5]. The current generation of plastic waste exceeds in approximately 1% the production since some production from previous years incorporates the generation. At less 12% of plastic waste is mismanaged, leading to ocean inputs of 8 million tons per year, as reviewed by Albuquerque and Malafaia [6].

Bio-based biopolymers, especially biodegradable ones emerge as alternatives in many fields where plastics are currently used as an essential material [7]. However, the global production and market share of these biopolymers are still incipient, with a volume of 2.217 million tons per year in 2022, of which only 51.5% corresponds to biodegradable bioplastics [8]. By 2027, the total capacity forecast will be 6.3 million tons, distributed as 56.5% and 43.5% for biodegradable and bio-based/non-biodegradable bioplastics, respectively.

In the field of bioplastics, biologically compatible polymers are of great interest [6,9,10]. The so-called biodegradable plastics can be assimilated by microorganisms in short periods (18 months - 2 years), under appropriate environmental conditions such as temperature, pH, humidity, and nutrient supply [11]. According to review by Albuquerque and Malafaia [6], there are several types of commercially available biodegradable plastics, such as polyhydroxyalkanoates (PHA) and polylactates (PLA), as well as various blends of biopolymers. Among the bioplastics, PHA stands as one of the most promissory materials for reaching industrial production and massive commercialization in the mid-term due to its characteristics and high performance [12].

PHA are biopolymers produced intracellularly by various organisms such as archaea, bacteria, yeast, algae, plants, and their recombinant forms. These biopolymers are bioaccumulated under limited conditions of nitrogen and in excess of carbon source diverting the metabolism towards carbon accumulation as energy reservoirs [13]. Cupriavidus necator is a Gram-negative bacterium among the most studied and employed for PHA synthesis due to the ease of cultivation and its ability to accumulate higher amounts of PHA from renewable carbon sources such as glucose, fructose, and glycerol [14,15]. This bacterium has been given various names over time, including Hydrogenomonas eutropha, Alcaligenes eutrophus, Ralstonia eutropha, and Wautersia eutropha [16]. At present, more than 90 genera of microbial species with the capacity to accumulate PHA are reported in the literature, as reviewed by Albuquerque and Malafaia [6].

Currently, the PHA industrial production is not profitable compared to that of synthetic polymers, as reviewed by Kumar et al. [17]. Several factors hamper the production cost of PHA, such as the nature and precedence of the carbon source, the cultivation cost, the productivity of the process, the efficiency of the metabolic machinery in the biosynthesis and the further downstream processing [18,19]. The use of inexpensive and easily assimilable substrates, as well as microorganisms with high PHA synthesis capacity, may contribute to improving the gross margin of PHA production [17]. In this sense, (agro)industrial by-products/waste compounds such as glycerol, waste vegetable oils, animal fats, wastewater streams with high organic content, and sugar-rich materials such as molasses, lignocellulose, whey, and starch, as well as mixtures of these feedstocks, are envisioned as suitable low-cost substrates for PHA production [20-22]. Alves et al., recently reviewed PHA-producing companies and their global production according to the substrates employed [23]. Several investigations have focused on the search for alternative substrates [10,24,25], identification of synthesis pathways [26], reconstruction of genome-scale models [27,28], and PHA recovery methods [29-31] that enable efficient and economically feasible PHA production.

Given the high relevancy and worldwide interest in developing the large-scale production of PHA, there is a high volume of scientific publications related to PHA, which difficult to get an appropriate glance at the main/recent findings on the topic. Bibliometric analysis is a useful tool for understanding the evolution, growth, and prospects of a research area. In addition, bibliometric analysis allows identifying the connection between subjects and even interdisciplinary collaborations over time, contributing the researchers to get insights into topics of global interest. Furthermore, bibliometric analysis can be used to find innovative information that explains/supports recent trends in new processes or applications. In the case of PHA production, some systematic reviews are available on specific topics such as genetic engineering tools for PHA production using inexpensive carbon sources for potential large-scale applications [32], continuous cultivation processes for PHA production [33], carbon waste streams from (agro)industrial for a cost-effective and sustainable PHA production [34], regulation of PHA synthesis [35], volatile fatty acids as carbons sources for PHA production [36], lignocellulosic feedstocks for PHA production [37], rapid quantification of intracellular PHA [38], among others. However, bibliometric research analysis of studies on PHA production is still lacking.

In this study, a bibliometric analysis was carried out to investigate the trends of the PHA production by C. necator aimed to provide a clear perspective on the current research landscape, highlighting renewable and low-cost carbon sources. In addition, the results were used to explore the PHA bioeconomy ecosystem in Latin America.


2. MATERIALS AND METHODS

2.1. Database Selection

Data search and collection were performed in the Scopus and WOS databases since both are among the largest databases of peer-reviewed literature worldwide in the field of science, technology, etc. These databases allow for the use of Boolean operators, leading to the design of a comprehensive search query. In addition, Scopus and the WOS allow exporting bibliometric data into Excel® and text format, respectively, which are suitable for further analysis and systematic scientific mapping.

2.2. Search Strategy and Bibliometric Indicators

The search query was designed in two search topics joined by the Boolean operator “AND”. The first topic was “PHA.” While the second topic was H. eutropha, A. eutrophus, C. necator, W. eutropha, and R. eutropha, but all the terms were joined by the Boolean operator “OR,” to include all the names of C. necator over time.

The search strategy included terms in the article title, abstract, and keywords as described elsewhere [39,40]. The document type was constrained only to articles (i.e., other document types such as letters, editorials, proceedings, and books were excluded), and VOSviewer 1.6.18 was used for visualization and data analysis [41]. All searches were done on March 14, 2023.

For the analysis of the carbon source used to produce PHA, the first one thousand author keywords with the greatest total link strength were analyzed, and the nodes related to C. necator and carbon sources were selected for the bibliometric network mapping.

Search

(TITLE-ABS-KEY (PHA) AND TITLE-ABS-KEY (“H. eutropha”) OR TITLE-ABS-KEY (“A. eutrophus”) OR TITLE-ABS-KEY (“C. necator”) OR TITLE-ABS-KEY (“W. eutropha”) OR TITLE-ABS-KEY (“R. eutropha”)) AND (LIMIT-TO (DOCTYPE, “ar”)).

Database: Scopus. Timespan: 1992 - 2022. 532 records were retrieved.

Database: Web of Science (WOS). Timespan: 2000 - 2022. 2995 records were retrieved.

In all studies, a screening of retrieved articles was performed to exclude duplicates. Bibliometric networks were designed to contain between 40 and 60 nodes for better results visualization. The volume and growth of publications, subject areas, top 10 leading countries, institutions and cited papers, co-occurrence keyword network visualization, and co-occurrence keyword overlay visualization analysis were the bibliometric indicators evaluated in this study. Figure 1 represents the methodology described and used in this study.

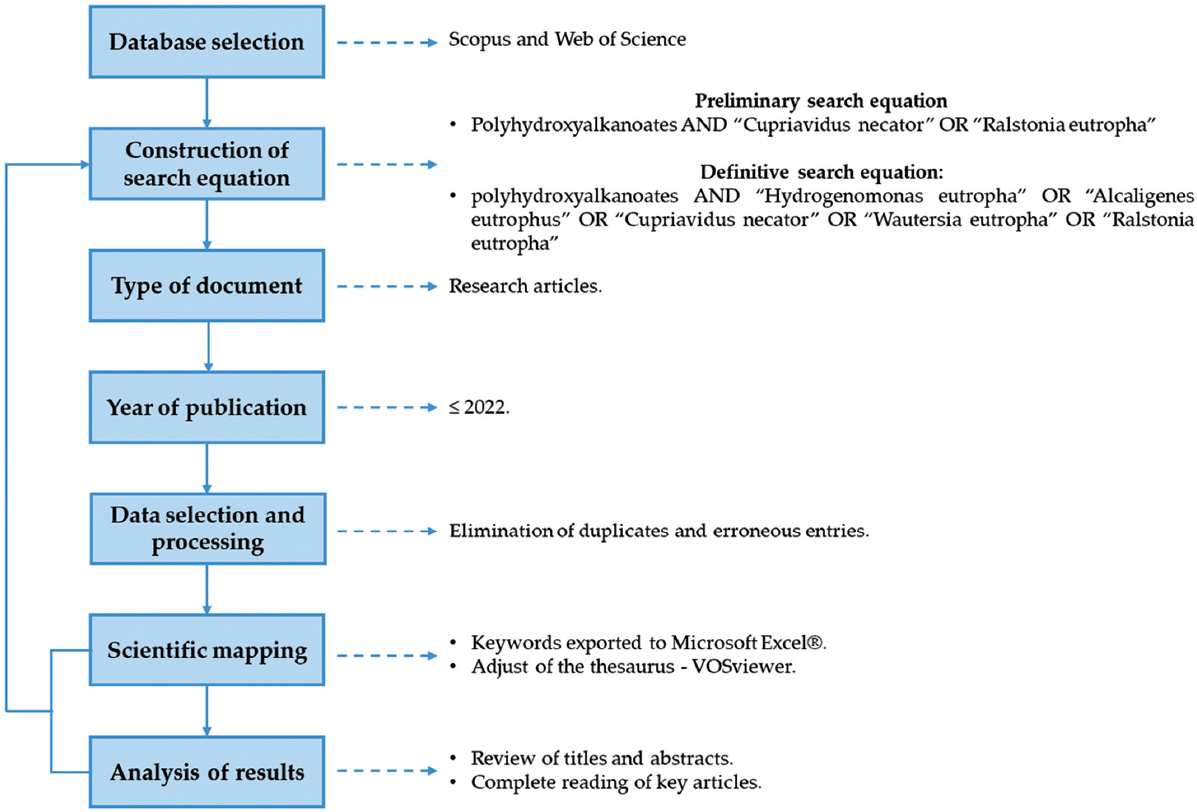

Figure 1: Methodology flowchart for bibliometric analysis.



[Click here to view]

3. RESULTS AND DISCUSSION

3.1. Evolution of Research Literature Related to PHA Production by C. necator

Fulfilling the search criteria for the selected databases, a total of 532 articles were identified in Scopus between 1992 and 2022, while 2995 articles were identified in WOS between 2000 and 2022. Figure 2 shows the evolution of the number of publications per year, showing an increase in the number of publications from 2010 onwards in both databases. The interest in bioplastics emerged from the global concern about the environmental issues of plastic waste and the need for reducing petroleum dependence [10]. The increase in publications on the topic from 2010 onwards correlates with the appearance of the first policies on bioeconomy and the increase in the funding for bioeconomy-related topics [42]. In addition, the results indicated that the studies on this topic have been conducted mainly in the last two decades (from 2000 onwards), since the first reports on PHA production optimization and genetic engineering of C. necator date back to the early 2000 decade. The results and discussion may be presented separately, or in one combined section, and may optionally be divided into headed subsections.

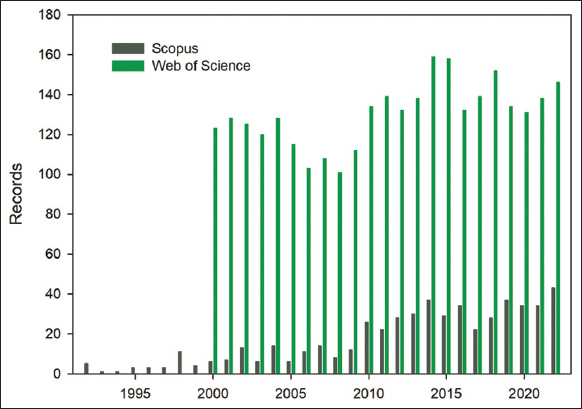

Figure 2: Evolution of research articles related to polyhydroxyalkanoates production by Cupriavidus necator during 1992–2022 and 2000–2022 by using the Scopus and the Web of Science databases, respectively.



[Click here to view]

3.2. Most Productive Countries and Research Institutions Worldwide in the Scientific Literature on PHA Production by C. necator

The Scopus and WOS databases show that the studies on PHA production by C. necator have been carried out in Asia (260 and 1181 papers), Europe (75 and 726 papers), North America (71 and 452 papers), and South America (30 and 98 papers), respectively. In addition, Japan and Germany are the leader with 83 and 563 papers (according to Scopus and WOS) equivalent to 15.6% and 18.7% of the world’s scientific production for the period evaluated [Table 1], followed by the United States (13% and 15%), respectively. Of the total number of countries reported in the mentioned databases, most publications are by authors with affiliations from European and Asian countries [Table 2]. The above is also consistent with the most cited papers in this field as shown in Table 3.

Table 1: Top 10 most productive research countries worldwide on the topic of PHA.

DatabaseCountry/RegionNumber of publications
ScopusJapan83
United States71
South Korea58
Malaysia48
China47
Germany46
Brazil30
United Kingdom29
Russian Federation26
WOSGermany563
United States452
Japan401
China282
South Korea203
England163
India159
Malaysia136
France113
Brazil98

PHA: Polyhydroxyalkanoates, WOS: Web of Science

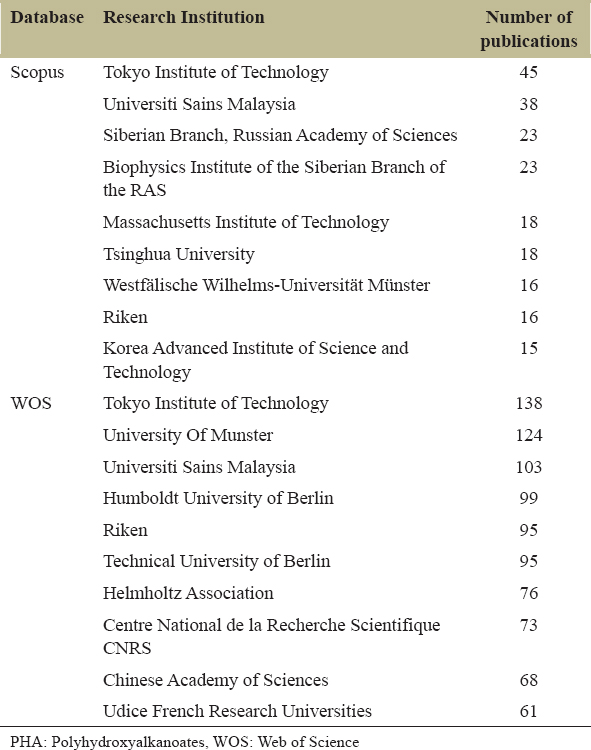

Table 2: Top 10 most productive research institutions worldwide on the topic of PHA production.

DatabaseResearch InstitutionNumber of publications
ScopusTokyo Institute of Technology45
Universiti Sains Malaysia38
Siberian Branch, Russian Academy of Sciences23
Biophysics Institute of the Siberian Branch of the RAS23
Massachusetts Institute of Technology18
Tsinghua University18
Westfälische Wilhelms-Universität Münster16
Riken16
Korea Advanced Institute of Science and Technology15
WOSTokyo Institute of Technology138
University Of Munster124
Universiti Sains Malaysia103
Humboldt University of Berlin99
Riken95
Technical University of Berlin95
Helmholtz Association76
Centre National de la Recherche Scientifique CNRS73
Chinese Academy of Sciences68
Udice French Research Universities61

PHA: Polyhydroxyalkanoates, WOS: Web of Science

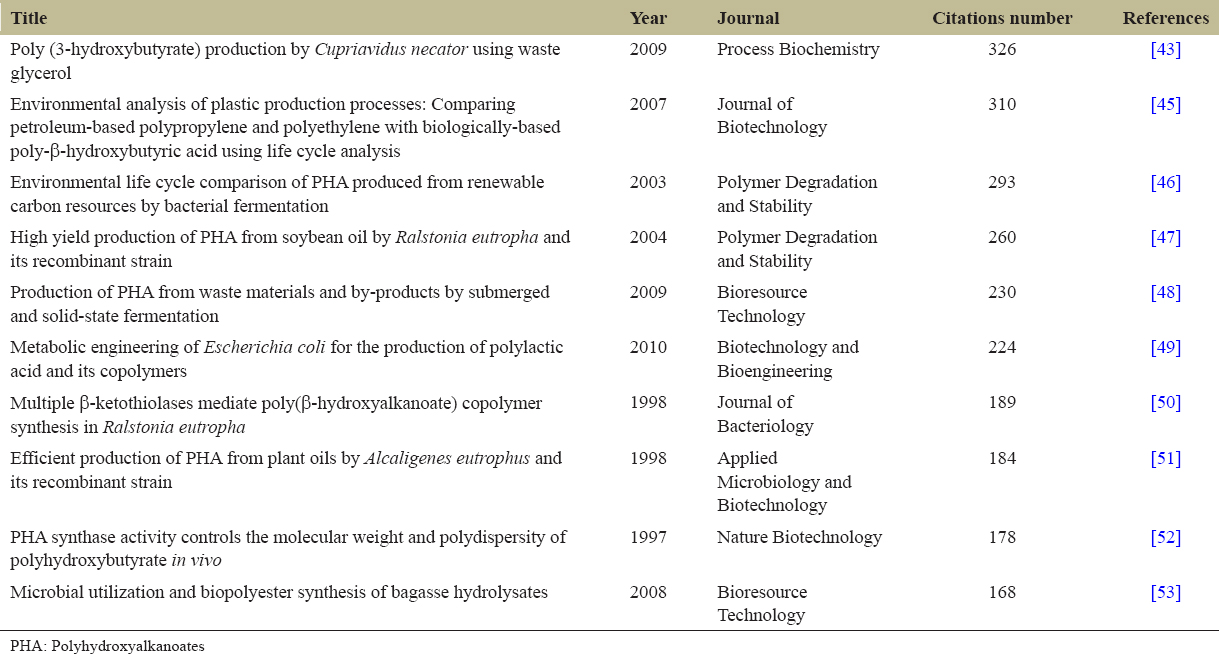

Table 3: Top 10 highest cited papers on the topic of PHA production according to Scopus.

TitleYearJournalCitations numberReferences
Poly (3-hydroxybutyrate) production by Cupriavidus necator using waste glycerol2009Process Biochemistry326[43]
Environmental analysis of plastic production processes: Comparing petroleum-based polypropylene and polyethylene with biologically-based poly-b-hydroxybutyric acid using life cycle analysis2007Journal of Biotechnology310[45]
Environmental life cycle comparison of PHA produced from renewable carbon resources by bacterial fermentation2003Polymer Degradation and Stability293[46]
High yield production of PHA from soybean oil by Ralstonia eutropha and its recombinant strain2004Polymer Degradation and Stability260[47]
Production of PHA from waste materials and by-products by submerged and solid-state fermentation2009Bioresource Technology230[48]
Metabolic engineering of Escherichia coli for the production of polylactic acid and its copolymers2010Biotechnology and Bioengineering224[49]
Multiple b-ketothiolases mediate poly(b-hydroxyalkanoate) copolymer synthesis in Ralstonia eutropha1998Journal of Bacteriology189[50]
Efficient production of PHA from plant oils by Alcaligenes eutrophus and its recombinant strain1998Applied Microbiology and Biotechnology184[51]
PHA synthase activity controls the molecular weight and polydispersity of polyhydroxybutyrate in vivo1997Nature Biotechnology178[52]
Microbial utilization and biopolyester synthesis of bagasse hydrolysates2008Bioresource Technology168[53]

PHA: Polyhydroxyalkanoates

In the top 10 countries, Brazil is the only South American country publishing in this area of knowledge with 30 and 98 papers in Scopus and WOS, respectively [Table 1]. For the period studied, other Latin American countries such as Argentina and Colombia are only in the 27th and 28th position with 5 papers each in Scopus, and 30th and 40th position with 31 and 9 papers, respectively, in WOS. This indicates that more work needs to be done in this research field, but above all that Latin American countries establish policies aimed at promoting and strengthening research.

Likewise, when reviewing the scientific production of PHA by C. necator from research institutions, it is evident that European and Asian institutions are the majority in the top 10. The exception is the Massachusetts Institute of Technology (USA), which occupied the fifth position [Table 2]. This shows also that they are the countries with the highest investment in this scientific research field in the world.

3.3. Main Research Approaches on PHA Production by C. necator

Figure 3 shows the top 10 areas of knowledge related to published studies on PHA synthesis using C. necator, in both databases. In this regard, and based on WOS, the main areas were (i) biotechnology applied microbiology, (ii) microbiology, and (iii) biochemistry molecular biology, and concentrated 43.2%, 24.6%, and 16.5% of the records, respectively. In the case of Scopus, the main areas were (i) biochemistry, genetics, and molecular biology (ii) immunology and microbiology, and (iii) chemical engineering, and contributed 61.2, 43.8, and 40.7% of the indexed documents, respectively.

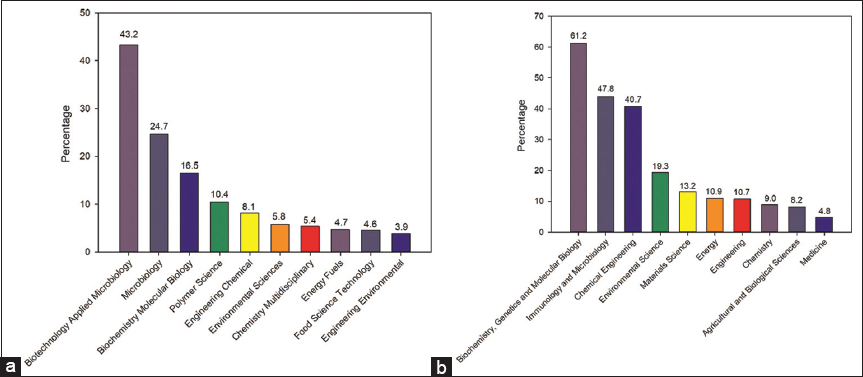

Figure 3: Contributions in polyhydroxyalkanoates production by Cupriavidus necator per area of knowledge (a) between 2000 and 2022 in Web of Science (b) between 1992 and 2022 in Scopus.



[Click here to view]

The two areas of knowledge with the most publications and cited studies in the databases consulted show that PHA production by C. necator is being worked on and developed in the basic sciences with approaches related with submerged cultures by using low-carbon sources and at the same time studies in the line of metabolic and genetic engineering [Tables 3 and 4].

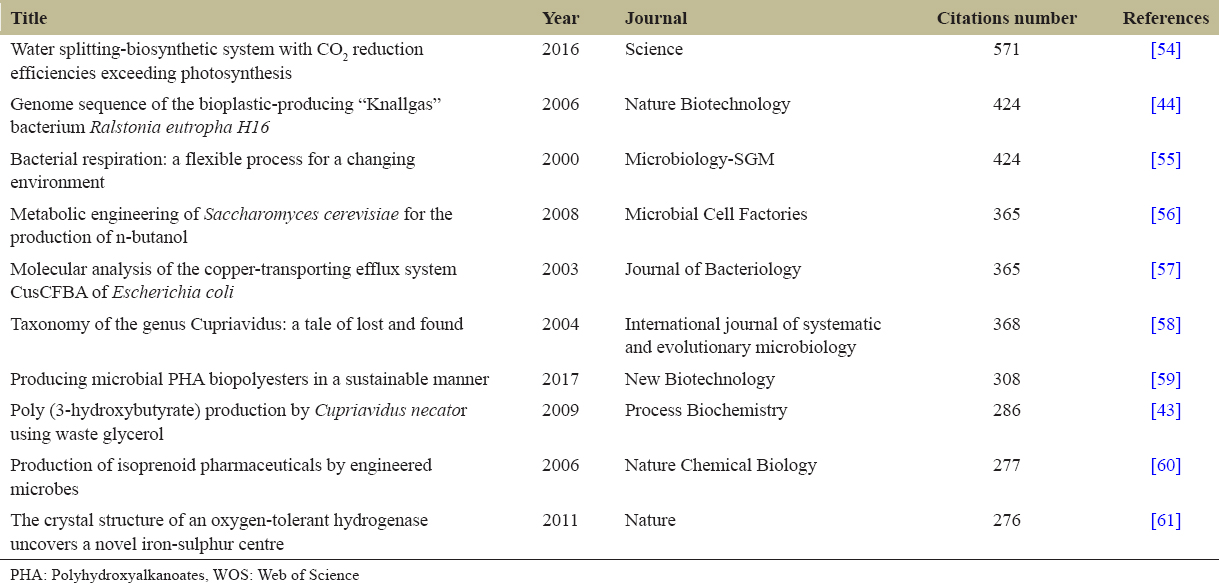

Table 4: Top 10 highest cited papers on the topic of PHA production according to WOS.

TitleYearJournalCitations numberReferences
Water splitting-biosynthetic system with CO2 reduction efficiencies exceeding photosynthesis2016Science571[54]
Genome sequence of the bioplastic-producing “Knallgas” bacterium Ralstonia eutropha H162006Nature Biotechnology424[44]
Bacterial respiration: a flexible process for a changing environment2000Microbiology-SGM424[55]
Metabolic engineering of Saccharomyces cerevisiae for the production of n-butanol2008Microbial Cell Factories365[56]
Molecular analysis of the copper-transporting efflux system CusCFBA of Escherichia coli2003Journal of Bacteriology365[57]
Taxonomy of the genus Cupriavidus: a tale of lost and found2004International journal of systematic and evolutionary microbiology368[58]
Producing microbial PHA biopolyesters in a sustainable manner2017New Biotechnology308[59]
Poly (3-hydroxybutyrate) production by Cupriavidus necator using waste glycerol2009Process Biochemistry286[43]
Production of isoprenoid pharmaceuticals by engineered microbes2006Nature Chemical Biology277[60]
The crystal structure of an oxygen-tolerant hydrogenase uncovers a novel iron-sulphur centre2011Nature276[61]

PHA: Polyhydroxyalkanoates, WOS: Web of Science

All the papers listed in Table 3 are research articles that have been the basis for supporting recent research in the field of PHA by C. necator. The most cited paper in Scopus was authored by Cavalheiro et al. [43] and published in 2009. This work describes PHB production by C. necator DSM 545 strain using a byproduct from the biodiesel industry (glycerol) as a carbon source. The authors explored two strategies that seek to enhance PHA production: (i) High-density cultivation to increase the volumetric productivity of PHA and (ii) the use of low-cost carbon sources. In WOS, the second paper most cited was authored by Pohlmann and collaborates [44], and published in 2006. The authors reported the complete genome sequence of the two chromosomes of C. necator H16. This paper provides an analysis that has undoubtedly been the basis for researchers to continue to explore the biotechnological potential of this microorganism and at the same time to understand its metabolic diversity.

3.4. Bibliometric Networks of Production of PHA by C. necator

Figures 4 and 5 shows the bibliometric networks of research topics related to PHA production by C. necator by using Scopus and WOS, respectively. The network visualization of Scopus contains 32 nodes grouped into 9 clusters [Figure 4a] while the WOS has 38 nodes grouped into 7 clusters [Figure 5a]. Figures 4b and 5b show which topics have focused the research over time, respectively. The clusters of Figure 4a (color-coded) can be classified as follow: cluster 1 (red color): fermentation, optimization, biodiesel; cluster 2 (green color): molecular weight, palm oil, C. necator, recovery, recombinant Escherichia coli; cluster 3 (blue color): bioconversion, biosynthesis, PHA, characterization; cluster 4 (yellow color): Escherichia coli, metabolic engineering, synthetic biology, Pseudomonas putida, PHB; cluster 5 (purple color): bioplastic, biorefinery, levulinic acid; cluster 6 (magenta blue color): copolymer, pha synthase, substrate specificity; cluster 7 (orange color): PHBV, volatile fatty acids; cluster 8 (brown color): biodegradable plastics and cluster 9 (pink color): β-oxidation.

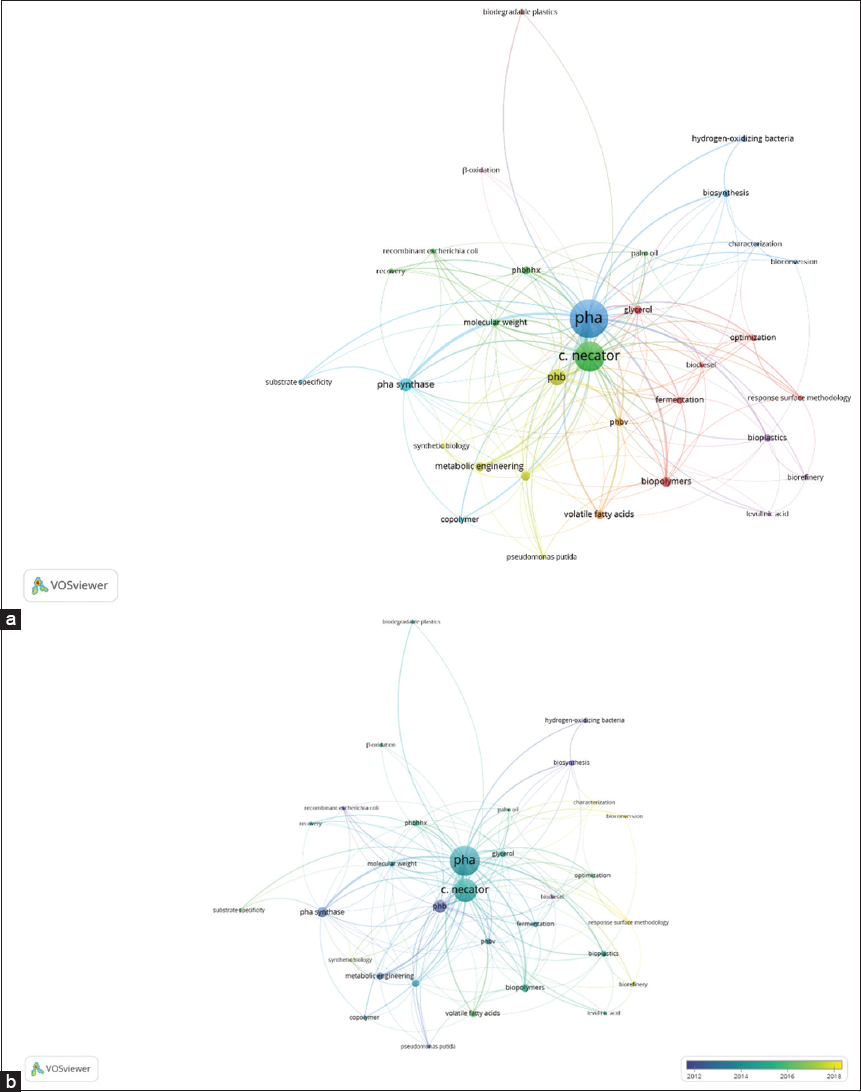

Figure 4: Bibliometric network of studies related to polyhydroxyalkanoates production by Cupriavidus necator between 1992 and 2022 in Scopus (a) Network visualization of the research-topic map (b) Overlay visualization of the research-topic map. The minimum number of occurrences of a keyword is 5.



[Click here to view]

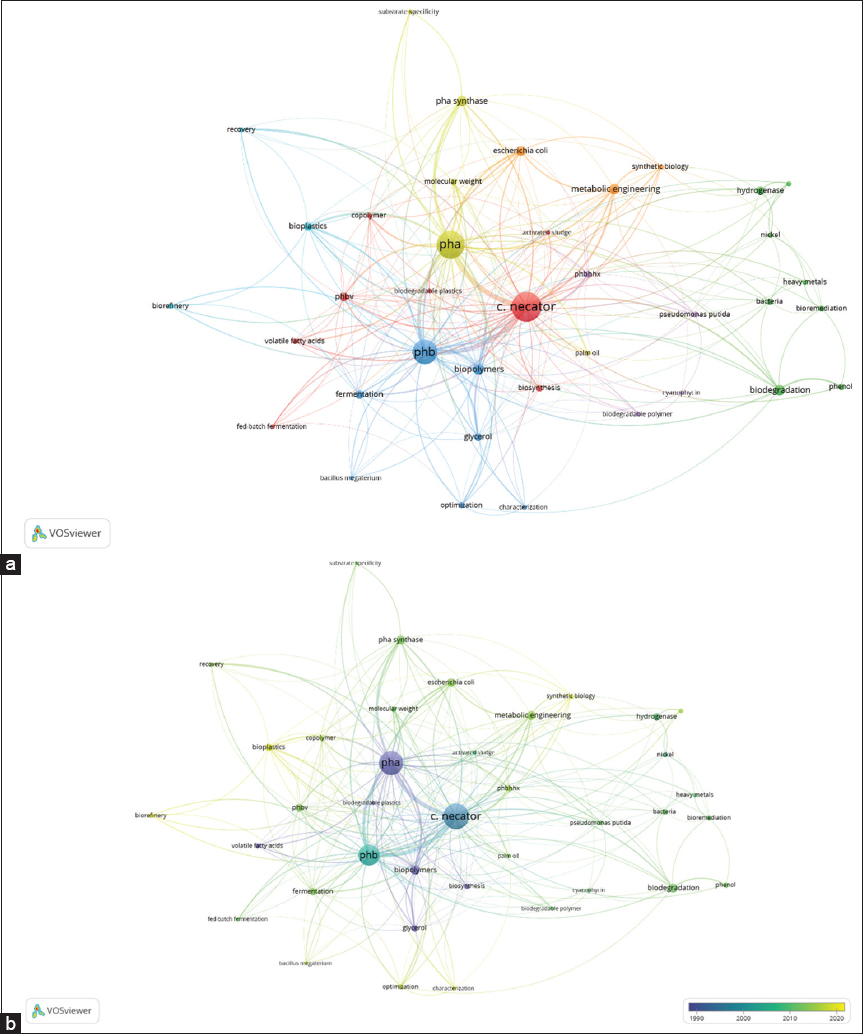

Figure 5: Bibliometric network of studies related to polyhydroxyalkanoates production by Cupriavidus necator between 2000 and 2022 in Web of Science (a) Network visualization of the research-topic map (b) Overlay visualization of the research-topic map. The minimum number of occurrences of a keyword is 15.



[Click here to view]

The information retrieved from WOS displays the clusters as follows: cluster 1 (red color): PHBV, biodegradable plastics, activated sludge, volatile fatty acids, fed-batch fermentation; cluster 2 (green color): bacteria, biodegradation, bioremediation, hydrogen, hydrogenase; cluster 3 (blue color): Bacillus megaterium, glycerol, fermentation, optimization, characterization; cluster 4 (yellow color): molecular weight, palm oil, substrate specificity; cluster 5 (purple color): biodegradable polymer, PHBHHX, P. putida; cluster 6 (magenta blue color): bioplastic, biorefinery, recovery; and cluster 7 (orange color): Escherichia coli, metabolic engineering, synthetic biology [Figure 5a].

In summary, and considering the information retrieved from both databases, we consider highlighting the inexpensive carbon sources for PHA production, and their relationship with the Latin American Bioeconomy.

3.5. Carbon Sources for PHA Production

The main barrier to the large-scale production of PHA is the high cost of the carbon source used, representing up to 50% of the total cost of the bioplastic. Therefore, recent research has included the search for low-cost raw materials as a priority, including raw materials from (agro)industrial by-products, as well as renewable sources, which guarantee stable and cost-effective production over time [62].

Figure 6 shows the bibliometric networks of carbon sources used in the production of PHA by C. necator for the periods 1992-2022 and 2000-2022 by using Scopus [Figure 6a] and WOS [Figure 6b] databases, respectively. A review of the networks over time shows that the first carbon sources used to produce PHA by C. necator were invert sugars, organic acids, activated sludge, among others. These studies date back to the year 2000. For the years 2010–2015, the production of PHA is centered on waste oil, oleic acid, waste glycerol, and from 2020, the trend is to use carbon sources such as vinasse, sugarcane molasses, fruit residues, CO2, starchy and vegetable oils.

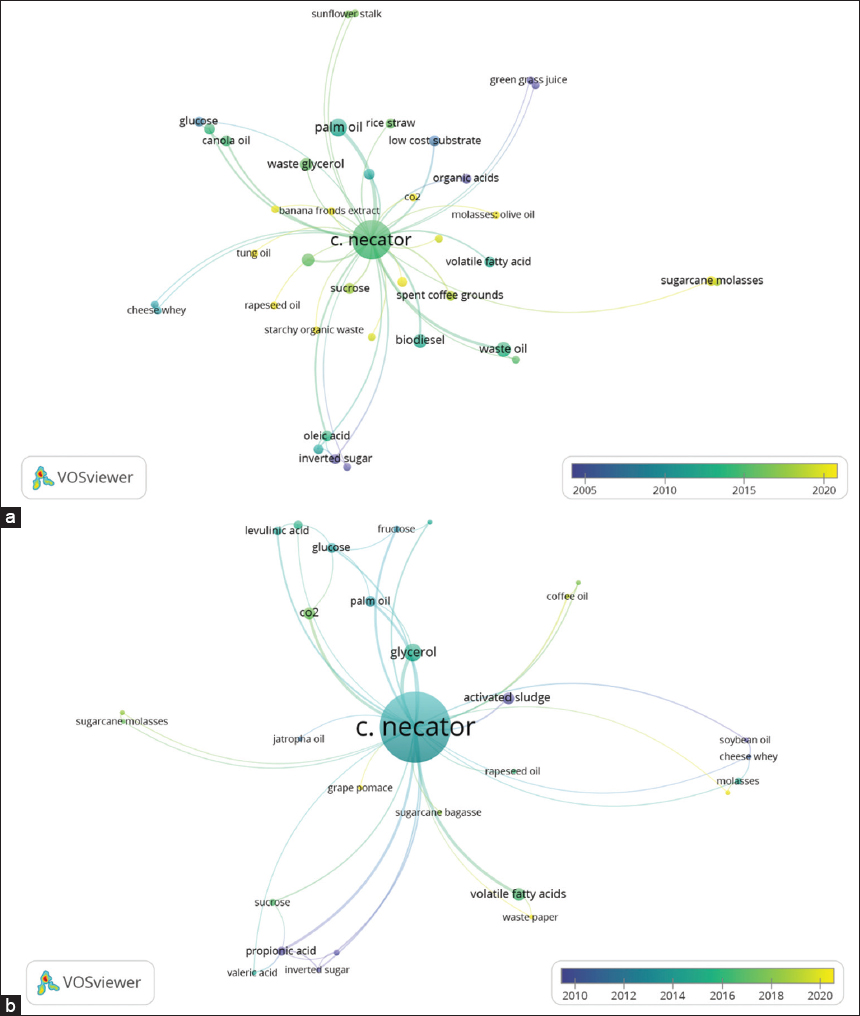

Figure 6: Overlay visualization of the research-topic map of studies of Cupriavidus necator related to carbon source to produce polyhydroxyalkanoates (a) Scopus and (b) Web of Science. The minimum number of occurrences of a keyword is 1.



[Click here to view]

One of the great current efforts in the field of research on PHA production is the tireless search for rational alternatives to reduce the production costs of these biopolymers. Carbon sources from agro-industrial, domestic, and industrial wastes are currently the subject of study in most of the research related to PHA, as reviewed by Guleria et al. [62]. In this section, the carbon sources most used in the production of PHA by C. necator are discussed, considering the results of the bibliometric analysis [Figure 6].

3.5.1. Fat and oils residues

As the research shows, there is currently a great interest in the use of waste fats and oils as raw materials to obtain new value-added products. The generation of waste from the meat industry worldwide represents 20% of the total waste generated by the food industry. As a result, animal fat is being valorized to produce various products, including PHA, as a result of the waste management policies of many countries and the interest of the scientific community in optimizing resources and reducing environmental impact [63].

Fats obtained from different by-products of the meat industry were used to obtain the copolymer poly(hydroxybutyrate-co-hydroxyhexanoate) [P(HB-co-HHx)], using R. eutropha Re2058/pCB113. Initially, the by-products of this industry were subjected to either mechanical or enzymatic pre-treatment. Then, the fat was obtained by means of a thermo-pressure hydrolysis process at a temperature of 130–180°C and pressure of 3–20 bars, followed by a separation phase. To obtain the polymer, they used pork fat, fish fat, pork fat/protein emulsion, pork mineral-fat-mixture, pork fat-greaves, and canola oil as carbon sources. The authors report an accumulation of 90% of the polymer with a HHx content of 12%–26 mol% [64]. Gutschmann et al. [65], using the same strain, employed animal fat to produce P(HB-co-HHx). For the use of fat as a carbon source they carried out thermal liquefaction, using a 150 L pilot scale double jacketed feeding system, employing continuous feeding. The laboratory scale cultures yielded results of 80% PHA accumulation and 17 mol% HHX content. Riedel et al. [66] evaluated of production of PHA using low-quality and poorly consumable animal fats after an emulsification strategy. The authors conducted cultivations of the wild-type R. eutropha strain H16 for PHB production and also cultivations of the recombinant strain Re2058/pCB113 for the production of P(HB-co-HHx) copolymer. An accumulation of 79–82% PHB was achieved with wild-type strain while recombinant strain reached 49–72% (w/w) of PHA per CDW with an HHx content of 16–27 mol%.

Our search also showed that waste oils are low-cost sources of carbon to produce PHA. Indeed, many research reporting the use of olive oil waste effluent used cooking oil, palm oil, coffee waste oil, jatropha oil, and other oils [62,67-70]. Coffee waste is also an inexpensive substrate containing fatty acids. Poly(3-hydroxybutyrate-co-3-hydroxyhexanoate) was produced in engineered strain C. necator Re2133 overexpressing (R)-specific enoyl coenzyme-A hydratase (phaJ) and PHA synthetase (phaC2) with deletion of acetoacetyl Co-A reductases (phaB1, phaB2, and phaB3) from coffee waste oil. PHA copolymer yield was 69% and was obtained with a coffee oil concentration of 1.5% and C/N ratio of 20. In addition, the PHA accumulation PHA consisted of HB (78 mol%) and HHx (22 mol%) [67].

Glycerol is another residual carbon source from oil processing, which is used in the synthesis of PHA. Indeed, PHA of different compositions was synthesized by using glycerol as a carbon substrate. In that work, PHB was effectively synthesized by C. eutrophus B-10646 (a patented engineered strain of C. necator) in fed-batch cultivations with purity degrees ranging 82–99%, yielding a maximum of 78% polymer accumulation [71]. Furthermore, tung oil, a natural oil obtained from the seeds of the tung tree, which is used industrially to treat wood because of its high strength, was used as a carbon source using the R. eutropha Re2133/pCB81 strain to produce the terpolymer P(3HB-co-3HV-co-3HHx) [72]. Furthermore, the authors also reported that the oil coating on the surface of the PHA films had antioxidant activity. This bioactive PHA may be expanded to medical field applications.

3.5.2. Sugar-rich residues and derivatives

The world sugar industry produces roughly 70 million tons of molasses per year. Despite it being considered a byproduct of sugar production, its world trade is consistently decreasing due to the valorization activities on site. Bioplastics production is also an interesting alternative for sugar waste valorization. Currently, research on engineered PHA producers from sugar byproducts is still low. C. necator has a deficient utilization of simple sugars as a carbon source for PHA production. Therefore, some engineered strains have been constructed to allow the assimilation of simple sugars as a substrate in the production of PHA. Recombinant strains of C. necator expressing genes phaC1437 from Pseudomonas sp. 6-19, pct540 from Clostridium propionicum, sac from Mannheimia succinici producens and ldhA from E. coli can produce poly (3-hydroxybutyrate-colactate) using sucrose as the sole carbon source [73].

The pathway for sucrose utilization was introduced in an engineered C. necator by introducing the sacC gene encoding the β-fructofuranosidase from M. succiniciproducens. The enzyme hydrolyzes sucrose into glucose and fructose and PHB yield reached 73% in cultivations with 20 g/L sucrose concentration. The same strain was cultivated using sugarcane molasses pre-treated with activated carbon as the carbon source to produce PHB and poly(3-hydroxybutyrate-co-lactate). The final PHB content achieved was 82.5% in batch fermentations [74].

Sugar-rich hydrolysates as inexpensive carbon sources have been also used for PHA production. Strains of C. necator have been used to synthesize PHB from wheat bran hydrolysates [75]. Likewise, recombinant strains of this same bacterium have been engineered to metabolize arabinose, by heterologous expression of a set of E. coli genes [76].

C. necator H16 and C. necator 5119 strains were co-cultured with Bacillus subtilis since it is a sucrose hydrolyzing organism resulting in 45% PHA production and propionic acid, which is a precursor for the hydroxyvalerate monomeric unit. Thus, the microbial consortia produced 66% poly(3-hydroxybutyrate-co-3-hydroxyvalerate) having 16 mol% hydroxyvalerate, showing that co-culture strategy allows overcoming the requirement of a previous strain engineering for sucrose utilization in PHA production [77].

Vinasse was also used as a basal medium for PHB production with C. necator L359PCJ, which uses glycerol from vinasse as a carbon source rather than residual sugars. Experiments in CSTR bioreactors using a medium concentrated vinasse based produced a PHB content of 66.3% [78]. Recently, C. necator B-10646 was grown on sugar beet molasses previously hydrolyzed with b-fructofuranosidase, converting 89% of the sucrose (88.9%) into glucose and fructose. In that case, the maximum PHB content reached was 80% [79].

Starch is a high-quality glucose source with high availability and low cost. C. necator DSM 545 has been reported as unable to grow on starch. To overcome this limitation, a recombinant strain was constructed expressing glucodextranase G1d from Arthrobacter globiformis I42 and the α-amylase amyZ from Zunongwangia profunda SM-A87. PHA yields were 34, 52, and 63% with purple sweet potato waste, broken rice, and raw corn starch, respectively [80]. Similar results were obtained in the R. eutropha DSM 545 strain using simultaneous saccharification and fermentation along with the addition of commercial amylases [81]. Furthermore, PHA production using cassava starch hydrolysate using C. necator KKU38 cultivated under N-limited conditions produced 61.60% of PHB. Cassava flour hydrolysates were also used in the cultivation of C. necator H16 yielding a PHA accumulation of 64% [82].

3.6. Perspectives for the Latin American Bioeconomy

Currently, green innovativeness is considered a significant component of economic progress, environmental sustainability, and improving wellness levels [83]. For the period studied, the results showed the global collaboration network of the PHA scientific ecosystem. Clearly, Germany, the USA, China, Japan, South Korea, France, England/United Kingdom, Malaysia, Belgium, and India, among others, show the strongest collaboration and higher number of contributions [Figure 7]. Most of EU countries are also part of intense collaboration, which remarks the compromise of the economic community in advancing toward a sustainable bioeconomy and particularly, in the substitution of petrochemical-based materials. As depicted in Figures 7a and 7b, countries that are not part of the most industrialized economies but are important in the primary sector and biomass resources such as Malaysia, India, and Latin America (with Brazil as the main contributor), also contribute significantly to the knowledge in PHA production.

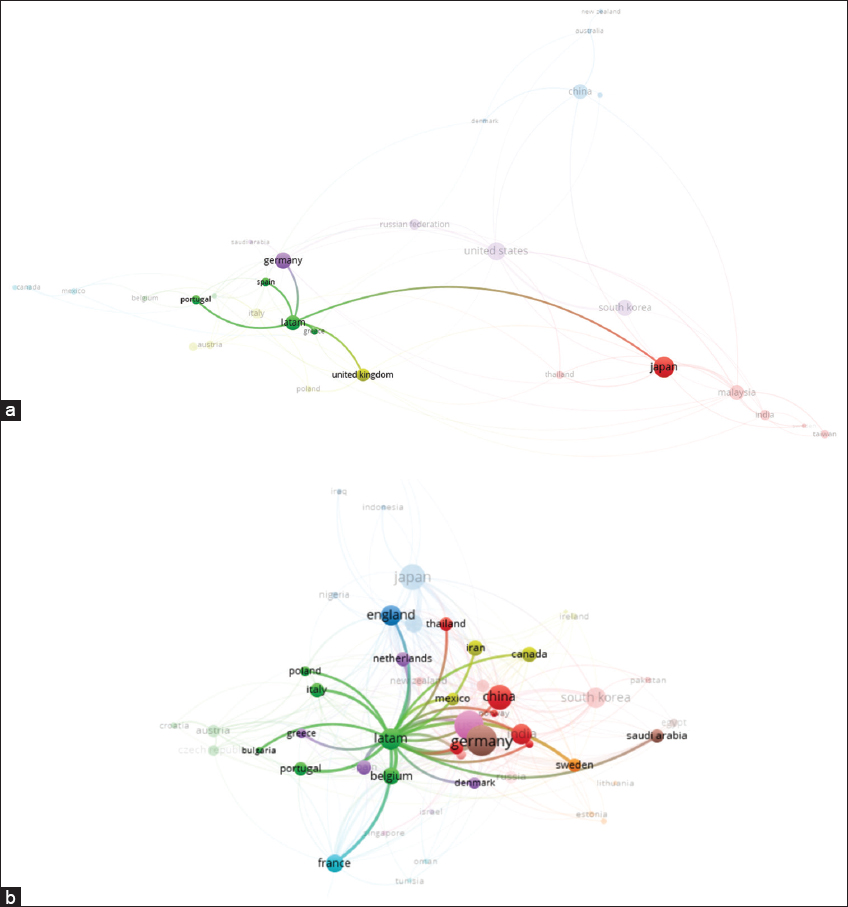

Figure 7: Latin American collaborations network of studies related to production polyhydroxyalkanoates by Cupriavidus necator, (a) Scopus and (b) Web of Science. The minimum number of occurrences of a keyword is 5.



[Click here to view]

Research in topics such as biomaterials and green chemistry is emerging and growing fast since those areas are expected to play an important role in a low-carbon economy and the generation of innovative bioindustries [1]. Concerning the large-scale production of bio-based chemicals, the OECD proposes that around 35% of industrial chemicals are substituted by bio-based chemicals by 2030. Latin America contributes approximately 4% of the global virgin plastics production, equivalent to 14.4 million tons, destined mostly for the domestic markets. As for 2022, the world’s bioplastics production was 2.217 million tons, which is less than 1% of the total demand for plastics [8]. The share of bioplastics production with respect to fossil-derived materials in Latin America follows the same trend; currently, it is only 1.3%. Nevertheless, when observed the sole bioplastics market Latin America contributes 9% of the total bioplastics production, equivalent to 189 thousand tons [84].

The bioplastics industry is growing fast, with a projected growth rate of 3.7% for 2023, which means for Latin America a value of 2 billion USD [84]. In the current global plastics market, only Mexico is an important player, with 5% of the total polymer exports given its important refining capacity in the region. On the opposite side, Brazil is expected to become a big player in the biodegradable polymers industry with an important share in the market for bioplastics, considering its leadership in the sugar and oleaginous exportations with 20% and 30% of the global trade, respectively [85]. Apart from Brazil, Argentina is the 5th world exporter of oleaginous seeds, while Mexico, Colombia, and Guatemala are in the top 20 sugar exporters [85]. As it has been previously shown, those materials are the source of prospective inexpensive substrates for PHA production. The geographical and meteorological conditions favor the crops, plantations, and husbandry activities, which allows the continuous production of biomass during the whole year. These conditions might become Latin America an interesting hub for the production of PHA, bioplastics and, in general, many different bioproducts required for the transition towards a sustainable bioeconomy.

The world production of bioplastics is forecasted to triplicate in 2026 the production of 2021 up to 7.6 million tons, in which at less 70% would be biodegradable and the rest biobased non-biodegradable [8]. Nevertheless, this is still a very low percentage (2%) of global plastics production; hopefully, the growth would be higher as new regulations and restrictions on the use of nonbiodegradable plastics are introduced worldwide. Since Brazil is the world leader in the sugarcane industry and oleaginous seeds production, it has comparative and competitive advantages that can be also irradiated to its neighbor countries with similar geographic conditions. This also depends on effective economic integration between the South American countries and infrastructure developments that increase their competitiveness.

In the last years, Brazil has experienced the fastest industrial growth in bioplastics production in Latin America due to the very developed agro-industrial activity and big bioethanol distilleries that produce different kinds of biowaste with the potential for transformation into added-value bioproducts. Certainly, Brazil is called to lead the transition toward bioplastics in the continent; currently, this country accounts for more than 50% of the total bioplastics production in South America. An important pool of multinationals such as Amcor, Arkema, BASF, BioAmber, DowDuPont, Mitsubishi Chemical Corporation, NatureWorks LLC, Novamont, Solvay, and many others have a presence in the country, in addition to the local Braskem, which is the largest petrochemical company in Latin America. All of them have established plans in the country with the aim to develop bioplastic production facilities. Indeed, the UN Economic Commission for Latin America and the Caribbean (ECLAC) recognized in 2020 the production of a bioplastic developed by Braskem as one of the most outstanding cases of sustainable development in the continent.

In this interesting panorama, the PHA production is expected to multiply 10-fold the current small production of 56 thousand tons, by 2027 [8]. Latin America is a region with a high potential for biomass production given the availability of cultivable land, fertile soils, and water supply that favor the consolidation of production chains in food production, fibers and forestry, bioproducts, and bioenergy [86]. In addition, the availability of large amounts of waste biomass generated in the primary sector of the economy still lacks adequate waste management in many geographical areas.

Since the most prospective low-cost substrates, namely fats and oils, sugars, starch and their derivatives are readily available in Latin America from different sources, positive perspectives are envisioned for the establishment of processes for PHA and other bioplastics production in the continent. Some estimations indicate that Latin America could host up to 45-50% of the global bioplastics production. However, the funding of research in the region is considerably low when compared to USA, Asia, and Europe. The mean investment in science, technology, and innovation in the region is less than 1% of the GDP; this condition limits the scientific capacities of the Latin American countries, turning them into low-specialized economies that import technology, act as raw materials suppliers, or serves as a location for industrial outsourcing.

Recently, Moshood et al. [83] examined the biodegradable plastic product innovation across biodegradable plastic firms and non-governmental organizations (NGOs) emphasizing energy savings, public policies, and reductions in materials and pollution control as strategic points for business leaders, academics, and policymakers. The ECLAC has identified some common issues to be solved to promote the bioeconomy-related industries in Latin America: (i) absence of adequate regulatory frameworks, (ii) complexity of national regulatory processes, (iii) weak capacities to comply with external regulations in the target markets for bioproducts, (iv) incompatibility of regulations between conventional products and similar bioproducts and (v) difficulty in enforcing existing regulations [86]. The knowledge of the different kinds of biomass available, the formulation of precise public policies, the increase of the cooperation for the development of scientific and technological capabilities and the identification of the market potential, products, and applications would help to faster adoption of bioplastics in the region and towards the external markets.

3.7. Business Landscape in Colombia

Colombian’s biomass residues account for about 20 million metric tons annually. However, the Colombian’s government estimates this potential up to 43 million tons of biomass residues. Here, the agricultural sector plays an important role in Colombia´s bioeconomy, for example, 33 megatons of sugarcane were produced in 2019 [87]. The following are some of the productions in this sector (in metric tons): Coffee (720,000), corn (1.3 million), potatoes (3.1 million), palm oil (5.8 million), bananas (3.7 million), pineapples (900,000), avocado (325,000) [88]. Thus, the potential of Colombia, and other neighboring countries such as Ecuador, Peru, and Brazil, could contribute to low-cost coal sources for the production of PHA.


4. CONCLUSIONS

A clear scientific interest in the use of low-cost feedstocks (such as starch, waste fats and oils, molasses, and cellulose hydrolysates) for PHA production by C. necator arose during the last decade. The geographical and meteorological conditions of Latin America may open the opportunity to establish productive processes of PHA and bioplastics production in the region thanks to the high availability of biomass, products, and byproducts from agroindustry during the whole year. From regulatory and cooperation standpoints, efforts are required to establish a clear framework in Latin America for the development of bioeconomy initiatives. It is also necessary to intensify the research and strengthen the collaboration on this topic, especially in those regions that may act as potential hubs for the PHA and bioplastic production in the near future. Further studies and more intense scientific collaboration may contribute to achieving the objective of feasible and profitable PHA production as a real substitution alternative for conventional plastics.


5. ACKNOWLEDGMENTS

Martha L Ascencio-Galván acknowledges MinCiencias for funding her doctoral studies under the Bicentennial Doctoral Excellence Scholarship program.


6. AUTHORS’ CONTRIBUTIONS

Conceptualization, V.A.L-A and H.R.-M.; methodology, M.L.A-G and H.R.-M.; software, M.L.A-G.; validation, M.L.A-G and H.R.-M.; formal analysis, M.L.A-G and D.G-R.; investigation, M.L.A-G.; resources, M.L.A-G.; data curation, M.L.A-G.; writing—original draft preparation, M.L.A-G.; writing—review and editing, D.G-R, V.A.L-A and H.R.-M.; visualization, M.L.A-G.; supervision, V.A.L.-A and H.R.-M.; project administration, H.R.-M. All authors have read and agreed to the published version of the manuscript.


7. FUNDING

The authors acknowledge the funding by Vicerrectoría de Investigaciones, Universidad del Valle, Project CI-21191.


8. CONFLICTS OF INTEREST

The authors declare that there are no conflicts of interest.


9. ETHICAL APPROVALS

This study does not involve experiments on animals or human subjects.


10. DATA AVAILABILITY

All the data is available with the authors and shall be provided upon request.


11. PUBLISHER’S NOTE

This journal remains neutral with regard to jurisdictional claims in published institutional affiliation.

REFERENCES

1.  Wei X, Liu Q, Pu A, Wang S, Chen F, Zhang L, et al. Knowledge mapping of bioeconomy:A bibliometric analysis. J Clean Prod 2022;373:1-11. [https://doi.org/10.1016/j.jclepro.2022.133824]

2.  AISBL. Plastics-the Facts 2022;2023. Available from:https://plasticseurope.org/es/knowledge-hub/plasticos-situacion-en-2022 [Last accesed on 2023 Mar 18].

3.  Bradney L, Wijesekara H, Palansooriya KN, Obadamudalige N, Bolan NS, Ok YS, et al. Particulate plastics as a vector for toxic trace-element uptake by aquatic and terrestrial organisms and human health risk. Environ Int 2019;131:104937. [https://doi.org/10.1016/j.envint.2019.104937]

4.  Lehner R, Weder C, Petri-Fink A, Rothen-Rutishauser B. Emergence of nanoplastic in the environment and possible impact on human health. Environ Sci Technol 2019;53:1748-65. [https://doi.org/10.1021/acs.est.8b05512]

5.  Kasavan S, Yusoff S, Rahmat Fakri MF, Siron R. Plastic pollution in water ecosystems:A bibliometric analysis from 2000 to 2020. J Clean Prod 2021;313:127946. [https://doi.org/10.1016/j.jclepro.2021.127946]

6.  Albuquerque PB, Malafaia CB. Perspectives on the production, structural characteristics and potential applications of bioplastics derived from polyhydroxyalkanoates. Int J Biol Macromol 2018;107:615-25. [https://doi.org/10.1016/j.ijbiomac.2017.09.026]

7.  Choi TR, Song HS, Han YH, Park YL, Park JY, Yang SY, et al. Enhanced tolerance to inhibitors of Escherichia coli by heterologous expression of cyclopropane-fatty acid-acyl-phospholipid synthase (cfa) from Halomonas socia. Bioprocess Biosyst Eng 2020;43:909-18. [https://doi.org/10.1007/s00449-020-02287-8]

8.  EUBP. European Bioplastics;2023. Available from:https://www.european-bioplastics.org/bioplastics/materials/biodegradable [Last accessed on 2023 Mar 15].

9.  Mathuriya AS, Yakhmi JV. Polyhydroxyalkanoates:Biodegradable plastics and their applications. In:Handbook of Ecomaterials. Vol. 4. Berlin:Springer International Publishing;2019. 2873-900. [https://doi.org/10.1007/978-3-319-68255-6_84]

10.  Mannina G, Presti D, Montiel-Jarillo G, Carrera J, Suárez-Ojeda ME. Recovery of polyhydroxyalkanoates (PHAs) from wastewater:A review. Bioresour Technol 2020;297:122478. [https://doi.org/10.1016/j.biortech.2019.122478]

11.  Sudesh K, Abe H, Doi Y. Synthesis, structure and properties of polyhydroxyalkanoates:Biological polyesters. Prog Polym Sci (Oxford) 2000;25:1503-55. [https://doi.org/10.1016/S0079-6700(00)00035-6]

12.  Chen GQ. A microbial polyhydroxyalkanoates (PHA) based bio- and materials industry. Chem Soc Rev 2009;38:2434-46. [https://doi.org/10.1039/b812677c]

13.  Koller M, Mukherjee A. Polyhydroxyalkanoates - Linking properties, applications, and end-of-life options. Chem Biochem Eng Q 2020;34:115-29. [https://doi.org/10.15255/CABEQ.2020.1819]

14.  Cavalheiro JM, De Almeida MC, Da Fonseca MM, De Carvalho CC. Adaptation of Cupriavidus necator to conditions favoring polyhydroxyalkanoate production. J Biotechnol 2012;164:309-17. [https://doi.org/10.1016/j.jbiotec.2013.01.009]

15.  Gahlawat G, Srivastava AK. Model-based nutrient feeding strategies for the increased production of polyhydroxybutyrate (PHB) by Alcaligenes latus. Appl Biochem Biotechnol 2017;183:530-42. [https://doi.org/10.1007/s12010-017-2482-8]

16.  Vaneechoutte M, Kämpfer P, De Baere T, Falsen E, Verschraegen G. Wautersia gen. nov., a novel genus accomodating the phylogenetic lineage including Ralstonia eutropha and related species, and proposal of Ralstonia [Pseudomonas] syzygii (Roberts et al. 1990) comb. nov. Int J Syst Evol Microbiol 2004;54:317-27. [https://doi.org/10.1099/ijs.0.02754-0]

17.  Kumar M, Rathour R, Singh R, Sun Y, Pandey A, Gnansounou E, et al. Bacterial polyhydroxyalkanoates:Opportunities, challenges, and prospects. J Clean Prod 2020;263:121500. [https://doi.org/10.1016/j.jclepro.2020.121500]

18.  Haque MA, Priya A, Hathi ZJ, Qin ZH, Mettu S, Lin CS. Advancements and current challenges in the sustainable downstream processing of bacterial polyhydroxyalkanoates. Curr Opin Green Sustain Chem 2022;36:100631. [https://doi.org/10.1016/j.cogsc.2022.100631]

19.  Lee GN, Na J. Future of microbial polyesters. Microb Cell Fact 2013;12:54. [https://doi.org/10.1186/1475-2859-12-54]

20.  Volodina E, Raberg M, Steinbüchel A. Engineering the heterotrophic carbon sources utilization range of Ralstonia eutropha H16 for applications in biotechnology. Crit Rev Biotechnol 2016;36:978-91. [https://doi.org/10.3109/07388551.2015.1079698]

21.  Argiz L, Fra-Vázquez A, del Río ÁV, Mosquera-Corral A. Optimization of an enriched mixed culture to increase PHA accumulation using industrial saline complex wastewater as a substrate. Chemosphere 2020;247:125873. [https://doi.org/10.1016/j.chemosphere.2020.125873]

22.  Sangkharak K, Paichid N, Yunu T, Klomklao S, Prasertsan P. Utilisation of tuna condensate waste from the canning industry as a novel substrate for polyhydroxyalkanoate production. Biomass Convers Biorefin 2020;11:2053-64. [https://doi.org/10.1007/s13399-019-00581-4]

23.  Alves AA, Siqueira EC, Barros MP, Silva PE, Houllou LM. Polyhydroxyalkanoates:A review of microbial production and technology application. Int J Environ Sci Technol 2022;20:3409-20. [https://doi.org/10.1007/s13762-022-04213-9]

24.  Jariyasakoolroj P, Leelaphiwat P, Harnkarnsujarit N. Advances in research and development of bioplastic for food packaging. J Sci Food Agric 2019;100:5032-45. [https://doi.org/10.1002/jsfa.9497]

25.  Shruti VC, Kutralam-Muniasamy G. Bioplastics:Missing link in the era of Microplastics. Sci Total Environ 2019;697:134139. [https://doi.org/10.1016/j.scitotenv.2019.134139]

26.  Mozejko-Ciesielska J, Mostek A. A 2D-DIGE-based proteomic analysis brings new insights into cellular responses of Pseudomonas putida KT2440 during polyhydroxyalkanoates synthesis. Microb Cell Fact 2019;18:93. [https://doi.org/10.1186/s12934-019-1146-5]

27.  Park JM, Kim TY, Lee SY. Genome-scale reconstruction and in silico analysis of the Ralstonia eutropha H16 for polyhydroxyalkanoate synthesis, lithoautotrophic growth, and 2-methyl citric acid production. BMC Syst Biol 2011;5:101. [https://doi.org/10.1186/1752-0509-5-101]

28.  Pearcy N, Garavaglia M, Millat T, Gilbert JP, Song Y, Hartman H, et al. A genome-scale metabolic model of Cupriavidus necator H16 integrated with TraDIS and transcriptomic data reveals metabolic insights for biotechnological applications. PLoS Comput Biol 2022;18:1-35:e1010106. [https://doi.org/10.1371/journal.pcbi.1010106]

29.  Pérez-Rivero C, López-Gómez JP, Roy I. A sustainable approach for the downstream processing of bacterial polyhydroxyalkanoates:State-of-the-art and latest developments. Biochem Eng J 2019;150:107283. [https://doi.org/10.1016/j.bej.2019.107283]

30.  Zainab-L I, Sudesh K. High cell density culture of Cupriavidus necator H16 and improved biological recovery of polyhydroxyalkanoates using mealworms. J Biotechnol 2019;305:35-42. [https://doi.org/10.1016/j.jbiotec.2019.09.001]

31.  Bocaz-Beltrán J, Rocha S, Pinto-Ibieta F, Ciudad G, Cea M. Novel alternative recovery of polyhydroxyalkanoates from mixed microbial cultures using microwave-assisted extraction. J Chem Technol Biotechnol 2021;96:2596-603. [https://doi.org/10.1002/jctb.6802]

32.  Favaro L, Basaglia M, Casella S. Improving polyhydroxyalkanoate production from inexpensive carbon sources by genetic approaches:A review. Biofuel Bioprod Biorefin 2019;13:208-27. [https://doi.org/10.1002/bbb.1944]

33.  Koller M, Braunegg G. Biomediated production of structurally diverse poly( hydroxyalkanoates) from surplus streams of the animal processing industry. Polimery Polymers 2015;60:298-308. [https://doi.org/10.14314/polimery.2015.298]

34.  Koller M, Braunegg G. Advanced approaches to produce polyhydroxyalkanoate (PHA) biopolyesters in a sustainable and economic fashion. Eurobiotech J 2018;2:89-103. [https://doi.org/10.2478/ebtj-2018-0013]

35.  Peregrina A, Martins-Lourenço J, Freitas F, Reis MAM, Arraiano CM. Post-transcriptional control in the regulation of polyhydroxyalkanoates synthesis. Life (Basel) 2021;11:853. [https://doi.org/10.3390/life11080853 https://doi.org/10.20944/preprints202108.0426.v1]

36.  Szacherska K, Oleskowicz-Popiel P, Ciesielski S, Mozejko-Ciesielska J. Volatile fatty acids as carbon sources for polyhydroxyalkanoates production. Polymers (Basel) 2021;13:321. [https://doi.org/10.3390/polym13030321]

37.  Vigneswari S, Noor MS, Amelia TS, Balakrishnan K, Adnan A, Bhubalan K, et al. Recent advances in the biosynthesis of polyhydroxyalkanoates from lignocellulosic feedstocks. Life (Basel) 2021;11:807. [https://doi.org/10.3390/life11080807]

38.  Cao JS, Xu RZ, Luo JY, Feng Q, Fang F. Rapid quantification of intracellular polyhydroxyalkanoates via fluorescence techniques:A critical review. Bioresour Technol 2022;350:126906. [https://doi.org/10.1016/j.biortech.2022.126906]

39.  Ramírez-Malule H, Quiñones-Murillo DH, Manotas-Duque D. Emerging contaminants as global environmental hazards. A bibliometric analysis. Emerg Contam 2020;6:179-93. [https://doi.org/10.1016/j.emcon.2020.05.001]

40.  Sanchez-Ledesma LM, Ramírez-Malule H, Rodríguez-Victoria JA. Volatile fatty acids production by acidogenic fermentation of wastewater:A bibliometric analysis. Sustainability 2023;15:2370. [https://doi.org/10.3390/su15032370]

41.  van Eck NJ, Waltman L. Software survey:VOSviewer, a computer program for bibliometric mapping. Scientometrics 2010;84:523-38. [https://doi.org/10.1007/s11192-009-0146-3]

42.  OECD. Policies for Bioplastics in the Context of a Bioeconomy. France:OECD;2013.

43.  Cavalheiro JM, de Almeida MC, Grandfils C, da Fonseca MM. Poly(3-hydroxybutyrate) production by Cupriavidus necator using waste glycerol. Process Biochem 2009;44:509-15. [https://doi.org/10.1016/j.procbio.2009.01.008]

44.  Pohlmann A, Fricke WF, Reinecke F, Kusian B, Liesegang H, Cramm R, et al. Genome sequence of the bioplastic-producing “Knallgas”bacterium Ralstonia eutropha H16. Nat Biotechnol 2006;24:1257-62. [https://doi.org/10.1038/nbt1244]

45.  Harding KG, Dennis JS, von Blottnitz H, Harrison ST. Environmental analysis of plastic production processes:Comparing petroleum-based polypropylene and polyethylene with biologically-based poly-β-hydroxybutyric acid using life cycle analysis. J Biotechnol 2007;130:57-66. [https://doi.org/10.1016/j.jbiotec.2007.02.012]

46.  Akiyama M, Tsuge T, Doi Y. Environmental life cycle comparison of polyhydroxyalkanoates produced from renewable carbon resources by bacterial fermentation. Polym Degrad Stab 2003;80:183-94. [https://doi.org/10.1016/S0141-3910(02)00400-7]

47.  Kahar P, Tsuge T, Taguchi K, Doi Y. High yield production of polyhydroxyalkanoates from soybean oil by Ralstonia eutropha and its recombinant strain. Polym Degrad Stab 2004;83:79-86. [https://doi.org/10.1016/S0141-3910(03)00227-1]

48.  Castilho LR, Mitchell DA, Freire DM. Production of polyhydroxyalkanoates (PHAs) from waste materials and by-products by submerged and solid-state fermentation. Bioresour Technol 2009;100:5996-6009. [https://doi.org/10.1016/j.biortech.2009.03.088]

49.  Jung YK, Kim TY, Park SJ, Lee SY. Metabolic engineering of Escherichia coli for the production of polylactic acid and its copolymers. Biotechnol Bioeng 2010;105:161-71. [https://doi.org/10.1002/bit.22548]

50.  Slater S, Houmiel L, Tran M, Mitsky A, Taylor B, Padgette R, Gruys J. Multiple β-ketothiolases mediate poly (β-hydroxyalkanoate) copolymer synthesis in Ralstonia eutropha. J Bacteriol 1998;180:1979-87. [https://doi.org/10.1128/JB.180.8.1979-1987.1998]

51.  Fukui T, Doi Y. Eficient production of polyhydroxyalkanoates from plant oils by Alcaligenes eutrophus and its recombinant strain. Appl Microbiol Biotechnol 1998;49:333-6. [https://doi.org/10.1007/s002530051178]

52.  Sim SJ, Snell KD, Hogan SA, Stubbe J, Rha C, Sinskey AJ. PHA synthase activity controls the molecular weight and polydispersity of polyhydroxybutyrate in vivo. Nat Biotechnol 1996;15:63-7. [https://doi.org/10.1038/nbt0197-63]

53.  Yu J, Stahl H. Microbial utilization and biopolyester synthesis of bagasse hydrolysates. Bioresour Technol 2008;99:8042-8. [https://doi.org/10.1016/j.biortech.2008.03.071]

54.  Liu C, Colón BC, Ziesack M, Silver PA, Nocera DG. Water splitting-biosynthetic system with CO2 reduction efficiencies exceeding photosynthesis. Science 2016;352:1206-10. [https://doi.org/10.1126/science.aaf5039]

55.  Richardson DJ. Bacterial respiration:A flexible process for a changing environment. Microbiology (Reading) 2000;146:551-71. [https://doi.org/10.1099/00221287-146-3-551]

56.  Steen EJ, Chan R, Prasad N, Myers S, Petzold CJ, Redding A, et al. Metabolic engineering of Saccharomyces cerevisiae for the production of n-butanol. Microb Cell Fact 2008;7:36. [https://doi.org/10.1186/1475-2859-7-36]

57.  Franke S, Grass G, Rensing C, Nies DH. Molecular analysis of the copper-transporting efflux system CusCFBA of Escherichia coli. J Bacteriol 2003;185:3804-12. [https://doi.org/10.1128/JB.185.13.3804-3812.2003]

58.  Vandamme P, Coenye T. Taxonomy of the genus Cupriavidus:A tale of lost and found. Int J Syst Evol Microbiol 2004;54:2285-9. [https://doi.org/10.1099/ijs.0.63247-0]

59.  Koller M, Maršálek L, de Sousa Dias MM, Braunegg G. Producing microbial polyhydroxyalkanoate (PHA) biopolyesters in a sustainable manner. N Biotechnol 2017;37:24-38. [https://doi.org/10.1016/j.nbt.2016.05.001]

60.  Chang MC, Keasling JD. Production of isoprenoid pharmaceuticals by engineered microbes. Nat Chem Biol 2006;2:674-81. [https://doi.org/10.1038/nchembio836]

61.  Fritsch J, Scheerer P, Frielingsdorf S, Kroschinsky S, Friedrich B, Lenz O, et al. The crystal structure of an oxygen-tolerant hydrogenase uncovers a novel iron-sulphur centre. Nature 2011;479:249-53. [https://doi.org/10.1038/nature10505]

62.  Guleria S, Singh H, Sharma V, Bhardwaj N, Arya SK, Puri S, et al. Polyhydroxyalkanoates production from domestic waste feedstock:A sustainable approach towards bio-economy. J Clean Prod 2022;340:130661. [https://doi.org/10.1016/j.jclepro.2022.130661]

63.  Pinto J, Boavida-Dias R, Matos HA, Azevedo J. Analysis of the food loss and waste valorisation of animal by-products from the retail sector. Sustainability 2022;14:2830. [https://doi.org/10.3390/su14052830]

64.  Saad V, Gutschmann B, Grimm T, Widmer T, Neubauer P, Riedel SL. Low-quality animal by-product streams for the production of PHA-biopolymers:Fats, fat/protein-emulsions and materials with high ash content as low-cost feedstocks. Biotechnol Lett 2021;43:579-87. [https://doi.org/10.1007/s10529-020-03065-y]

65.  Gutschmann B, Maldonado Simões M, Schiewe T, Schröter ES, Münzberg M, Neubauer P, et al. Continuous feeding strategy for polyhydroxyalkanoate production from solid waste animal fat at laboratory- and pilot-scale. Microb Biotechnol 2022;16:295-306. [https://doi.org/10.1111/1751-7915.14104]

66.  Riedel SL, Jahns S, Koenig S, Bock MC, Brigham CJ, Bader J, et al. Polyhydroxyalkanoates production with Ralstonia eutropha from low quality waste animal fats. J Biotechnol 2015;214:119-27. [https://doi.org/10.1016/j.jbiotec.2015.09.002]

67.  Bhatia SK, Kim JH, Kim MS, Kim J, Hong JW, Hong YG, et al. Production of (3-hydroxybutyrate-co-3-hydroxyhexanoate) copolymer from coffee waste oil using engineered Ralstonia eutropha. Bioprocess Biosyst Eng 2018;41:229-35. [https://doi.org/10.1007/s00449-017-1861-4]

68.  Dionisi D, Carucci G, Petrangeli Papini M, Riccardi C, Majone M, Carrasco F. Olive oil mill effluents as a feedstock for production of biodegradable polymers. Water Res 2005;39:2076-84. [https://doi.org/10.1016/j.watres.2005.03.011]

69.  Li D, Gao M, Qiu Y, Su Y, Ma X, Wang F, et al. Strategy for economical and enhanced polyhydroxyalkanoate production from synergistic utilization of palm oil and derived wastewater by activated sludge. Bioresour Technol 2019;53:1748-65.

70.  Ng KS, Wong YM, Tsuge T, Sudesh K. Biosynthesis and characterization of poly(3-hydroxybutyrate-co-3- hydroxyvalerate) and poly(3-hydroxybutyrate-co-3-hydroxyhexanoate) copolymers using Jatropha oil as the main carbon source. Process Biochem 2011;46:1572-8. [https://doi.org/10.1016/j.procbio.2011.04.012]

71.  Volova T, Demidenko A, Kiselev E, Baranovskiy S, Shishatskaya E, Zhila N. Polyhydroxyalkanoate synthesis based on glycerol and implementation of the process under conditions of pilot production. Appl Microbiol Biotechnol 2019;103:225-37. [https://doi.org/10.1007/s00253-018-9460-0]

72.  Lee HS, Lee SM, Park SL, Choi TR, Song HS, Kim HJ, et al. Tung oil-based production of high 3-hydroxyhexanoate-containing terpolymer poly(3-hydroxybutyrate-co-3-hydroxyvalerate-co-3-hydroxyhexanoate) using engineered Ralstonia eutropha. Polymers (Basel) 2021;13:1084. [https://doi.org/10.3390/polym13071084]

73.  Park SJ, Jang YA, Lee H, Park AR, Yang JE, Shin J, et al. Metabolic engineering of Ralstonia eutropha for the biosynthesis of 2-hydroxyacid-containing polyhydroxyalkanoates. Metab Eng 2013;20:20-8. [https://doi.org/10.1016/j.ymben.2013.08.002]

74.  Jo SY, Sohn YJ, Park SY, Son J, Yoo JI, Baritugo KA, et al. Biosynthesis of polyhydroxyalkanoates from sugarcane molasses by recombinant Ralstonia eutropha strains. Korean J Chem Eng 2021;38:1452-9. [https://doi.org/10.1007/s11814-021-0783-7]

75.  Annamalai N, Sivakumar N. Production of polyhydroxybutyrate from wheat bran hydrolysate using Ralstonia eutropha through microbial fermentation. J Biotechnol 2016;237:13-7. [https://doi.org/10.1016/j.jbiotec.2016.09.001]

76.  Lu X, Wang L, Yang Z, Lu H. Strategies of polyhydroxyalkanoates modification for the medical application in neural regeneration/nerve tissue engineering. Adv Biosci Biotechnol 2013;4:731-40. [https://doi.org/10.4236/abb.2013.46097]

77.  Bhatia SK, Yoon JJ, Kim HJ, Hong JW, Hong YG, Song HS, et al. Engineering of artificial microbial consortia of Ralstonia eutropha and Bacillus subtilis for poly(3-hydroxybutyrate-co-3-hydroxyvalerate) copolymer production from sugarcane sugar without precursor feeding. Bioresour Technol 2018b;257:92-101. [https://doi.org/10.1016/j.biortech.2018.02.056]

78.  Silverio MS, Piccoli RA, dos Reis JL, Gomez JG, Baptista AS. Techno-economic feasibility of P(3-hydroxybutyrate) bioprocess with concentrated sugarcane vinasse as carbon and minerals source:An experimental and in silico approach. Biomass Convers Biorefin 2022;85:1-19. [https://doi.org/10.1007/s13399-022-02710-y]

79.  Kiselev EG, Demidenko AV, Zhila NO, Shishatskaya EI, Volova TG. Sugar beet molasses as a potential C-substrate for PHA production by Cupriavidus necator. Bioengineering 2022;9:154. [https://doi.org/10.3390/bioengineering9040154]

80.  Brojanigo S, Gronchi N, Cazzorla T, Wong TS, Basaglia M, Favaro L, et al. Engineering Cupriavidus necator DSM 545 for the one-step conversion of starchy waste into polyhydroxyalkanoates. Bioresour Technol 2022;347:126383. [https://doi.org/10.1016/j.biortech.2021.126383]

81.  Brojanigo S, Parro E, Cazzorla T, Favaro L, Basaglia M, Casella S. Conversion of starchy waste streams into polyhydroxyalkanoates using Cupriavidus necator DSM 545. Polymers (Basel) 2020;12:1496. [https://doi.org/10.3390/polym12071496]

82.  Alcaraz Zapata W, Acosta Cárdenas A, Villa Restrepo AF. Evaluation of polyhydroxyalkanoate (PHAs) production with a bacterial isolate using cassava flour hydrolysates as an alternative substrate. Dyna (Medellin) 2019;86:75-81. [https://doi.org/10.15446/dyna.v86n208.72019]

83.  Moshood TD, Nawanir G, Mahmud F, Mohamad F, Ahmad MH, AbdulGhani A, et al. Green product innovation:A means towards achieving global sustainable product within biodegradable plastic industry. J Clean Prod 2022;363:132506. [https://doi.org/10.1016/j.jclepro.2022.132506]

84.  Brooks A, Jambeck J, Mozo-Reyes E. Plastic Waste Management and Leakage in Latin America and the Caribbean. United States:Inter-American Development Bank;2020. [https://doi.org/10.18235/0002873]

85.  International Trade Center. Trade Map;2022. Available from:https://www.trademap.org/Index.aspx [Last accessed on 2023 Apr 01].

86.  Rodríguez AG, Rodrigues M, Sotomayor O. Towards a Sustainable Bioeconomy in Latin America and the Caribbean:Elements for a Regional Vision. Available from:https://repositorio.cepal.org/bitstream/handle/11362/44994/1/S1901014_en.pdf [Last accessed on 2023 Apr 01].

87.  Ospina León LJ, Manotas-Duque D, Ramírez-Malule H. Challenges and opportunities of the sugar cane vinasse. A bibliometric analysis. Ing y Compet 2023;25:1-21.

88.  Bioökonomie DE. Colombia. Available from:https://biooekonomie.de/en/topics/in-depth-reports-worldwide/colombia#1 2021 [Last accessed on 2023 Mar 18].

Reference

1. Wei X, Liu Q, Pu A, Wang S, Chen F, Zhang L, et al. Knowledge mapping of bioeconomy: A bibliometric analysis. J Clean Prod 2022;373:1-11. https://doi.org/10.1016/j.jclepro.2022.133824

2. AISBL. Plastics-the Facts 2022; 2023. Available from: https://plasticseurope.org/es/knowledge-hub/plasticos-situacion-en-2022 [Last accesed on 2023 Mar 18].

3. Bradney L, Wijesekara H, Palansooriya KN, Obadamudalige N, Bolan NS, Ok YS, et al. Particulate plastics as a vector for toxic trace-element uptake by aquatic and terrestrial organisms and human health risk. Environ Int 2019;131:104937. https://doi.org/10.1016/j.envint.2019.104937

4. Lehner R, Weder C, Petri-Fink A, Rothen-Rutishauser B. Emergence of nanoplastic in the environment and possible impact on human health. Environ Sci Technol 2019;53:1748-65. https://doi.org/10.1021/acs.est.8b05512

5. Kasavan S, Yusoff S, Rahmat Fakri MF, Siron R. Plastic pollution in water ecosystems: A bibliometric analysis from 2000 to 2020. J Clean Prod 2021;313:127946. https://doi.org/10.1016/j.jclepro.2021.127946

6. Albuquerque PB, Malafaia CB. Perspectives on the production, structural characteristics and potential applications of bioplastics derived from polyhydroxyalkanoates. Int J Biol Macromol 2018;107:615-25. https://doi.org/10.1016/j.ijbiomac.2017.09.026

7. Choi TR, Song HS, Han YH, Park YL, Park JY, Yang SY, et al. Enhanced tolerance to inhibitors of Escherichia coli by heterologous expression of cyclopropane-fatty acid-acyl-phospholipid synthase (cfa) from Halomonas socia. Bioprocess Biosyst Eng 2020;43: 909-18. https://doi.org/10.1007/s00449-020-02287-8

8. EUBP. European Bioplastics; 2023. Available from: https://www. european-bioplastics.org/bioplastics/materials/biodegradable [Last accessed on 2023 Mar 15].

9. Mathuriya AS, Yakhmi JV. Polyhydroxyalkanoates: Biodegradable plastics and their applications. In: Handbook of Ecomaterials. Vol. 4. Berlin: Springer International Publishing; 2019. p. 2873-900. https://doi.org/10.1007/978-3-319-68255-6_84

10. Mannina G, Presti D, Montiel-Jarillo G, Carrera J, Suárez-Ojeda ME. Recovery of polyhydroxyalkanoates (PHAs) from wastewater: A review. Bioresour Technol 2020;297:122478. https://doi.org/10.1016/j.biortech.2019.122478

11. Sudesh K, Abe H, Doi Y. Synthesis, structure and properties of polyhydroxyalkanoates: Biological polyesters. Prog Polym Sci (Oxford) 2000;25:1503-55. https://doi.org/10.1016/S0079-6700(00)00035-6

12. Chen GQ. A microbial polyhydroxyalkanoates (PHA) based bio- and materials industry. Chem Soc Rev 2009;38:2434-46. https://doi.org/10.1039/b812677c

13. Koller M, Mukherjee A. Polyhydroxyalkanoates - Linking properties, applications, and end-of-life options. Chem Biochem Eng Q 2020;34:115-29. https://doi.org/10.15255/CABEQ.2020.1819

14. Cavalheiro JM, De Almeida MC, Da Fonseca MM, De Carvalho CC. Adaptation of Cupriavidus necator to conditions favoring polyhydroxyalkanoate production. J Biotechnol 2012;164:309-17. https://doi.org/10.1016/j.jbiotec.2013.01.009

15. Gahlawat G, Srivastava AK. Model-based nutrient feeding strategies for the increased production of polyhydroxybutyrate (PHB) by Alcaligenes latus. Appl Biochem Biotechnol 2017;183:530-42. https://doi.org/10.1007/s12010-017-2482-8

16. Vaneechoutte M, Kämpfer P, De Baere T, Falsen E, Verschraegen G. Wautersia gen. nov., a novel genus accomodating the phylogenetic lineage including Ralstonia eutropha and related species, and proposal of Ralstonia [Pseudomonas] syzygii (Roberts et al. 1990) comb. nov. Int J Syst Evol Microbiol 2004;54:317-27. https://doi.org/10.1099/ijs.0.02754-0

17. Kumar M, Rathour R, Singh R, Sun Y, Pandey A, Gnansounou E, et al. Bacterial polyhydroxyalkanoates: Opportunities, challenges, and prospects. J Clean Prod 2020;263:121500. https://doi.org/10.1016/j.jclepro.2020.121500

18. Haque MA, Priya A, Hathi ZJ, Qin ZH, Mettu S, Lin CS. Advancements and current challenges in the sustainable downstream processing of bacterial polyhydroxyalkanoates. Curr Opin Green Sustain Chem 2022;36:100631. https://doi.org/10.1016/j.cogsc.2022.100631

19. Lee GN, Na J. Future of microbial polyesters. Microb Cell Fact 2013;12:54. https://doi.org/10.1186/1475-2859-12-54

20. Volodina E, Raberg M, Steinbüchel A. Engineering the heterotrophic carbon sources utilization range of Ralstonia eutropha H16 for applications in biotechnology. Crit Rev Biotechnol 2016;36:978-91. https://doi.org/10.3109/07388551.2015.1079698

21. Argiz L, Fra-Vázquez A, del Río ÁV, Mosquera-Corral A. Optimization of an enriched mixed culture to increase PHA accumulation using industrial saline complex wastewater as a substrate. Chemosphere 2020;247:125873. https://doi.org/10.1016/j.chemosphere.2020.125873

22. Sangkharak K, Paichid N, Yunu T, Klomklao S, Prasertsan P. Utilisation of tuna condensate waste from the canning industry as a novel substrate for polyhydroxyalkanoate production. Biomass Convers Biorefin 2020;11:2053-64. https://doi.org/10.1007/s13399-019-00581-4

23. Alves AA, Siqueira EC, Barros MP, Silva PE, Houllou LM. Polyhydroxyalkanoates: A review of microbial production and technology application. Int J Environ Sci Technol 2022;20:3409-20. https://doi.org/10.1007/s13762-022-04213-9

24. Jariyasakoolroj P, Leelaphiwat P, Harnkarnsujarit N. Advances in research and development of bioplastic for food packaging. J Sci Food Agric 2019;100:5032-45. https://doi.org/10.1002/jsfa.9497

25. Shruti VC, Kutralam-Muniasamy G. Bioplastics: Missing link in the era of Microplastics. Sci Total Environ 2019;697:134139. https://doi.org/10.1016/j.scitotenv.2019.134139

26. Mozejko-Ciesielska J, Mostek A. A 2D-DIGE-based proteomic analysis brings new insights into cellular responses of Pseudomonas putida KT2440 during polyhydroxyalkanoates synthesis. Microb Cell Fact 2019;18:93. https://doi.org/10.1186/s12934-019-1146-5

27. Park JM, Kim TY, Lee SY. Genome-scale reconstruction and in silico analysis of the Ralstonia eutropha H16 for polyhydroxyalkanoate synthesis, lithoautotrophic growth, and 2-methyl citric acid production. BMC Syst Biol 2011;5:101. https://doi.org/10.1186/1752-0509-5-101

28. Pearcy N, Garavaglia M, Millat T, Gilbert JP, Song Y, Hartman H, et al. A genome-scale metabolic model of Cupriavidus necator H16 integrated with TraDIS and transcriptomic data reveals metabolic insights for biotechnological applications. PLoS Comput Biol 2022;18:1-35:e1010106. https://doi.org/10.1371/journal.pcbi.1010106

29. Pérez-Rivero C, López-Gómez JP, Roy I. A sustainable approach for the downstream processing of bacterial polyhydroxyalkanoates: State-of-the-art and latest developments. Biochem Eng J 2019;150:107283. https://doi.org/10.1016/j.bej.2019.107283

30. Zainab-L I, Sudesh K. High cell density culture of Cupriavidus necator H16 and improved biological recovery of polyhydroxyalkanoates using mealworms. J Biotechnol 2019;305:35-42. https://doi.org/10.1016/j.jbiotec.2019.09.001

31. Bocaz-Beltrán J, Rocha S, Pinto-Ibieta F, Ciudad G, Cea M. Novel alternative recovery of polyhydroxyalkanoates from mixed microbial cultures using microwave-assisted extraction. J Chem Technol Biotechnol 2021;96:2596-603. https://doi.org/10.1002/jctb.6802

32. Favaro L, Basaglia M, Casella S. Improving polyhydroxyalkanoate production from inexpensive carbon sources by genetic approaches: A review. Biofuel Bioprod Biorefin 2019;13:208-27. https://doi.org/10.1002/bbb.1944

33. Koller M, Braunegg G. Biomediated production of structurally diverse poly( hydroxyalkanoates) from surplus streams of the animal processing industry. Polimery Polymers 2015;60:298-308. https://doi.org/10.14314/polimery.2015.298

34. Koller M, Braunegg G. Advanced approaches to produce polyhydroxyalkanoate (PHA) biopolyesters in a sustainable and economic fashion. Eurobiotech J 2018;2:89-103. https://doi.org/10.2478/ebtj-2018-0013

35. Peregrina A, Martins-Lourenço J, Freitas F, Reis MAM, Arraiano CM. Post-transcriptional control in the regulation of polyhydroxyalkanoates synthesis. Life (Basel) 2021;11:853. https://doi.org/10.3390/life11080853

36. Szacherska K, Oleskowicz-Popiel P, Ciesielski S, Mozejko-Ciesielska J. Volatile fatty acids as carbon sources for polyhydroxyalkanoates production. Polymers (Basel) 2021;13:321. https://doi.org/10.3390/polym13030321

37. Vigneswari S, Noor MS, Amelia TS, Balakrishnan K, Adnan A, Bhubalan K, et al. Recent advances in the biosynthesis of polyhydroxyalkanoates from lignocellulosic feedstocks. Life (Basel) 2021;11:807. https://doi.org/10.3390/life11080807

38. Cao JS, Xu RZ, Luo JY, Feng Q, Fang F. Rapid quantification of intracellular polyhydroxyalkanoates via fluorescence techniques: A critical review. Bioresour Technol 2022;350:126906. https://doi.org/10.1016/j.biortech.2022.126906

39. Ramírez-Malule H, Quiñones-Murillo DH, Manotas-Duque D. Emerging contaminants as global environmental hazards. A bibliometric analysis. Emerg Contam 2020;6:179-93. https://doi.org/10.1016/j.emcon.2020.05.001

40. Sanchez-Ledesma LM, Ramírez-Malule H, Rodríguez-Victoria JA. Volatile fatty acids production by acidogenic fermentation of wastewater: A bibliometric analysis. Sustainability 2023;15:2370. https://doi.org/10.3390/su15032370

41. van Eck NJ, Waltman L. Software survey: VOSviewer, a computer program for bibliometric mapping. Scientometrics 2010;84:523-38. https://doi.org/10.1007/s11192-009-0146-3

42. OECD. Policies for Bioplastics in the Context of a Bioeconomy. France: OECD; 2013.

43. Cavalheiro JM, de Almeida MC, Grandfils C, da Fonseca MM. Poly(3-hydroxybutyrate) production by Cupriavidus necator using waste glycerol. Process Biochem 2009;44:509-15. https://doi.org/10.1016/j.procbio.2009.01.008

44. Pohlmann A, Fricke WF, Reinecke F, Kusian B, Liesegang H, Cramm R, et al. Genome sequence of the bioplastic-producing “Knallgas” bacterium Ralstonia eutropha H16. Nat Biotechnol 2006;24:1257-62. https://doi.org/10.1038/nbt1244

45. Harding KG, Dennis JS, von Blottnitz H, Harrison ST. Environmental analysis of plastic production processes: Comparing petroleum-based polypropylene and polyethylene with biologically-based poly-β-hydroxybutyric acid using life cycle analysis. J Biotechnol 2007;130:57-66. https://doi.org/10.1016/j.jbiotec.2007.02.012

46. Akiyama M, Tsuge T, Doi Y. Environmental life cycle comparison of polyhydroxyalkanoates produced from renewable carbon resources by bacterial fermentation. Polym Degrad Stab 2003;80:183-94. https://doi.org/10.1016/S0141-3910(02)00400-7

47. Kahar P, Tsuge T, Taguchi K, Doi Y. High yield production of polyhydroxyalkanoates from soybean oil by Ralstonia eutropha and its recombinant strain. Polym Degrad Stab 2004;83:79-86. https://doi.org/10.1016/S0141-3910(03)00227-1

48. Castilho LR, Mitchell DA, Freire DM. Production of polyhydroxyalkanoates (PHAs) from waste materials and by-products by submerged and solid-state fermentation. Bioresour Technol 2009;100:5996-6009. https://doi.org/10.1016/j.biortech.2009.03.088

49. Jung YK, Kim TY, Park SJ, Lee SY. Metabolic engineering of Escherichia coli for the production of polylactic acid and its copolymers. Biotechnol Bioeng 2010;105:161-71. https://doi.org/10.1002/bit.22548

50. Slater S, Houmiel L, Tran M, Mitsky A, Taylor B, Padgette R, Gruys J. Multiple β-ketothiolases mediate poly (β-hydroxyalkanoate) copolymer synthesis in Ralstonia eutropha. J Bacteriol 1998;180:1979-87. https://doi.org/10.1128/JB.180.8.1979-1987.1998

51. Fukui T, Doi Y. Eficient production of polyhydroxyalkanoates from plant oils by Alcaligenes eutrophus and its recombinant strain. Appl Microbiol Biotechnol 1998;49:333-6. https://doi.org/10.1007/s002530051178

52. Sim SJ, Snell KD, Hogan SA, Stubbe J, Rha C, Sinskey AJ. PHA synthase activity controls the molecular weight and polydispersity of polyhydroxybutyrate in vivo. Nat Biotechnol 1996;15:63-7. https://doi.org/10.1038/nbt0197-63

53. Yu J, Stahl H. Microbial utilization and biopolyester synthesis of bagasse hydrolysates. Bioresour Technol 2008;99:8042-8. https://doi.org/10.1016/j.biortech.2008.03.071

54. Liu C, Colón BC, Ziesack M, Silver PA, Nocera DG. Water splitting-biosynthetic system with CO2 reduction efficiencies exceeding photosynthesis. Science 2016;352:1206-10. https://doi.org/10.1126/science.aaf5039

55. Richardson DJ. Bacterial respiration: A flexible process for a changing environment. Microbiology (Reading) 2000;146:551-71. https://doi.org/10.1099/00221287-146-3-551

56. Steen EJ, Chan R, Prasad N, Myers S, Petzold CJ, Redding A, et al. Metabolic engineering of Saccharomyces cerevisiae for the production of n-butanol. Microb Cell Fact 2008;7:36. https://doi.org/10.1186/1475-2859-7-36

57. Franke S, Grass G, Rensing C, Nies DH. Molecular analysis of the copper-transporting efflux system CusCFBA of Escherichia coli. J Bacteriol 2003;185:3804-12. https://doi.org/10.1128/JB.185.13.3804-3812.2003

58. Vandamme P, Coenye T. Taxonomy of the genus Cupriavidus: A tale of lost and found. Int J Syst Evol Microbiol 2004;54:2285-9. https://doi.org/10.1099/ijs.0.63247-0

59. Koller M, Maršálek L, de Sousa Dias MM, Braunegg G. Producing microbial polyhydroxyalkanoate (PHA) biopolyesters in a sustainable manner. N Biotechnol 2017;37:24-38. https://doi.org/10.1016/j.nbt.2016.05.001

60. Chang MC, Keasling JD. Production of isoprenoid pharmaceuticals by engineered microbes. Nat Chem Biol 2006;2:674-81. https://doi.org/10.1038/nchembio836

61. Fritsch J, Scheerer P, Frielingsdorf S, Kroschinsky S, Friedrich B, Lenz O, et al. The crystal structure of an oxygen-tolerant hydrogenase uncovers a novel iron-sulphur centre. Nature 2011;479:249-53. https://doi.org/10.1038/nature10505

62. Guleria S, Singh H, Sharma V, Bhardwaj N, Arya SK, Puri S, et al. Polyhydroxyalkanoates production from domestic waste feedstock: A sustainable approach towards bio-economy. J Clean Prod 2022;340:130661. https://doi.org/10.1016/j.jclepro.2022.130661

63. Pinto J, Boavida-Dias R, Matos HA, Azevedo J. Analysis of the food loss and waste valorisation of animal by-products from the retail sector. Sustainability 2022;14:2830. https://doi.org/10.3390/su14052830

64. Saad V, Gutschmann B, Grimm T, Widmer T, Neubauer P, Riedel SL. Low-quality animal by-product streams for the production of PHA-biopolymers: Fats, fat/protein-emulsions and materials with high ash content as low-cost feedstocks. Biotechnol Lett 2021;43:579-87. https://doi.org/10.1007/s10529-020-03065-y

65. Gutschmann B, Maldonado Simões M, Schiewe T, Schröter ES, Münzberg M, Neubauer P, et al. Continuous feeding strategy for polyhydroxyalkanoate production from solid waste animal fat at laboratory- and pilot-scale. Microb Biotechnol 2022;16:295-306. https://doi.org/10.1111/1751-7915.14104

66. Riedel SL, Jahns S, Koenig S, Bock MC, Brigham CJ, Bader J, et al. Polyhydroxyalkanoates production with Ralstonia eutropha from low quality waste animal fats. J Biotechnol 2015;214:119-27. https://doi.org/10.1016/j.jbiotec.2015.09.002

67. Bhatia SK, Kim JH, Kim MS, Kim J, Hong JW, Hong YG, et al. Production of (3-hydroxybutyrate-co-3-hydroxyhexanoate) copolymer from coffee waste oil using engineered Ralstonia eutropha. Bioprocess Biosyst Eng 2018;41:229-35. https://doi.org/10.1007/s00449-017-1861-4

68. Dionisi D, Carucci G, Petrangeli Papini M, Riccardi C, Majone M, Carrasco F. Olive oil mill effluents as a feedstock for production of biodegradable polymers. Water Res 2005;39:2076-84. https://doi.org/10.1016/j.watres.2005.03.011

69. Li D, Gao M, Qiu Y, Su Y, Ma X, Wang F, et al. Strategy for economical and enhanced polyhydroxyalkanoate production from synergistic utilization of palm oil and derived wastewater by activated sludge. Bioresour Technol 2019;53:1748-65.

70. Ng KS, Wong YM, Tsuge T, Sudesh K. Biosynthesis and characterization of poly(3-hydroxybutyrate-co-3- hydroxyvalerate) and poly(3-hydroxybutyrate-co-3-hydroxyhexanoate) copolymers using Jatropha oil as the main carbon source. Process Biochem 2011;46:1572-8. https://doi.org/10.1016/j.procbio.2011.04.012

71. Volova T, Demidenko A, Kiselev E, Baranovskiy S, Shishatskaya E, Zhila N. Polyhydroxyalkanoate synthesis based on glycerol and implementation of the process under conditions of pilot production. Appl Microbiol Biotechnol 2019;103:225-37. https://doi.org/10.1007/s00253-018-9460-0

72. Lee HS, Lee SM, Park SL, Choi TR, Song HS, Kim HJ, et al. Tung oil-based production of high 3-hydroxyhexanoate-containing terpolymer poly(3-hydroxybutyrate-co-3-hydroxyvalerate-co-3-hydroxyhexanoate) using engineered Ralstonia eutropha. Polymers (Basel) 2021;13:1084. https://doi.org/10.3390/polym13071084

73. Park SJ, Jang YA, Lee H, Park AR, Yang JE, Shin J, et al. Metabolic engineering of Ralstonia eutropha for the biosynthesis of 2-hydroxyacid-containing polyhydroxyalkanoates. Metab Eng 2013;20:20-8. https://doi.org/10.1016/j.ymben.2013.08.002

74. Jo SY, Sohn YJ, Park SY, Son J, Yoo JI, Baritugo KA, et al. Biosynthesis of polyhydroxyalkanoates from sugarcane molasses by recombinant Ralstonia eutropha strains. Korean J Chem Eng 2021;38:1452-9. https://doi.org/10.1007/s11814-021-0783-7

75. Annamalai N, Sivakumar N. Production of polyhydroxybutyrate from wheat bran hydrolysate using Ralstonia eutropha through microbial fermentation. J Biotechnol 2016;237:13-7. https://doi.org/10.1016/j.jbiotec.2016.09.001

76. Lu X, Wang L, Yang Z, Lu H. Strategies of polyhydroxyalkanoates modification for the medical application in neural regeneration/nerve tissue engineering. Adv Biosci Biotechnol 2013;4:731-40. https://doi.org/10.4236/abb.2013.46097

77. Bhatia SK, Yoon JJ, Kim HJ, Hong JW, Hong YG, Song HS, et al. Engineering of artificial microbial consortia of Ralstonia eutropha and Bacillus subtilis for poly(3-hydroxybutyrate-co-3- hydroxyvalerate) copolymer production from sugarcane sugar without precursor feeding. Bioresour Technol 2018b;257:92-101. https://doi.org/10.1016/j.biortech.2018.02.056

78. Silverio MS, Piccoli RA, dos Reis JL, Gomez JG, Baptista AS. Techno-economic feasibility of P(3-hydroxybutyrate) bioprocess with concentrated sugarcane vinasse as carbon and minerals source: An experimental and in silico approach. Biomass Convers Biorefin 2022;85:1-19. https://doi.org/10.1007/s13399-022-02710-y

79. Kiselev EG, Demidenko AV, Zhila NO, Shishatskaya EI, Volova TG. Sugar beet molasses as a potential C-substrate for PHA production by Cupriavidus necator. Bioengineering 2022;9:154. https://doi.org/10.3390/bioengineering9040154

80. Brojanigo S, Gronchi N, Cazzorla T, Wong TS, Basaglia M, Favaro L, et al. Engineering Cupriavidus necator DSM 545 for the one-step conversion of starchy waste into polyhydroxyalkanoates. Bioresour Technol 2022;347:126383. https://doi.org/10.1016/j.biortech.2021.126383

81. Brojanigo S, Parro E, Cazzorla T, Favaro L, Basaglia M, Casella S. Conversion of starchy waste streams into polyhydroxyalkanoates using Cupriavidus necator DSM 545. Polymers (Basel) 2020;12:1496. https://doi.org/10.3390/polym12071496

82. Alcaraz Zapata W, Acosta Cárdenas A, Villa Restrepo AF. Evaluation of polyhydroxyalkanoate (PHAs) production with a bacterial isolate using cassava flour hydrolysates as an alternative substrate. Dyna (Medellin) 2019;86:75-81. https://doi.org/10.15446/dyna.v86n208.72019

83. Moshood TD, Nawanir G, Mahmud F, Mohamad F, Ahmad MH, AbdulGhani A, et al. Green product innovation: A means towards achieving global sustainable product within biodegradable plastic industry. J Clean Prod 2022;363:132506. https://doi.org/10.1016/j.jclepro.2022.132506

84. Brooks A, Jambeck J, Mozo-Reyes E. Plastic Waste Management and Leakage in Latin America and the Caribbean. United States: Inter-American Development Bank; 2020. https://doi.org/10.18235/0002873

85. International Trade Center. Trade Map; 2022. Available from: https://www.trademap.org/Index.aspx [Last accessed on 2023 Apr 01].

86. Rodríguez AG, Rodrigues M, Sotomayor O. Towards a Sustainable Bioeconomy in Latin America and the Caribbean: Elements for a Regional Vision. Available from: https://repositorio.cepal.org/bitstream/handle/11362/44994/1/S1901014_en.pdf [Last accessed on 2023 Apr 01].

87. Ospina León LJ, Manotas-Duque D, Ramírez-Malule H. Challenges and opportunities of the sugar cane vinasse. A bibliometric analysis. Ing y Compet 2023;25:1-21.

88. Bioökonomie DE. Colombia. Available from: https://biooekonomie.de/en/topics/in-depth-reports-worldwide/colombia#1 2021 [Last accessed on 2023 Mar 18].

Article Metrics
104 Views 109 Downloads 213 Total

Year

Month

Related Search

By author names

Similar Articles
